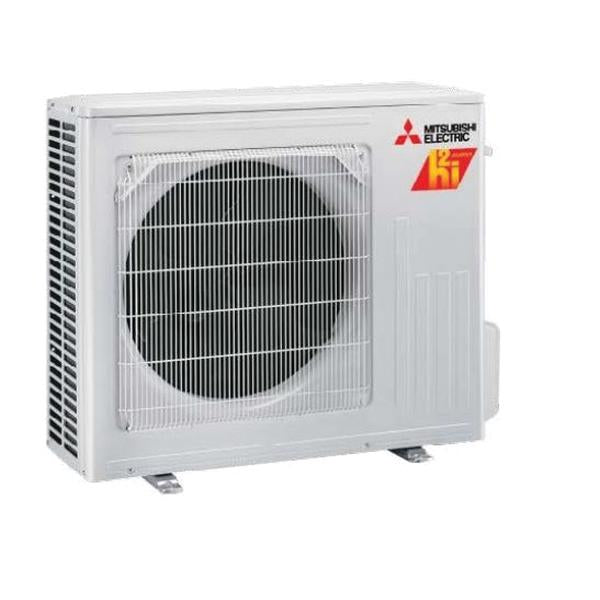

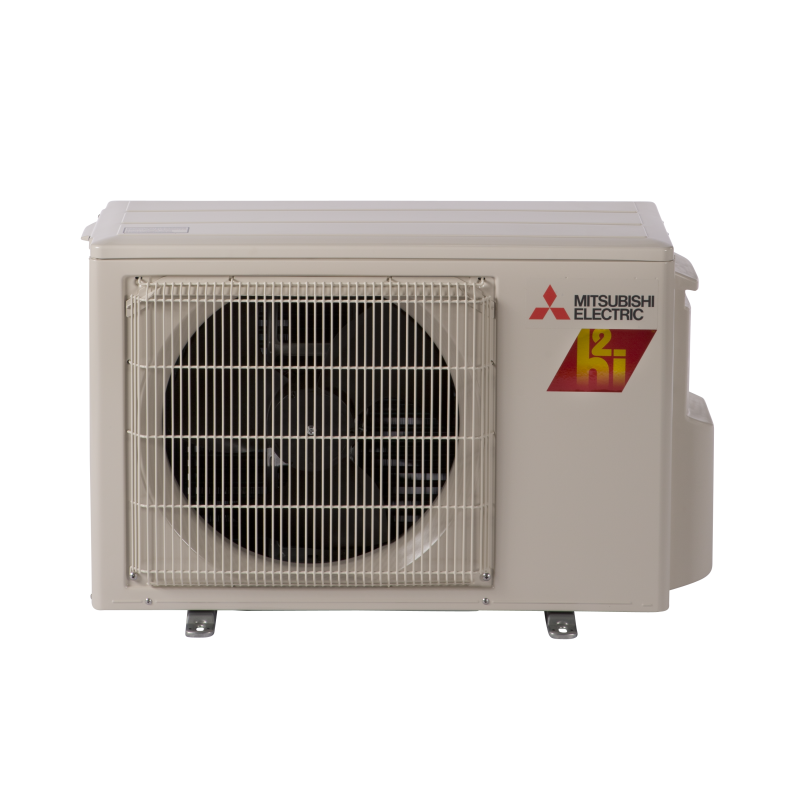

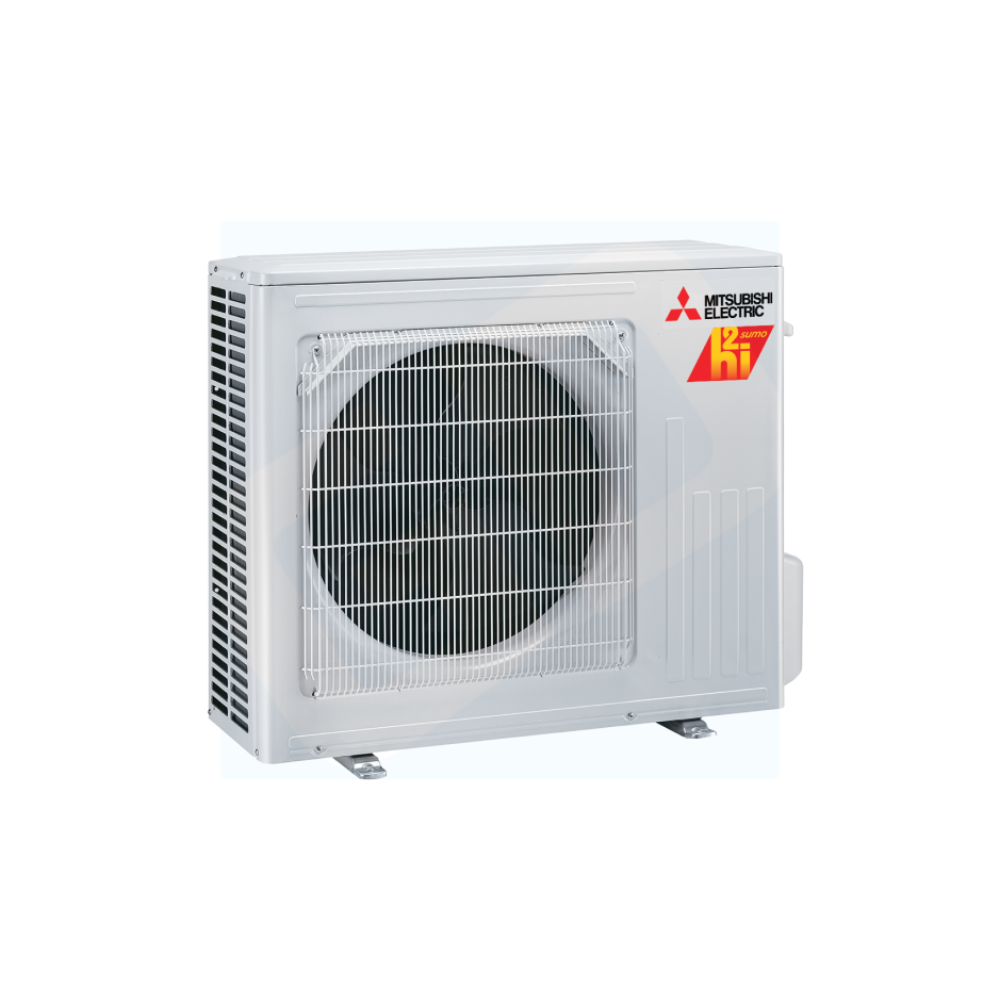

Mitsubishi Electric MUZ-FX15NLHZ FX-Series Single Zone Mini Split Hyper Heat Pump Condenser R454B 230V REPLACEMENT MUZ-FS15NAH-U1

Product Description

The MITSUBISHI ELECTRIC MUZ-FX15NLHZ is a high-performance outdoor unit designed for both cooling and heating applications. It operates with the MSZ-FX15NL indoor unit to provide reliable, year-round comfort in residential and commercial spaces. It delivers 100% heating capacity even at outdoor temperatures as low as -10°F, with guaranteed operation down to -22°F.

• Heat exchanger is treated with Blue Fin coating, which protects against corrosion.
• Operates at a sound level comparable to a typical conversation.
• ENERGY STAR® certified, indicating high energy efficiency and environmental friendliness.

Product Highlights

The MUZ-FX15NLHZ outdoor unit offers a blend of energy-efficient cooling and heating with reliable performance and a durable design that ensures long-term comfort in diverse climates.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX15NLHZ

Technical Specifications

• SKU: MUZ-FX15NLHZ
• Brand/Manufacturer: Mitsubishi
• Replaces: MUZ-FS15NAH-U1
• Cooling BTU: 19100
• Heating BTU: 28400
• Decibel Level (dBA): 55
• Refrigerant: R454B
• SEER2 (Efficiency): 25.9
• Compressor Type: Twin Rotary
• Liquid Valve Size: 1/4
• Suction Valve Size: 1/2
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 40
• Min. Breaker Size: 23
• BTU/Tonnage: 15,000 BTU/1.25 Ton
• Zone Compatibility: Single Zone
• Height: 34.58"
• Width: 33.06"
• Depth: 13"
• Unit Type: Outdoor Unit
• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Low Ambient Heat: Yes
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 1/2"
• Outdoor Unit: MUZ-FX15NLHZ-U1
• Cooling Capacity: up to 19,100 BTU
• Heating Capacity: up to 28,400 BTU
• Room Cooling/Heating Capacity: up to 650 sq ft
• Amperage Rating: 23 A
• Cooling BTU Rating: 3700 to 19100 Btu/hr
• Cooling CFM Rating: 2204 cfm
• Cooling Operating Temperature: 14 to 115 deg F
• Cooling Sound Level: 51 dBA
• Drive Type: Inverter
• EER Rating: 14.7
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• HSPF Rating: 11
• Heating BTU Rating: 5150 to 28400 Btu/hr
• Heating CFM Rating: 2440 cfm
• Heating Operating Temperature: -22 to 75 deg F
• Heating Sound Level: 55 dBA
• Liquid Line: 1/4 in
• Phase: 1 ph
• Power Rating: 2200 W Cooling, 2630 W Heating
• Refrigerant Type: R-454B
• SEER Rating: 25.9
• Series: MUZ-FX-NLHZ Series
• Suction Line: 1/2 in
• Voltage Rating: 208/230 V
