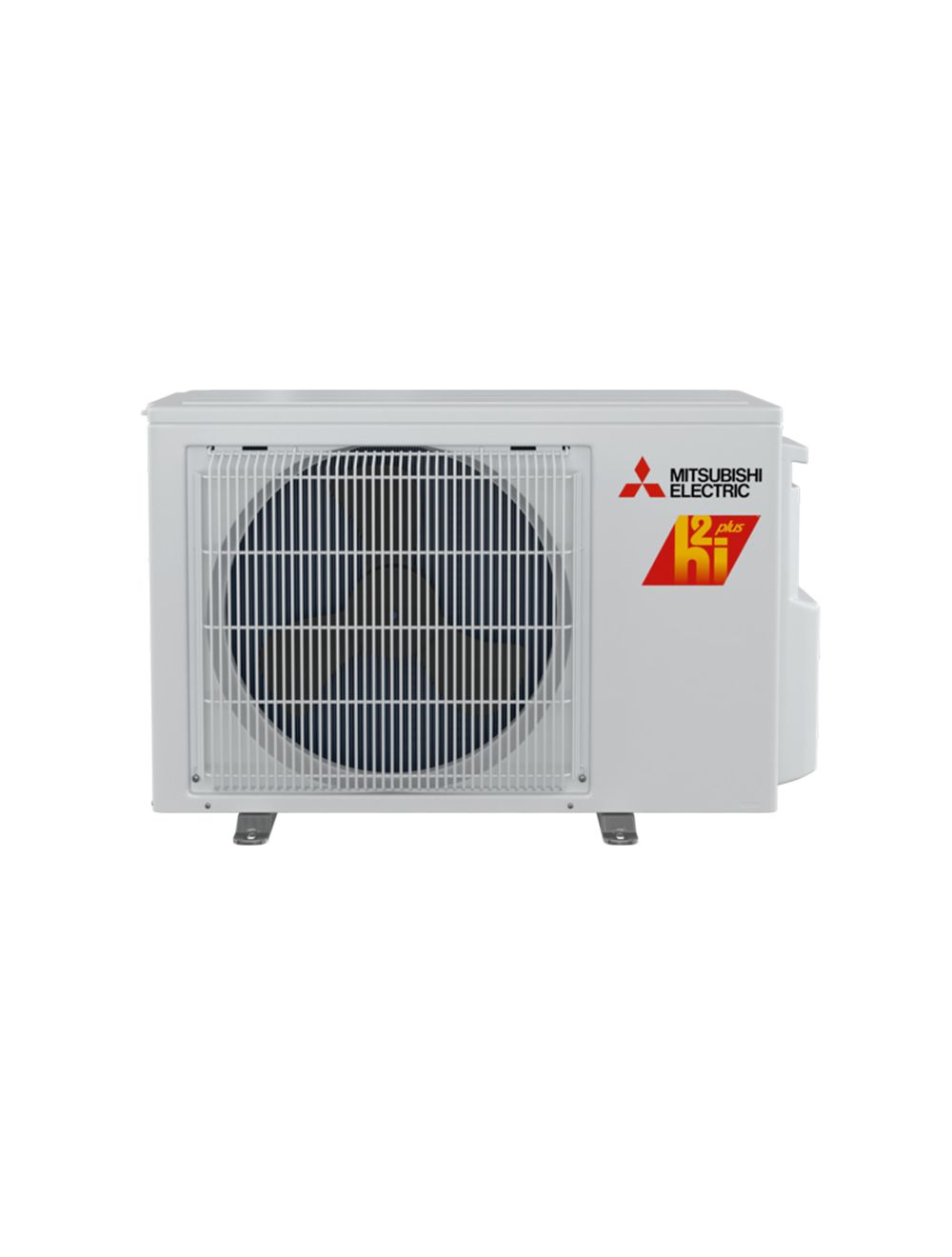

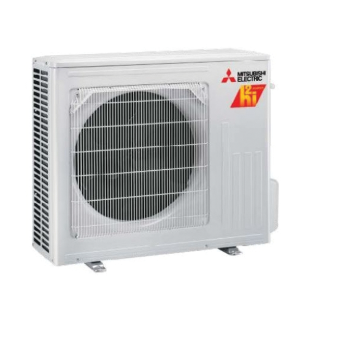

Mitsubishi Electric MUZ-FX12NLHZ R454B: 12,000 BTU HI-SEER HYPER HEAT CONDENSER

Product Description

The Mitsubishi Electric MUZ-FX12NLHZ is an R454B: 12,000 BTU HI-SEER HYPER HEAT CONDENSER. H2i sumo™ systems provide 100% heating capacity down to -10 Degrees Fahrenheit outdoor ambient temperature. Control your comfort with room-by-room control, a more efficient way to cool and heat your home or business. The MSZ-FX Series uses Triple Action Filtration which combines enzyme, deodorizing and hybrid filters.

• H2i sumo™ performance offers 100% heating capacity at -10 degrees and continues to provide heating in outdoor conditions as low as -22 degrees Fahrenheit.
• Advanced Filtration System
• 3D i-see Sensor

Product Highlights

This Mitsubishi Electric condenser features built-in Wi-Fi, precision temperature control, and a dual barrier coating. It also offers multiple fan speeds and hot-start technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX12NLHZ

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Outdoor Unit Size: 12000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 13200 BTU
• Maximum Sound Level: 44 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 29.9
• EER2: 15.4
• HSPF2: 12.4
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 14 Amps
• Recommended Breaker Size: 24 Amps
• Suction Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Weight: 120.4 Pounds
• Shipping Weight: 139.9 Pounds
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215611126
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Sound Level (Outdoor): 51 dB
• Maximum Line Length: 65 Feet
• Gas Connection Size (Outdoor): 3/8 Inch
• Liquid Connection Size (Outdoor): 1/4 Inch
• Product Height (Outdoor): 28 1/8 Inches
• Product Width (Outdoor): 31 1/2 Inches
• Product Depth (Outdoor): 11 1/4 Inches
• Product Weight (Outdoor): 89 Pounds
• Shipping Weight (Outdoor): 103.50 Pounds
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Dimensions: 31-1/2" W x 11-1/4" D x 28-1/8" H
