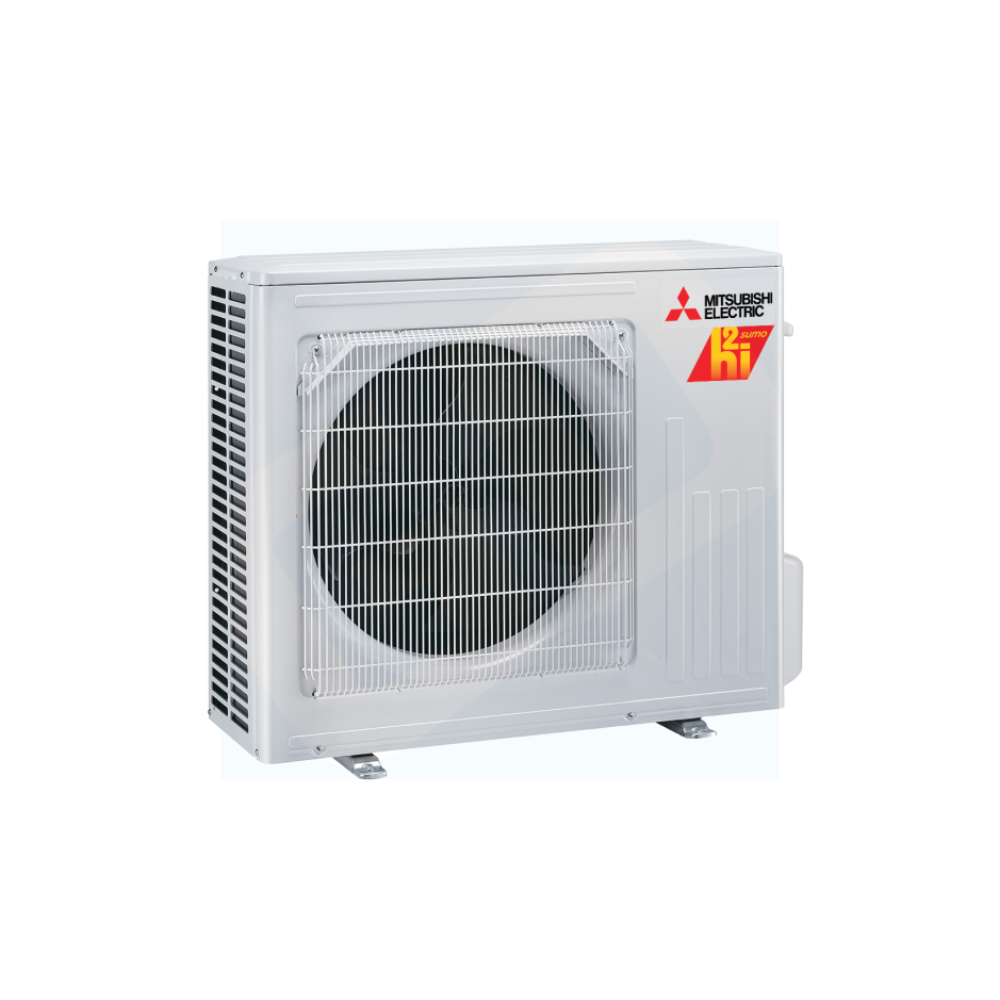

Mitsubishi Electric MUZ-FX09NLHZ R454B: 9,000 BTU HI-SEER HYPER HEAT CONDENSER

Product Description

The Mitsubishi Electric MUZ-FX09NLHZ is a 9,000 BTU HI-SEER hyper heat condenser using R454B refrigerant. This outdoor condenser is designed for single-zone mini split applications, delivering efficient heating and cooling. It features Hyper-Heat technology and is compatible with the Comfort app for smart control. Ideal for providing year-round comfort in various climates.

• Features H2i Hyper-Heating INVERTER technology for 100% heating capacity at -10°F and operation down to -22°F.
• Equipped with a Blue Fin Coating to protect against corrosion in coastal and industrial areas.
• Includes an integrated base pan heater to prevent condensate from freezing in frigid climates.

Product Highlights

This mini-split heat pump condenser provides efficient and reliable heating and cooling, even in extreme temperatures. It is designed for easy installation and long-lasting performance.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX09NLHZ

Technical Specifications

• Unit Type: Single Zone
• Product Line: FX Series
• Operating Mode: Heating and Cooling
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 9,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Outdoor Unit: MUZ-FX09NLHZ
• Remote Controller: Included
• SEER2: 33.1
• EER2: 18.35
• HSPF2: 13.3
• Heating Minimum Temp: -34 F
• Cooling Minimum Temp: -4 F
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 12000 BTU
• Maximum Sound Level: 49 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 14 Amps
• Recommended Breaker Size: 24 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 28 1/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Shipping Weight: 103.50 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Cooling Wattage: 1580 W
• Heating Wattage: 2130 W
• EER Rating: 18.35
• SEER: 33.1
• HSPF: 13.3
• Connection: Flared Connection
• Compressor: Twin Rotary Compressor
• Liquid Line: 1/4 in
• Suction Line: 3/8 in
• Fuse Rating: 15 A
• Drive: Inverter Drive
• Heating Sound Level: 49 dBA
• Cooling Sound Level: 49 dBA
• Heating Operating Temperature: -22 to 75 deg F
• Cooling Operating Temperature: 14 to 115 deg F
• Overall Length: 11-1/4 in
• Overall Width: 31-1/2 in
• Overall Height: 28-1/8 in
