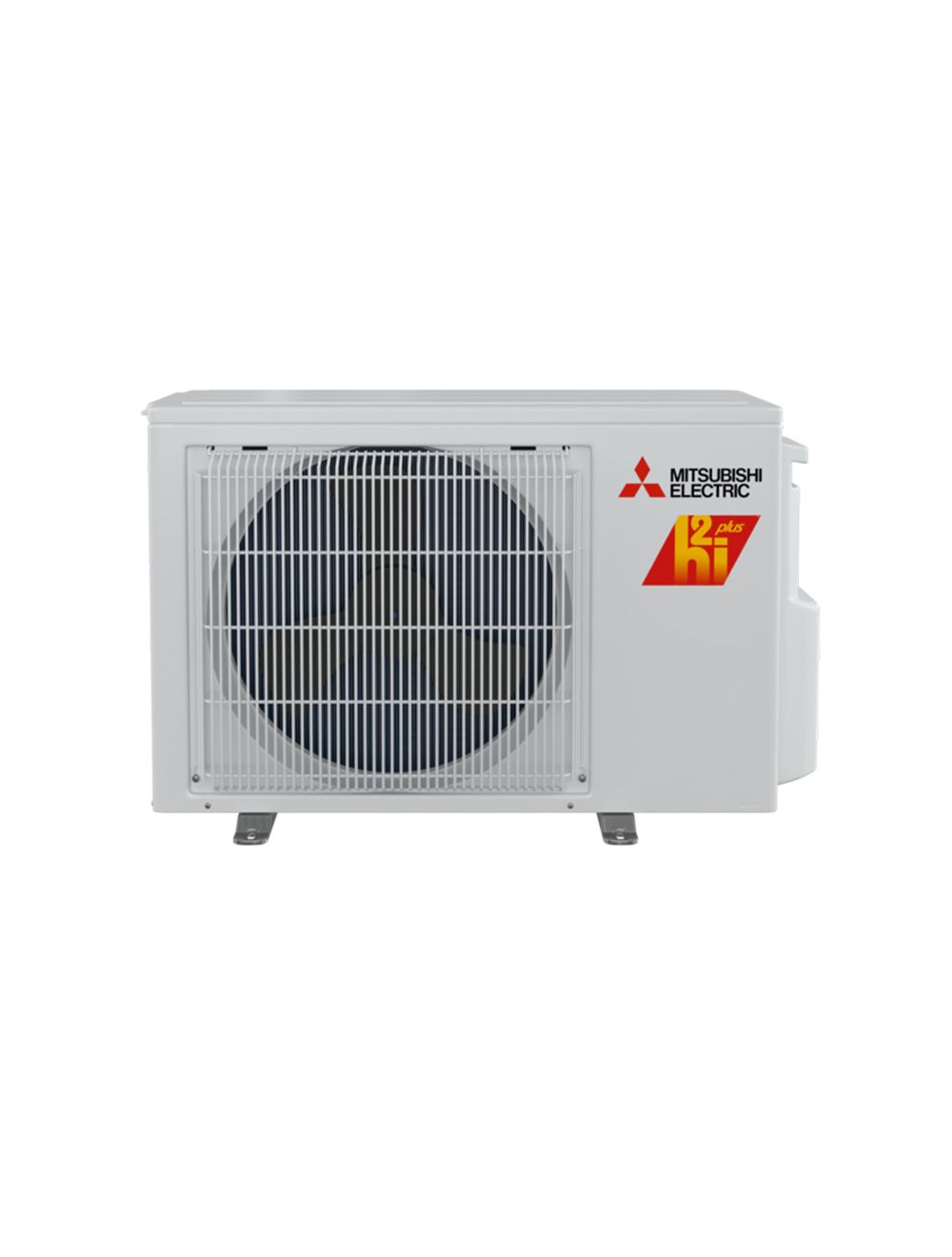

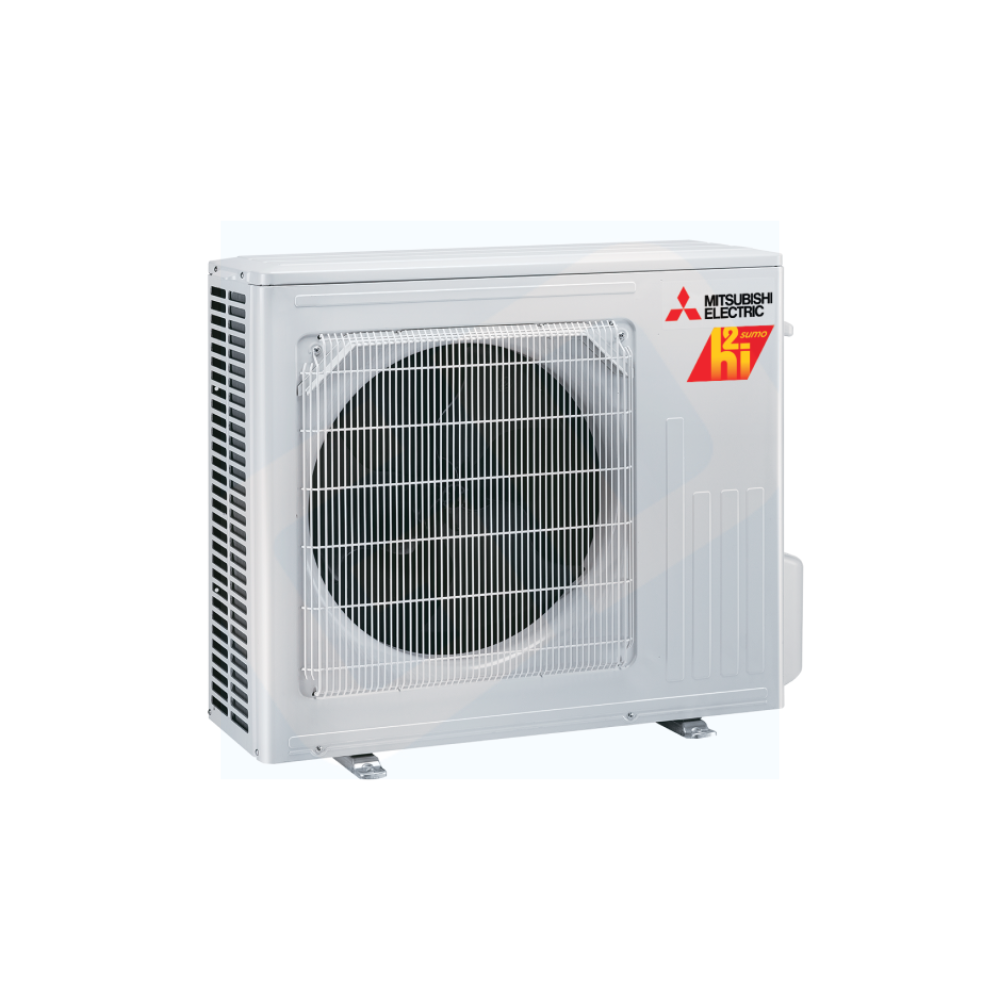

Mitsubishi Electric MUZ-FX06NLHZ R454B: 6,000 BTU HI-SEER HYPER HEAT CONDENSER

Product Description

The Mitsubishi Electric MUZ-FX06NLHZ is a R454B: 6,000 BTU HI-SEER HYPER HEAT CONDENSER. This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve for improved temperature accuracy and system efficiency. It provides 100% heating capacity down to -10 degrees Fahrenheit and continues to provide heating in outdoor conditions as low as -22 degrees Fahrenheit.

• Features H2i hyper-heating for single-zone mini split applications.
• Equipped with an integrated base pan heater to prevent condensate freezing.
• Offers precision temperature control technology.

Product Highlights

The MUZ-FX06NLHZ is designed for efficient heating and cooling, even in freezing climates, making it a reliable choice for year-round comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUZ-FX06NLHZ

Technical Specifications

• Type: Outdoor Condenser
• Product Line: M-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Cooling BTU: 6000
• Heating Capacity: 9000 BTU
• Maximum Sound Level: 48 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -22 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 20 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 28.125 Inches
• Product Width: 31.5 Inches
• Product Depth: 11.25 Inches
• Shipping Weight: 100 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• SEER2: 35.0
• EER2: 21.45
• HSPF2: 13
