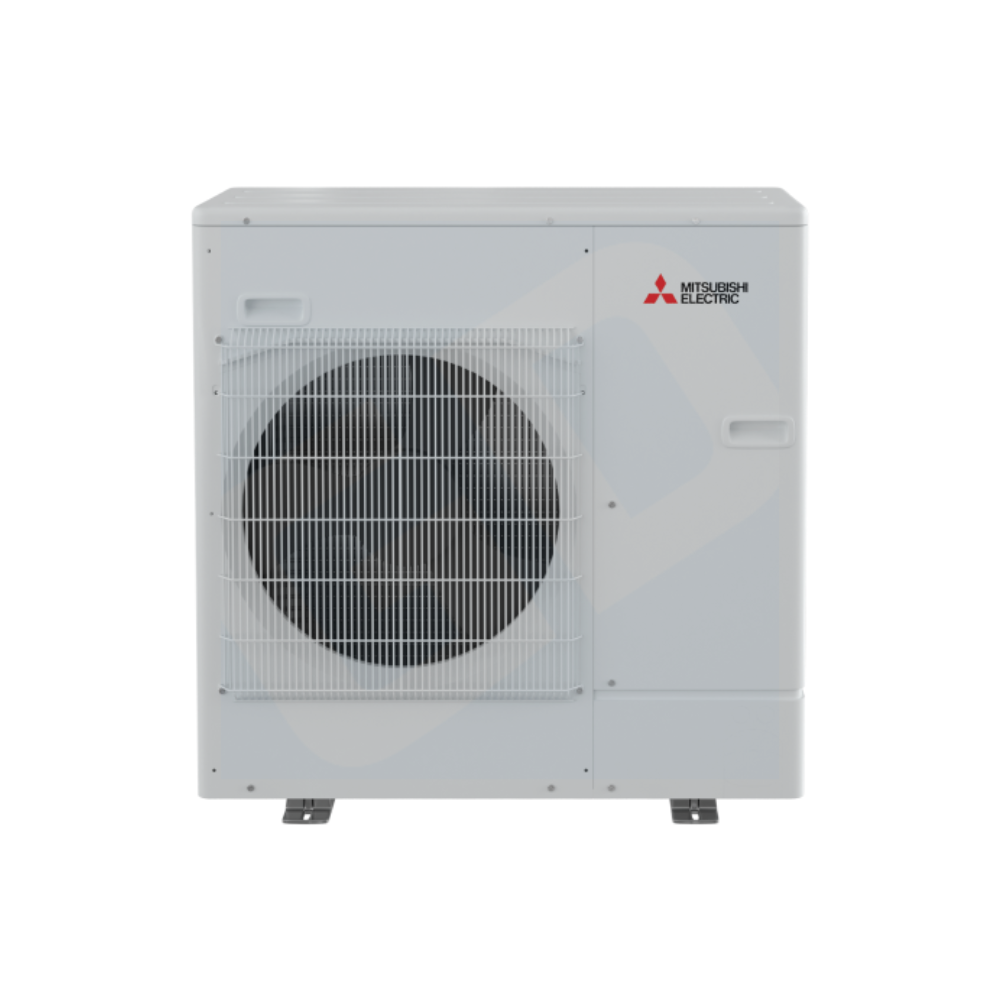

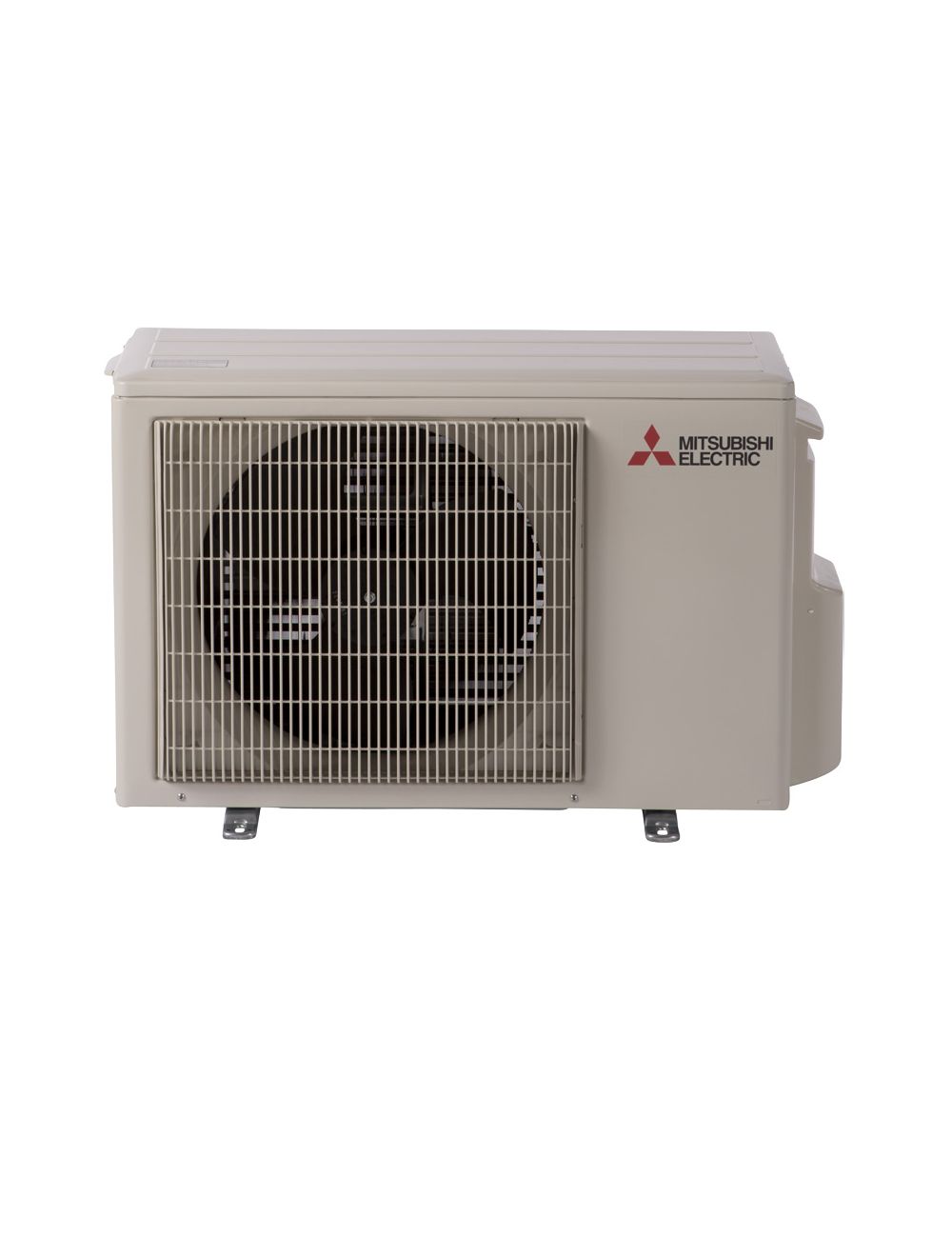

Mitsubishi Electric MUY-GX36NL GX-Series Cooling Only Outdoor Condenser 36000 BTU

Product Description

The Mitsubishi Electric MUY-GX36NL is an outdoor condenser designed for single-zone mini split applications, providing 36000 BTU of cooling. It features inverter technology and an electronic linear expansion valve for precise temperature control and system efficiency. The condenser is coated with an anti-rust coating to extend its lifespan.

• Precision Temperature Control Technology
• Blue Fin Condenser
• Inverter technology

Product Highlights

This single-zone outdoor condenser provides efficient and quiet cooling with advanced temperature control and a durable, anti-rust coated design.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MUY-GX36NL

Technical Specifications

• Condition: New
• Type: Outdoor Condenser
• Product Line: GX-Series
• Product Category: Mini Split System Components
• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling BTU: 36000
• Cooling Capacity: 33800 BTU
• Maximum Sound Level: 57 dB
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Maximum Line Length: 100 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• Shipping Weight: 135 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Unit Type: Single Zone
• Number of Zones: 1
• System Capacity: 36,000 BTU
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Outdoor Unit: MUY-GX36NL
• Remote Controller Included: Yes
• SEER2: 18.5
• EER2: 8.4
• HSPF2: N/A
• Cooling Minimum Temp: -1 F
• DOE Regional Compliance: Nationwide
• Energy Star Listed: Yes
• AHRI Reference Number: 215862734
• Remote Control: Wireless
• Model Number: MUY-GX36NL
• Dimensions: 33-1/16" W x 13" D x 34-5/8" H
• Maximum Air Flow: 765 CFM
• Minimum Air Flow: 292 CFM
• Minimum Sound Level: 30 dB
