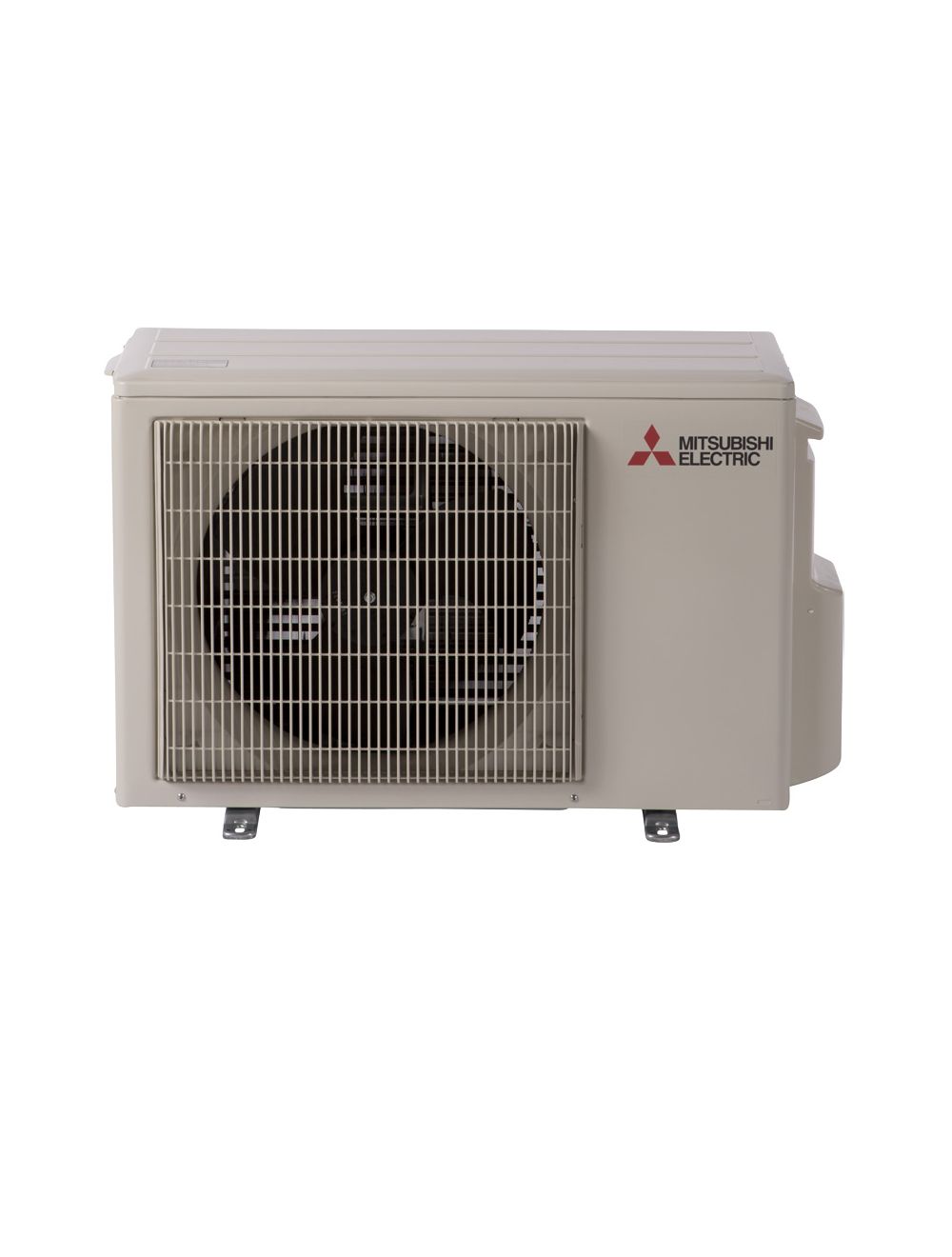

Mitsubishi Electric MUY-GX24NL Cooling Only Outdoor Condenser

Product Description

The Mitsubishi Electric MUY-GX24NL is a cooling-only outdoor condenser designed for effective use with single-zone mini-split systems. This unit delivers a robust twenty-four thousand BTU cooling capacity utilizing R-454B refrigerant for enhanced efficiency.

• Cools a single zone with twenty-four thousand BTUs.
• Utilizes eco-friendly R-454B refrigerant.
• Protected by Blue Fin coating against corrosion.

Product Highlights

Offers precise temperature control while ensuring long-term durability and reliability.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUY-GX24NL

Technical Specifications

• Product Line: GX Series
• Operating Mode: Cooling Only
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Maximum Line Length: 100 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 34 5/8 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 13 Inches
• Product Weight: 116 Pounds
• Maximum Sound Level: 55 dB
• ETL Listed: Yes
• AHRI Certified: Yes
