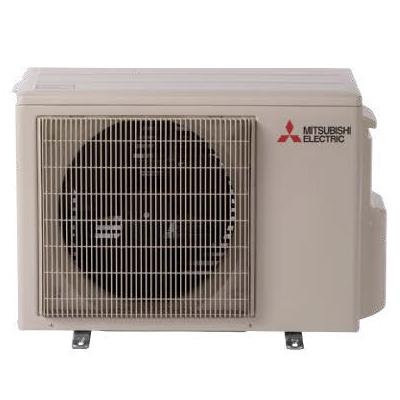

Mitsubishi Electric muy-gx09nl-u1 Outdoor Unit 9000 Btu/h

Product Description

The MITSUBISHI ELECTRIC muy-gx09nl-u1 is a 9,000 BTU/h cooling-only outdoor condensing unit designed for single-zone mini-split applications. It operates on R454B refrigerant, a lower-GWP alternative to R410A, and uses an inverter-driven compressor to modulate capacity and hold the set point without constant cycling. The outdoor unit supplies power to the indoor air handler, eliminating the need for a separate indoor power circuit. Licensed HVAC technicians install and commission this equipment in residential and light commercial settings.

This unit is suited for single-zone cooling installations where a compact, wall-mounted or ceiling-cassette indoor head is paired with a dedicated outdoor condensing unit. The inverter compressor makes it well matched to rooms or zones requiring consistent temperature control with reduced energy swings. The Blue Fin anti-corrosion coating on the aluminum heat exchanger fins expands its viable install locations to include coastal and industrial environments where salt air or sulfur compounds would degrade an uncoated coil over time.

Key Features

• Inverter-driven compressor modulates output to maintain set-point temperature without short-cycling
• R454B refrigerant with lower global warming potential compared to R410A
• Blue Fin coating on outdoor heat exchanger fins resists corrosion from salt, sulfur, and airborne contaminants
• Outdoor unit powers the indoor unit, with automatic restart after a power outage
• Cooling-only configuration for climates or applications where heating is handled separately

Compatibility

Designed as an OEM outdoor condensing unit for use with a compatible Mitsubishi Electric single-zone indoor air handler; consult Mitsubishi Electric submittal documentation for approved indoor unit pairings before ordering.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician familiar with R454B handling requirements. Disconnect and lock out all power before making any electrical or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for outdoor disconnect placement and minimum clearances specified in the equipment installation manual. Do not mix refrigerant types or reuse existing lineset without verifying it is rated and clean for R454B service.

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Refrigerant: R454B
• Compressor Type: Inverter-driven
• Heat Exchanger Coating: Blue Fin anti-corrosion coating
• Configuration: Cooling only

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: muy-gx09nl-u1
