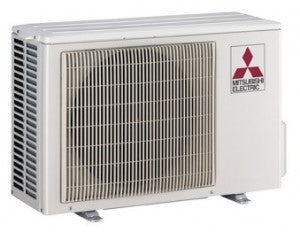

Mitsubishi Electric MUY-GE15NA2 Mini Split Outdoor Condenser Air Conditioning 15,000 BTU

Mitsubishi Electric MUY-GE15NA2 Mini Split Outdoor Condenser Air Conditioning 15,000 BTU

Description:
MUY-GE15NA2 is a slim and compact unit housing INVERTER-driven compressor, featuring quiet operation, Pulse Amplitude Modulation (PAM), A-control connection, auto cool/heat changeover. GE-models available in air conditioner (cooling only) and heat pump (cooling and heating) single-zone configuration (an outdoor unit can be connected to one matching indoor unit). Both, straight air conditioning and heat pump configurations adopt HFC refrigerant (R410A) which does not destroy the ozone layer.

Specifications:
Cooling Capacity BTU/h: 3,100 - 14,000
Operating Range Cooling, F: 14 - 115
SEER : 21
Power Supply Voltage/Frequency/Phase: 208-230/60/1
Maximin Fuze Size (Amp): 15
Refrigerant Piping Max Ht. Difference (ft.): 40
Refrigerant Piping Max Total Length Each (ft.): 65
Refrigerant Piping Max Combined Total Length (ft.): 65
Discharge Vapor Line (O.D.) inches, Flare: 1/4
Suction (O.D.) inches: 1/2
Refrigerant Type: 410A
Outdoor Unit Noise Level db (A) Cooling : 49
Otdoor Unit Weight (Lbs): 80
Outdoor Unit Dimensions Hx
Wx
D (Inches): 21-5/8 x 31-1/2 x 11-1/4
