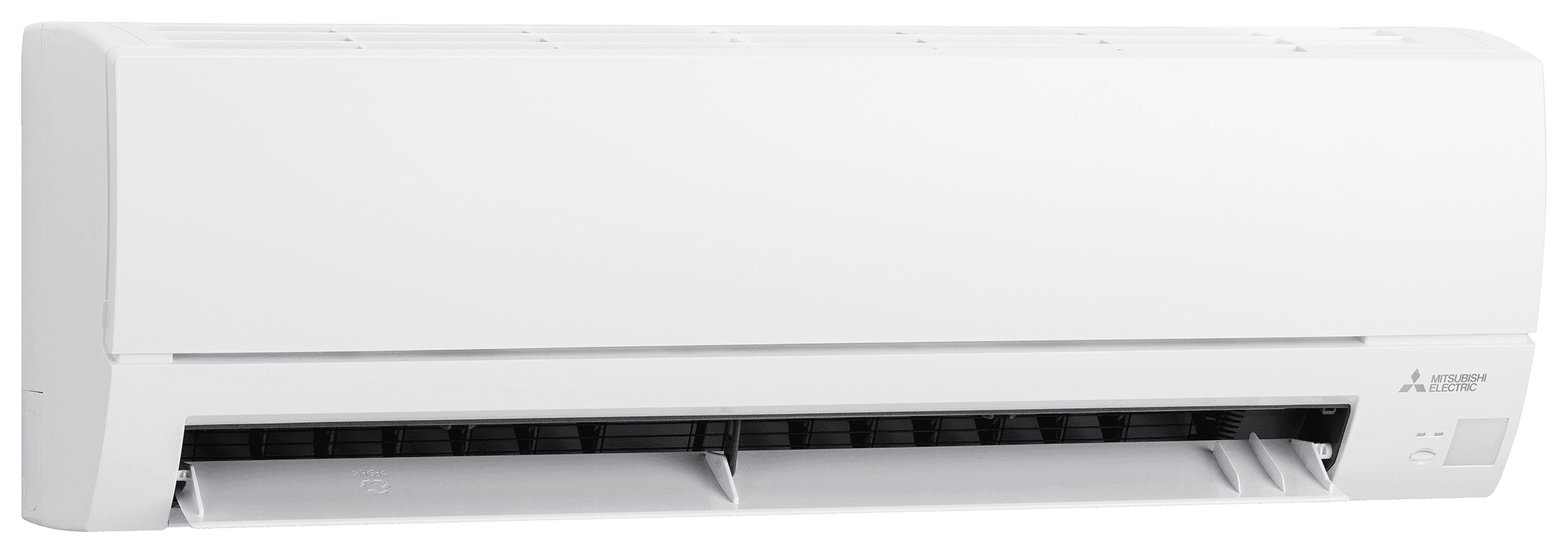

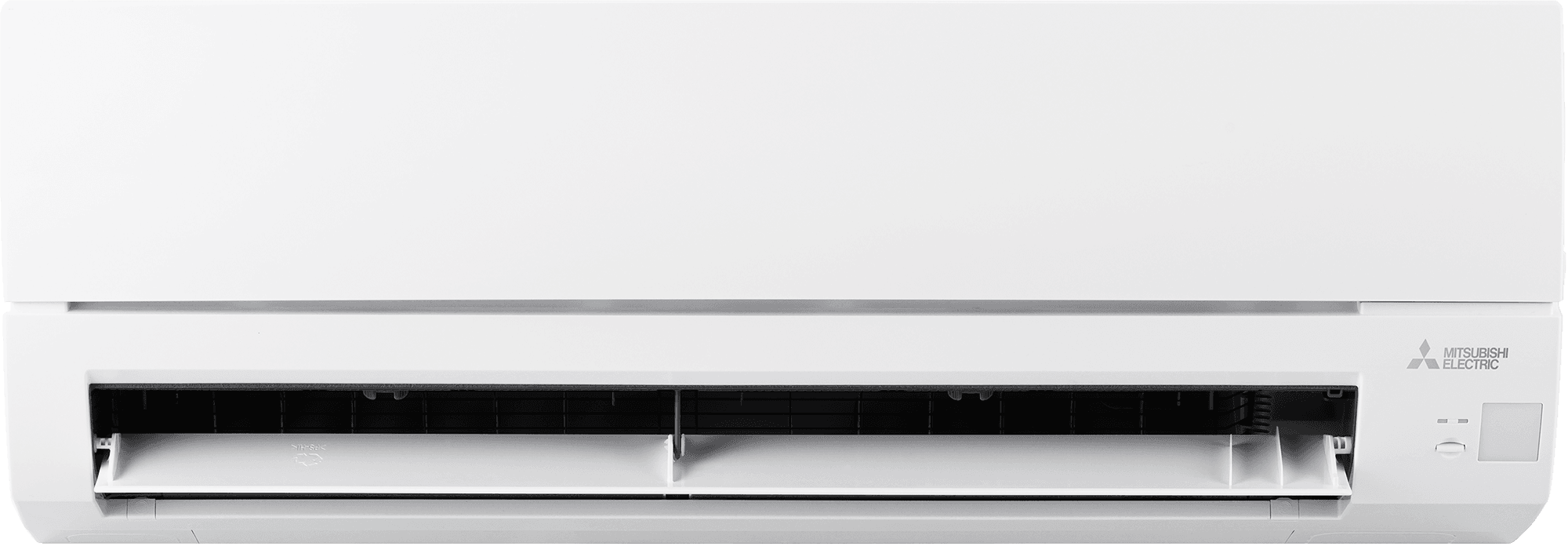

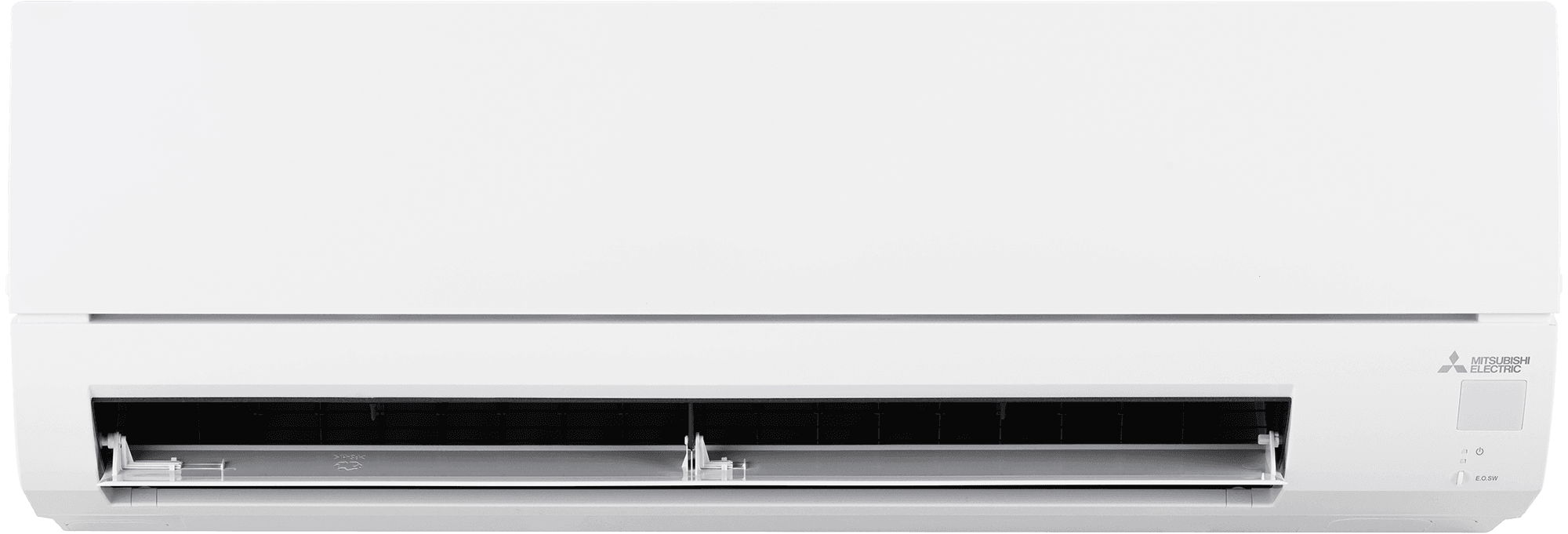

Mitsubishi Electric MSZ-WX24NL R454B: 24,000 BTU WX-Series Heat Pump AHU

Product Description

The Mitsubishi Electric MSZ-WX24NL is an R454B 24,000 BTU WX-Series heat pump AHU. Designed for single-zone systems, this wall-mounted indoor unit provides personalized, energy-efficient comfort. It features customizable settings and advanced features, complementing various decors with its stylish flat panel design. The unit ensures quiet operation and easy installation with a convenient mounting plate.

• Econo Cool adjusts airflow to maintain comfort while using less energy.
• Nano Platinum Filter reduces the presence of certain nonliving particles and deodorizes air.
• Swing Mode moves air throughout the room like an oscillating fan.

Product Highlights

The MSZ-WX24NL offers efficient heating and cooling with advanced filtration and multiple vane control options for optimal comfort.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-WX24NL

Technical Specifications

• Series: M-Series
• Type: Wall-mounted
• Model: MSZ-WX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 22 dB(A)
• SEER2: Up to 18
• HSPF2: Up to 8.5
• Refrigerant: R454B
• Capacity: 24,000 BTU/H
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Cooling BTU: 24000
• Cooling Capacity: 22400 BTU
• Heating Capacity: 26000 BTU
• Moisture Removal: 6.1 Pints/Hour
• Maximum Air Flow: 698 CFM
• Minimum Air Flow: 290 CFM
• Minimum Sound Level: 32 dB
• Maximum Sound Level: 50 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 36.3125 Inches
• Product Depth: 10.3125 Inches
• Product Weight: 28 Pounds
• Shipping Weight: 32 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
