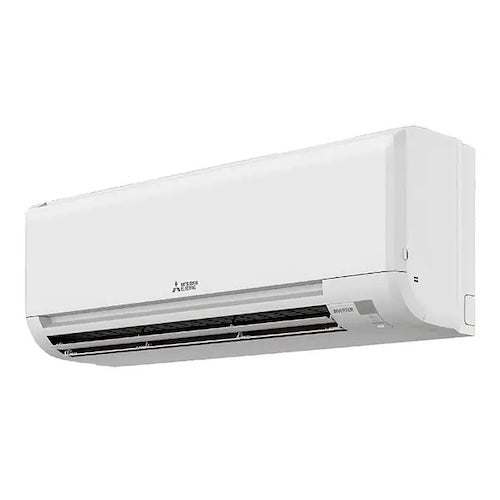

Mitsubishi Electric MSZ-WX09NL R454B 9,000 BTU WX-SERIES HEAT PUMP AHU

Product Description

The MITSUBISHI ELECTRIC MSZ-WX09NL is a R454B 9,000 BTU WX-SERIES HEAT PUMP AHU. Designed to provide personalized, energy-efficient comfort, this wall-mounted indoor unit features customizable settings and advanced features. It operates with a voltage of 208/230 Volts and is suitable for single-zone systems. The unit includes multiple operating modes, fan speeds, and airflow directions to fit the needs of any room.

• Features Econo Cool mode to maintain comfort while using less energy.
• Equipped with a Nano Platinum Filter designed to reduce certain nonliving particles and deodorize air.
• Offers swing mode to distribute air throughout the room.

Product Highlights

This MITSUBISHI ELECTRIC heat pump offers efficient heating and cooling with advanced filtration and customizable comfort settings.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-WX09NL

Technical Specifications

• Series: M-Series
• Type: Wall-mounted
• Model: MSZ-WX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 22 dB(A)
• SEER2: 18.0
• HSPF2: 8.5
• Refrigerant: R454B
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Installation Location: Indoor
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Moisture Removal: 1.6 Pints/Hour
• Maximum Air Flow: 391 CFM
• Minimum Air Flow: 132 CFM
• Minimum Sound Level: 22 dB
• Maximum Sound Level: 43 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 11 1/16 Inches
• Product Width: 33 Inches
• Product Depth: 9 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Amperage Rating: 1 A
• BTU Rating: 9000 Btu/hr
• CFM Rating: 381/301/210/147 cfm Cooling, 391/321/224/147 cfm Heating
• Mounting Type: Wall
• Fuse Rating: 15 A
• Temperature Rating: 66 to 90 deg F
• EER2: 11.0
• ENERGY STAR Certified: No
• Number of Speeds: 4
• Packaged Depth: 13.25 in
• Packaged Height: 11.25 in
• Packaged Width: 35.5 in
• Product Family: M-Series
• Product Type: Wall-Mount Indoor Unit
• Suction Line Size: 3/8 in
• Tonnage: 0.75 Ton
