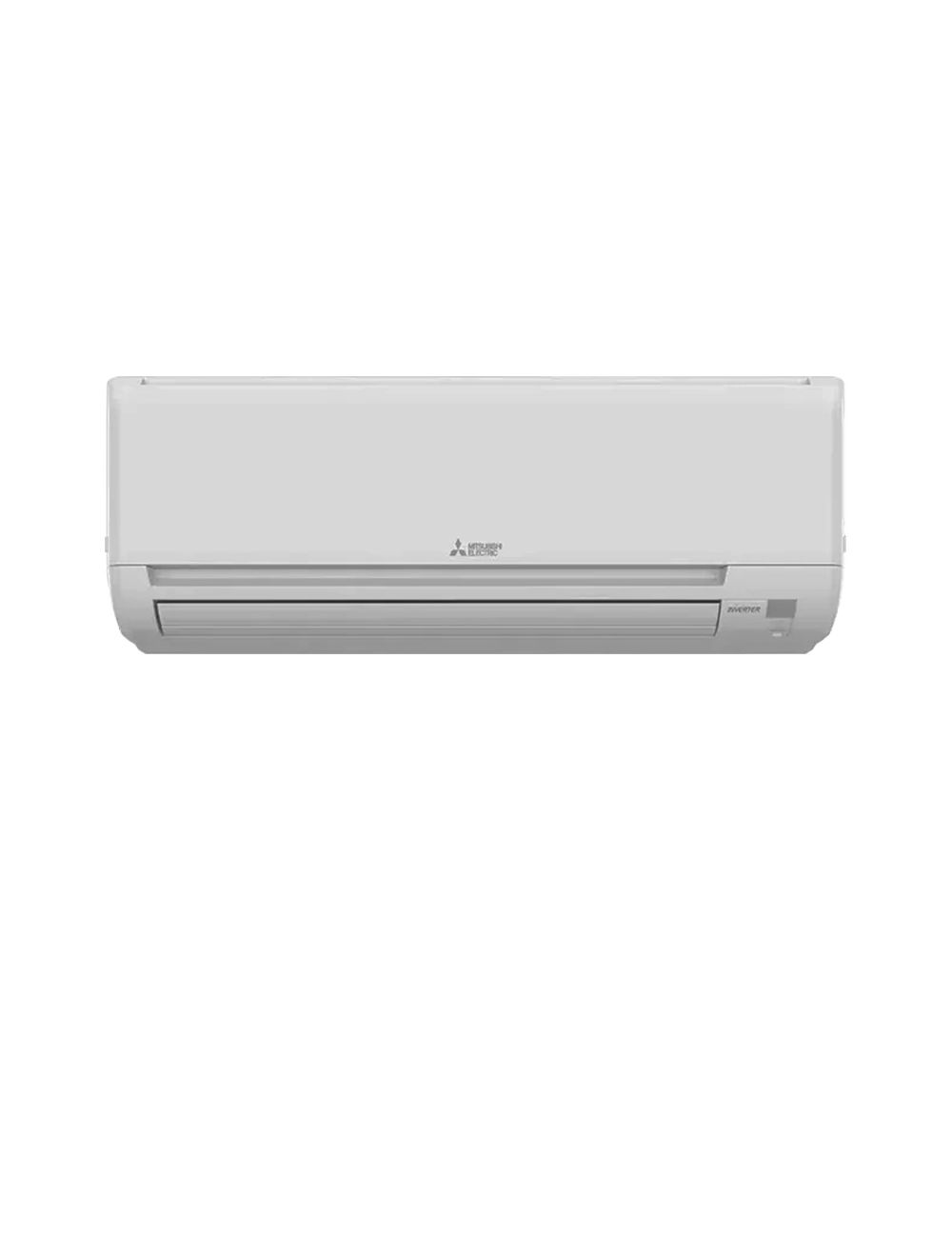

Mitsubishi Electric MSZ-HX24NL HX-Series Wall Mounted Unit 24k BTU R-454B

Product Description

The MITSUBISHI ELECTRIC MSZ-HX24NL is a wall mounted heat pump mini split indoor unit for use in single-zone systems. Designed for quiet operation, it provides comfort without disrupting your space. Features include multiple operating modes, fan speeds, and airflow directions to fit the needs of nearly any room. It utilizes R-454B refrigerant and operates at 208/230 Volts.

• Features an advanced filtration system.
• Includes Econo Cool mode for efficient cooling operations.
• Offers dehumidification to remove unwanted moisture.

Product Highlights

This unit provides efficient, user-friendly comfort solutions for heating and cooling in any room.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-HX24NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 24
• Installation Location: Indoor
• Cooling BTU: 24000
• Cooling Capacity: 22400 BTU
• Heating Capacity: 26000 BTU
• Moisture Removal: 5.5 Pints/Hour
• Maximum Air Flow: 720 CFM
• Minimum Air Flow: 306 CFM
• Minimum Sound Level: 33 dB
• Maximum Sound Level: 50 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 36 5/16 Inches
• Product Depth: 10 7/8 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Number of Fan Speeds: 4
• EER Rating: 11.75
• SEER Rating: 20
• HSPF Rating: 9.5
• CFM Rating: 664 cfm Cooling, 720 cfm Heating
• Connection Type: Flared
• Finish: Munsell 0.7PB 9.2/0.4
• Fuse Rating: 25 A
• Mounting Type: Wall
• Overall Height: 12 in
• Overall Length: 10-7/8 in
• Overall Width: 36-5/16 in
• Power Rating: 1910 W Cooling, 2500 W Heating
• Sound Level: 50 dBA
• Temperature Rating: 67 to 90 deg F
• BTU/h: 24,000
• Refrigerant: R454B
