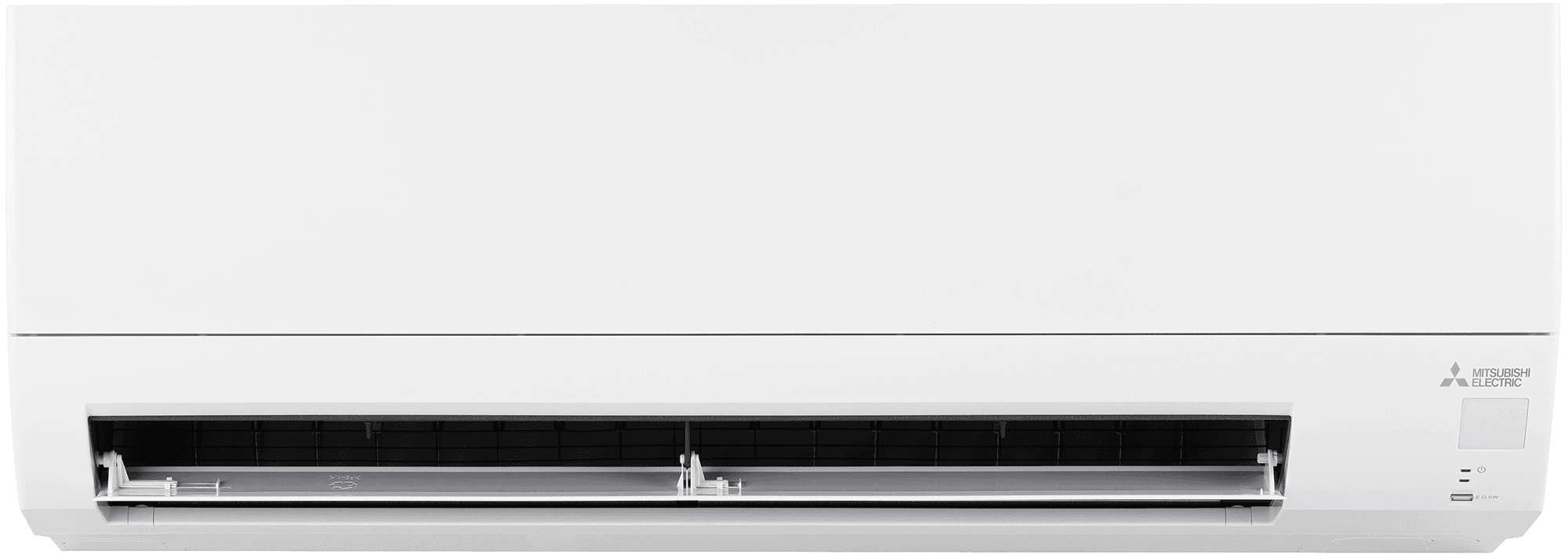

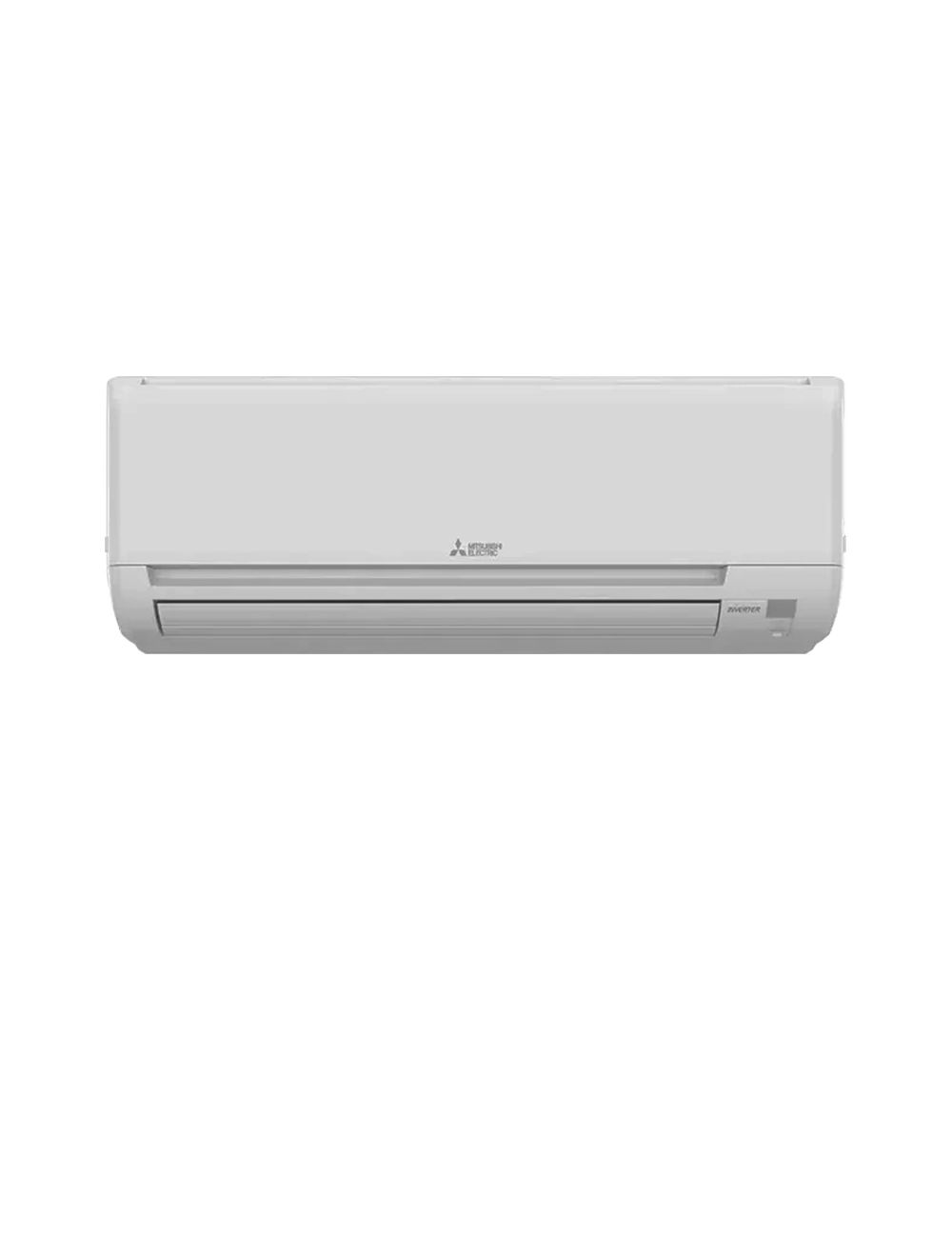

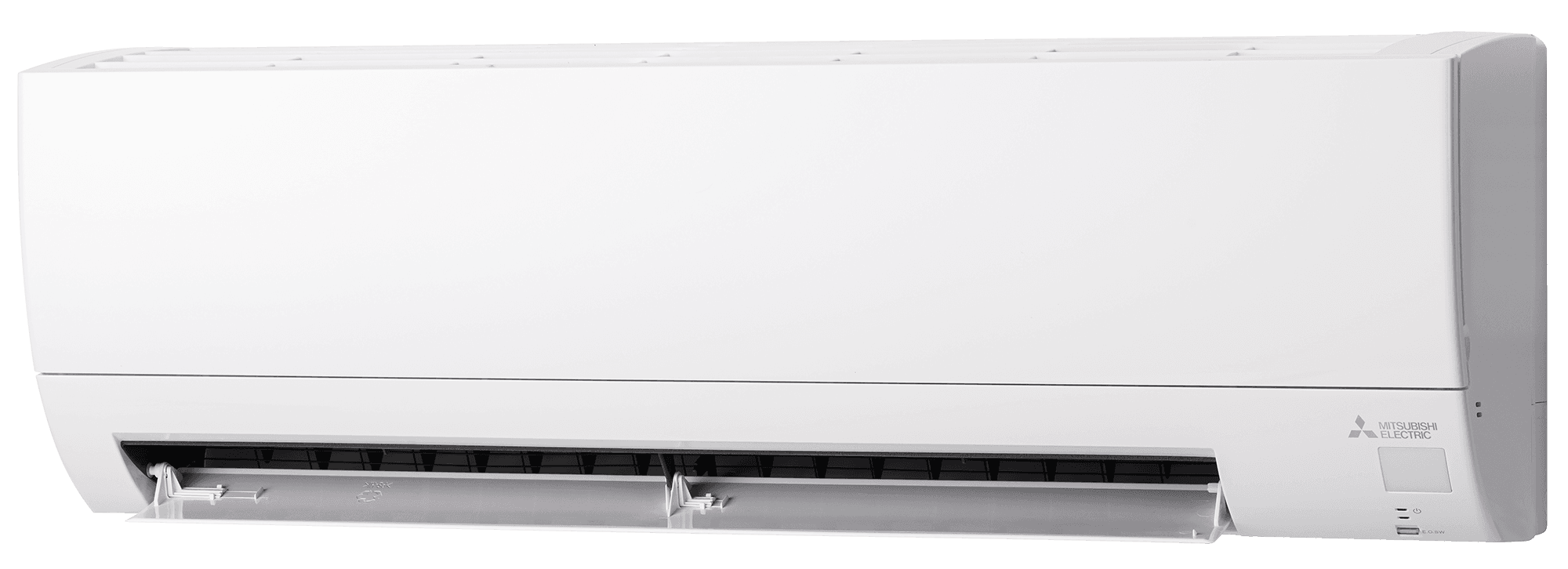

Mitsubishi Electric MSZ-HX18NL HX-Series Wall Mounted Unit - Single-Zone - 18k BTU - R-454B

Product Description

The MITSUBISHI ELECTRIC MSZ-HX18NL is a wall mounted heat pump mini split indoor unit for use in single-zone systems. Its functional design ensures quiet operation, providing comfort without disrupting your space. Installing this Mitsubishi wall mounted indoor unit is quick and easy thanks to its convenient mounting plate. It provides great cooling and heating all year and has advanced features for excellent climate control.

• Advanced Filtration System combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens.
• Econo Cool Mode improves the efficiency of cooling operations without compromising the comfort provided.
• Dual Barrier Coating is applied to the heat exchanger, vanes and fan to prevent hydrophilic and hydrophobic dirt build-up.

Product Highlights

This unit features multiple operating modes, fan speeds, and airflow directions, fitting the needs of nearly any room. It also has a dehumidification mode and multiple vane control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-HX18NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 18
• Installation Location: Indoor
• Cooling BTU: 18000
• Cooling Capacity: 17200 BTU
• Heating Capacity: 18000 BTU
• Moisture Removal: 3.4 Pints/Hour
• Maximum Air Flow: 621 CFM
• Minimum Air Flow: 283 CFM
• Minimum Sound Level: 30 dB
• Maximum Sound Level: 47 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 36 5/16 Inches
• Product Depth: 10 7/8 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Series: M-Series
• Model: MSZ-HX
• Capacity range: 9,000 to 24,000 BTU/H
• Sound level: As low as 22 dB(A)
• Refrigerant: R454B
• ENERGY STAR: Yes
• SEER2: Up to 20
• HSPF2: Up to 9.5
• Model Number: MSZ-HX18NL
• Dimensions: 36-5/16" W x 10-7/8" D x 12" H
