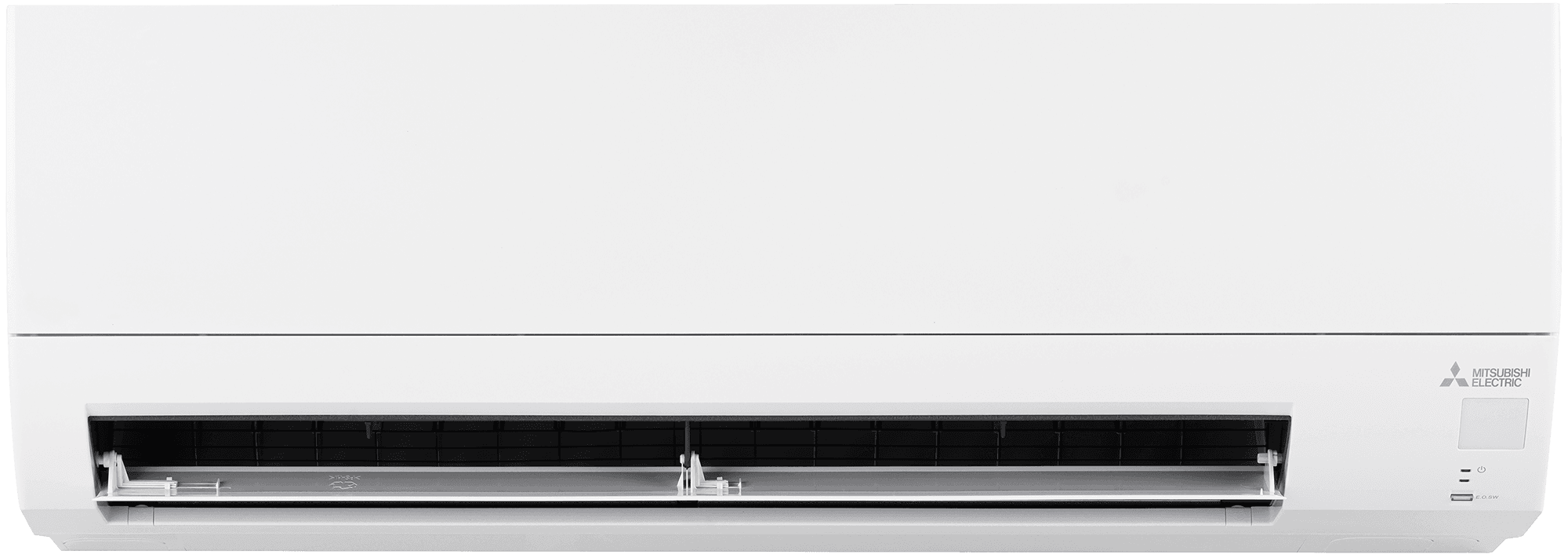

Mitsubishi Electric MSZ-HX09NL HX-Series Wall Mounted Unit - Single-Zone - 9k BTU - R-454B

Product Description

The MITSUBISHI ELECTRIC MSZ-HX09NL is a wall mounted heat pump mini split indoor unit for use in single-zone systems. The functional design ensures quiet operation, providing comfort without disrupting your space. Installing this Mitsubishi wall mounted indoor unit is quick and easy thanks to its convenient mounting plate. It features multiple operating modes, fan speeds and airflow directions. The unit uses R-454B refrigerant.

• Functional design ensures quiet operation
• Convenient mounting plate for quick and easy installation
• Advanced Filtration System with hybrid catechin deodorizing filter and enzyme-based filter

Product Highlights

The MSZ-HX09NL mini split offers efficient, user-friendly comfort with quiet operation and multiple airflow options. It features an advanced filtration system and easy installation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-HX09NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Moisture Removal: 1.6 Pints/Hour
• Maximum Air Flow: 390 CFM
• Minimum Air Flow: 129 CFM
• Minimum Sound Level: 22 dB
• Maximum Sound Level: 43 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Width: 33 Inches
• Product Depth: 9.25 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Series: M-Series
• Model: MSZ-HX
• Refrigerant: R454B
• ENERGY STAR: Yes
• SEER2: Up to 20
• HSPF2: Up to 9.5
