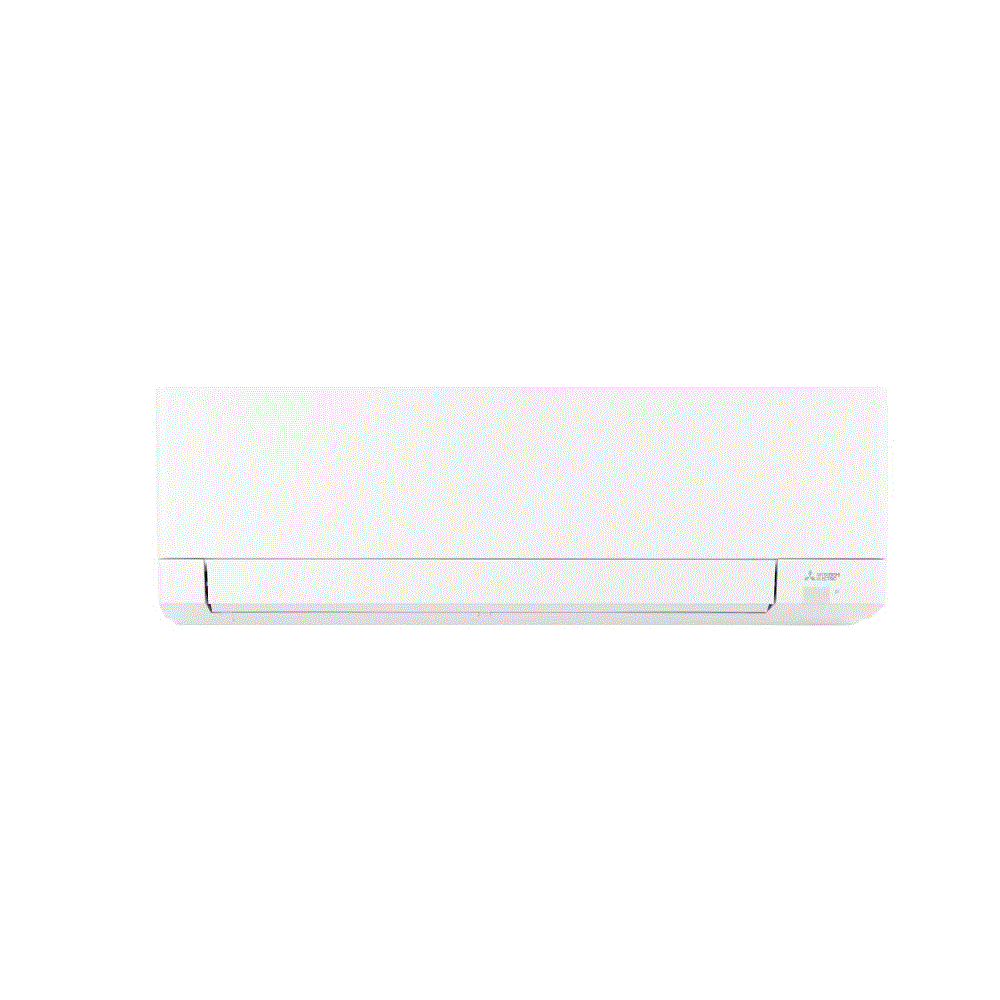

Mitsubishi Electric MSZ-GX36NL R454B 36,000 BTU Heat Pump Wall Mount Air Handler

Product Description

The MITSUBISHI ELECTRIC MSZ-GX36NL is a R454B 36,000 BTU heat pump wall mount air handler. Designed for single-zone systems, this wall-mounted indoor unit provides efficient heating and cooling. It features an advanced filtration system and precision temperature control technology. Built-in Wi-Fi allows for convenient control via smart devices.

• Features an advanced filtration system for managing allergens.
• Offers precision temperature control technology for improved efficiency.
• Includes built-in Wi-Fi for control via smart devices.

Product Highlights

This mini split system provides efficient heating and cooling with smart features and advanced filtration.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX36NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling BTU: 36000
• Cooling Capacity: 33800 BTU
• Heating Capacity: 35200 BTU
• Maximum Sound Level: 53 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 18.5
• EER2: 8.4
• HSPF2: 8.5
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215862739
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Indoor
• Base Pan Heater Included: No
• Maximum Sound Level (Outdoor): 57 dB
• Maximum Line Length: 100 Feet
• Liquid Connection Size: 1/4 Inch
• Remote Control: Wireless
• Moisture Removal: 10 Pints/Hour
• Maximum Air Flow: 765 CFM
• Minimum Air Flow: 292 CFM
• Minimum Sound Level: 30 dB
• Product Height: 12 13/16 Inches
• Product Width: 43 5/16 Inches
• Product Depth: 10 1/8 Inches
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• BTU/h: 36,000
