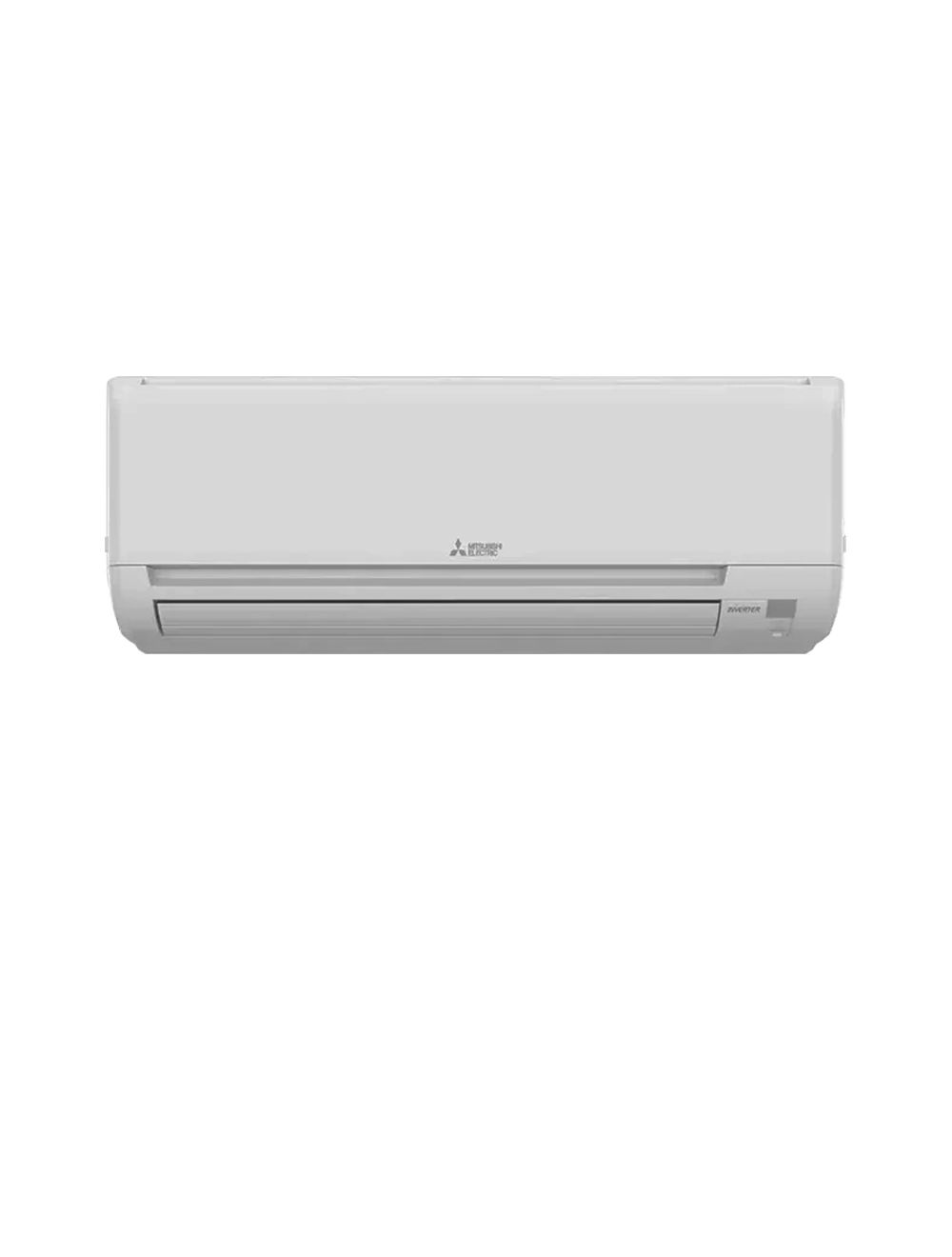

Mitsubishi Electric MSZ-GX24NL R454B 24k BTU Heat Pump Wall Mount Air Handler

Product Description

The MITSUBISHI ELECTRIC MSZ-GX24NL is a wall mounted heat pump mini split indoor unit for use in single-zone or multi-zone systems. It features a special dual barrier coating to reduce the collection of contaminants. The unit has built-in Wi-Fi and multiple fan speed options. It also has a Powerful Mode to quickly cool or heat the room.

• Dual Barrier Coating reduces contaminant buildup for optimal airflow.
• Econo Cool adjusts airflow to maintain comfort while using less energy.
• Built-in Wi-Fi enables control via the Comfort app.

Product Highlights

This wall-mounted unit provides quiet operation and energy-efficient comfort, with convenient control options and advanced filtration.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX24NL

Technical Specifications

• Series: M-Series
• Type: Wall Mounted
• Model: MSZ-GX
• Capacity range: 6,000 to 36,000 BTU/H
• Sound level: As low as 19 dB(A)
• SEER2: Up to 28.4
• HSPF2: 10.0
• Refrigerant: R454B
• Model Number: MSZ-GX24NL
• Warranty: Parts: 10 years
• Product Line: GX-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 24
• Installation Location: Indoor
• Cooling BTU: 24000
• Cooling Capacity: 22400 BTU
• Heating Capacity: 27600 BTU
• Moisture Removal: 4.5 Pints/Hour
• Maximum Air Flow: 765 CFM
• Minimum Air Flow: 292 CFM
• Minimum Sound Level: 30 dB
• Maximum Sound Level: 53 dB
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 13/16 Inches
• Product Width: 43 5/16 Inches
• Product Depth: 10 1/8 Inches
• Product Weight: 37 Pounds
• Shipping Weight: 42 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Indoor Unit: Yes
• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating: 21,200 BTU/h
• CFM Airflow: 324-765 CFM
• Depth: 10.125 in
• EER2: 13.0
• ENERGY STAR Certified: Yes
• Height: 12.813 in
• Liquid Line Size: 1/4 in
• Motor Type: ECM
• Number of Speeds: 5
• Product Family: M-Series
• Product Type: Wall-Mount Indoor Unit
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 43.313 in
