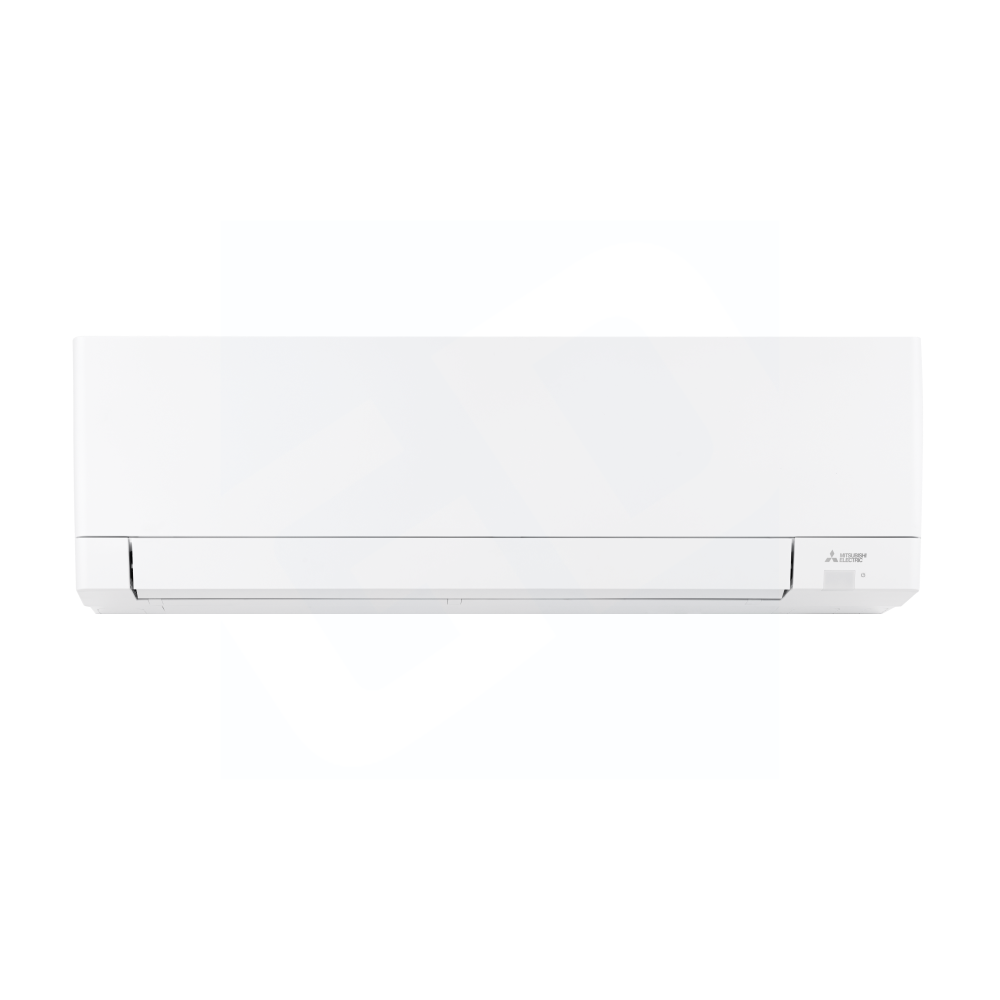

Mitsubishi Electric msz-gx24nl-u1 wall mounted indoor unit 24,000 btu

Product Description

The Mitsubishi Electric MSZ-GX24NL-U1 is a 24,000 BTU wall-mounted indoor unit, providing efficient heating and cooling for spaces up to 1,000 sq ft. It features advanced filtration and smart control, and it is designed to pair with GX outdoor units for year-round comfort.

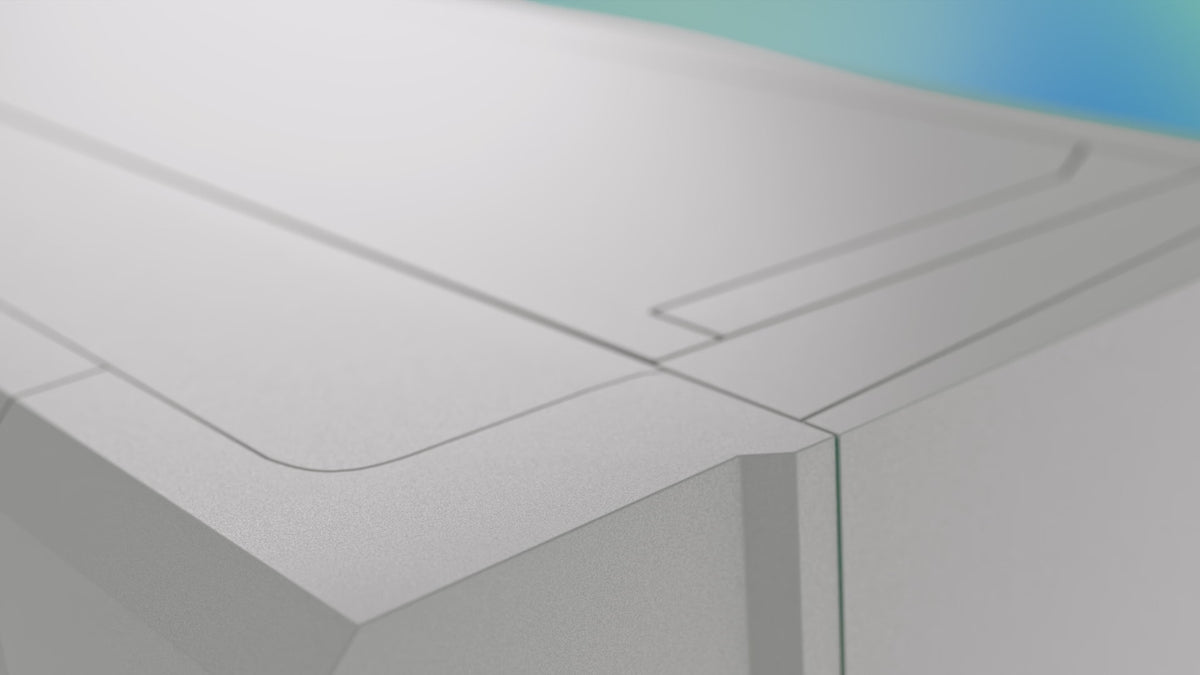

• Dual Barrier Coating reduces the collection of contaminants on the heat pump's inner surface.
• Econo Cool automatically adjusts airflow based on heat exchanger temperature, saving energy while maintaining comfort.
• Multiple control options include a remote controller, comfort app, and third-party interfaces.

Product Highlights

This Mitsubishi Electric indoor unit offers quiet operation, multiple fan speed options, and Wi-Fi connectivity for complete control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX24NL-U1

Technical Specifications

• Unit Type: Wall Mounted
• Product Line: GX Series
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-GX24NL-U1
• Remote Controller: Included
• Cooling Capacity: 22,400 BTU
• Heating Capacity: 27,600 BTU
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Airflow Cooling CFM, Dry: 324-392-454-636-765
• Airflow Cooling CFM, Wet: 292-353-408-573-688
• Airflow Heating CFM, Dry: 344-392-454-530-765
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Noise Level dB(A), Heating: 30-37-41-45-50
• Type: Indoor Unit
• Blower Motor HP: 3/4
• Brand: Mitsubishi
• CFM: 292-765
• CFM Heating: 344-765
• Cooling Rated Capacity Btu/h: 22400
• Cycle/Hertz: 60 Hz
• Liquid Line Size (OD): 1/4"
• Mounting Type: Wall-Mount
• Phase: Single
• Refrigerant: R-454B
• Sound Level (dBA): 30-53
• Suction Line Size (OD): 5/8"
• Tonnage: 2
• Voltage: 208-230 VAC
• EER2: 13
• SEER2: 21.5
• Nominal Tons: 2 Ton
• Liquid Line: 1/4"
• Suction Line: 5/8"
• EER Rating: 13
• SEER: 21.5
• HSPF: 10.3
