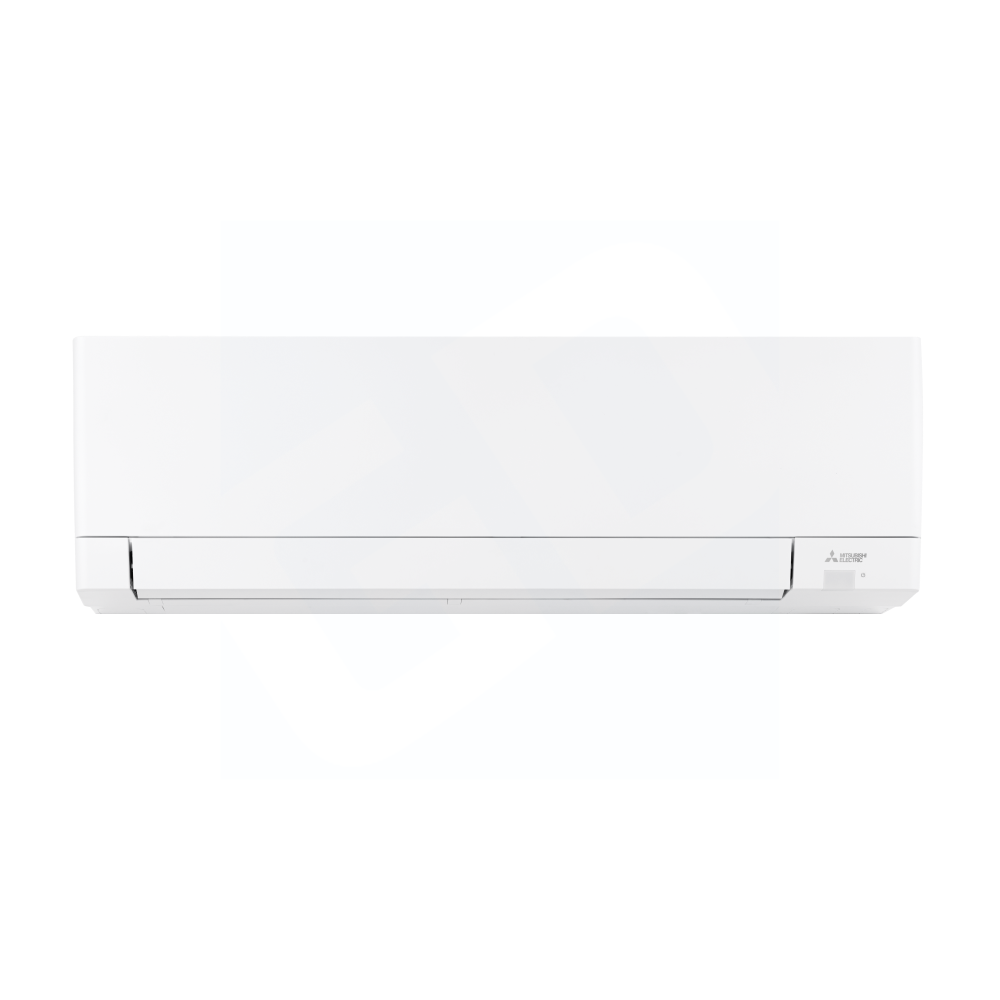

Mitsubishi Electric MSZ-GX18NL-U1 MSZ-GX18NL 18,000 BTU

Product Description

The Mitsubishi Electric MSZ-GX18NL-U1 is an indoor multi-split air conditioner. Operating at 208/230 V, 1 A, and 60 Hz, it delivers 5200 to 22000 Btu/hr cooling and 6800 to 27400 Btu/hr heating. Features include a dual barrier coating, Econo Cool, and electrostatic enzyme filter. It provides efficient heating and cooling for rooms up to 750 sq ft.

• Dual Barrier Coating reduces contaminant collection on the heat pump's inner surface.
• Econo Cool adjusts airflow based on heat exchanger temperature for energy savings.
• Electrostatic Enzyme filter attracts and filters charged particles.

Product Highlights

This wall-mounted unit offers multiple control options, quiet operation, and smart features for optimal comfort and convenience.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX18NL-U1

Technical Specifications

• Type: Indoor Unit
• Unit Type: Wall Mounted
• Product Line: GX Series
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• System Capacity: 18,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-GX18NL-U1
• Remote Controller: Included
• Cooling Capacity: up to 18,000 BTU
• Heating Capacity: up to 21,600 BTU
• Room Cooling/Heating Capacity: up to 750 sq ft
• Airflow Cooling CFM, Dry: 324-392-454-530-650
• Airflow Cooling CFM, Wet: 292-353-408-477-585
• Airflow Heating CFM, Dry: 344-392-454-530-672
• Noise Level dB(A), Cooling: 28-33-38-44-49
• Noise Level dB(A), Heating: 28-34-39-43-48
• Input Voltage: 208/230 V
• Input Current: 1 A
• Cooling Power: 2150 W
• Heating Power: 4000 W
• Frequency: 60 Hz
• Phase: 1 ph
• Cooling BTU/hr: 5200 to 22000
• Heating BTU/hr: 6800 to 27400
• Cooling Airflow: 324/392/454/530/650 cfm
• Heating Airflow: 344/392/454/530/672 cfm
• EER Rating: 14.05
• SEER: 22.5
• HSPF: 10.3
• Connection Type: Flared
• Refrigerant: R-454B
• Drive Type: Inverter Drive
• Cooling Sound Level: 28/33/38/44/49 dBA
• Heating Sound Level: 28/34/39/43/48 dBA
• Mounting Type: Wall Mounting
• Color: White
• Cooling Temperature: 67 to 90 deg F
• Heating Temperature: 70 to 80 deg F
• Overall Length: 10-1/8 in
• Overall Width: 43-5/16 in
• Overall Height: 12-13/16 in
• Size W x D x H: 43-5/16" x 10-1/8" x 12-13/16"
