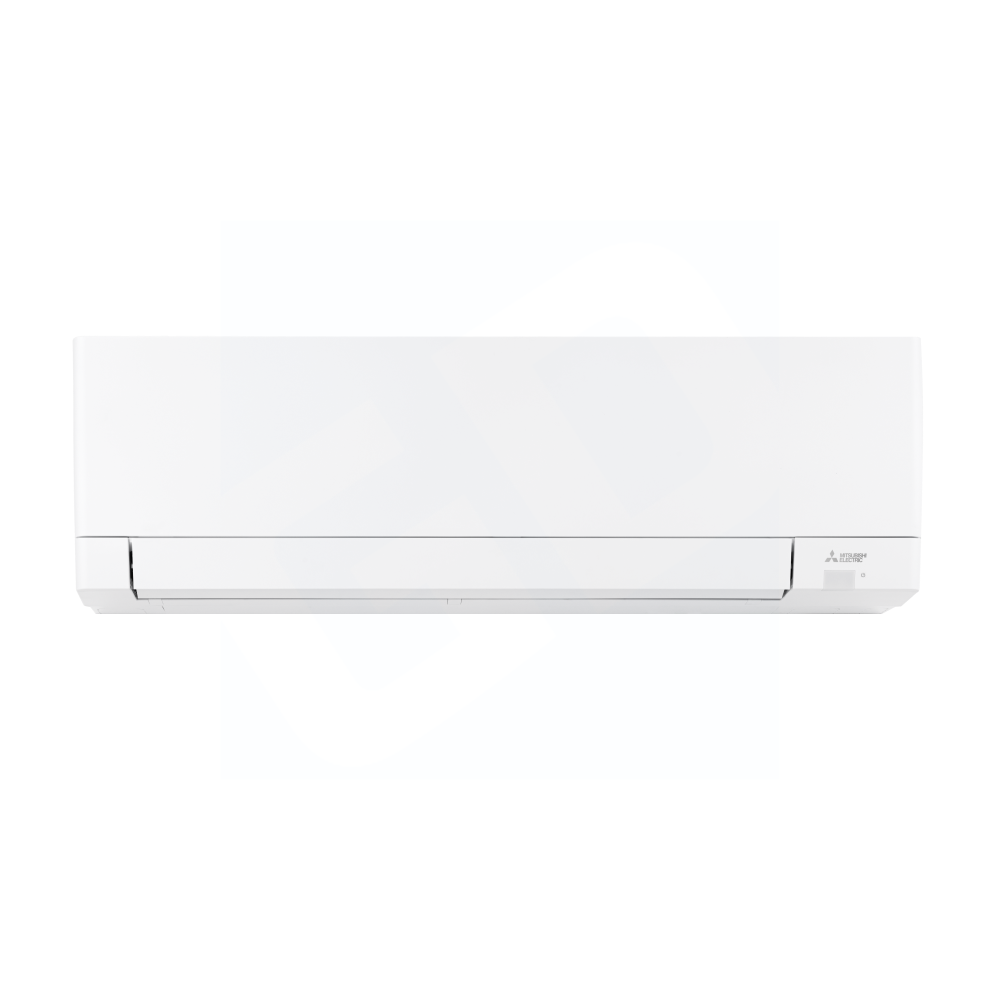

Mitsubishi Electric MSZ-GX15NL-U1 Heat Pump Wall Mount Air Handler 15,000 BTU R-454B

Product Description

The Mitsubishi Electric MSZ-GX15NL-U1 is a 15,000 BTU Heat Pump Wall Mount Air Handler, R-454B. It provides quiet, energy-efficient heating and cooling for rooms up to 650 sq ft. Features advanced filtration and smart control options. Pairs with GX outdoor units for reliable, year-round comfort.

• Dual Barrier Coating reduces contaminant collection for optimal airflow and easier maintenance.
• Econo Cool adjusts airflow based on heat exchanger temperature, saving energy while maintaining comfort.
• Multiple control options including a remote controller, comfort app, and third-party interfaces.

Product Highlights

This wall-mounted unit offers zone comfort control with multiple fan speed options and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX15NL-U1

Technical Specifications

• Number of Zones: 1
• Cooling Capacity (BTU): 15000
• Energy Star Rated: Yes
• Mount: Wall
• Refrigerant Type: R454B
• Voltage: 208/230V
• Application: Heating Cooling
• Product Type: Indoor Unit
• Heating Capacity (BTU): 17000
• Unit Type: Wall Mounted
• Product Line: GX Series
• Operating Mode: Heating and Cooling
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-GX15NL-U1
• Remote Controller: Included
• Cooling Capacity: up to 14,000 BTU
• Heating Capacity: up to 18,000 BTU
• Room Cooling/Heating Capacity: up to 650 sq ft
• Airflow Cooling CFM, Dry: 219-293-369-465-586
• Airflow Cooling CFM, Wet: 197-264-333-418-528
• Airflow Heating CFM, Dry: 219-266-331-408-516
• Noise Level dB(A), Cooling: 26-32-38-44-51
• Noise Level dB(A), Heating: 26-30-35-40-46
• Size W x D x H: 31-13/32" x 9-21/32" x 11-25/32"
• Refrigerant: R-454B
• Nominal Tons: 1.25 Ton
• Suction Line: 1/2"
• Liquid Line: 1/4"
