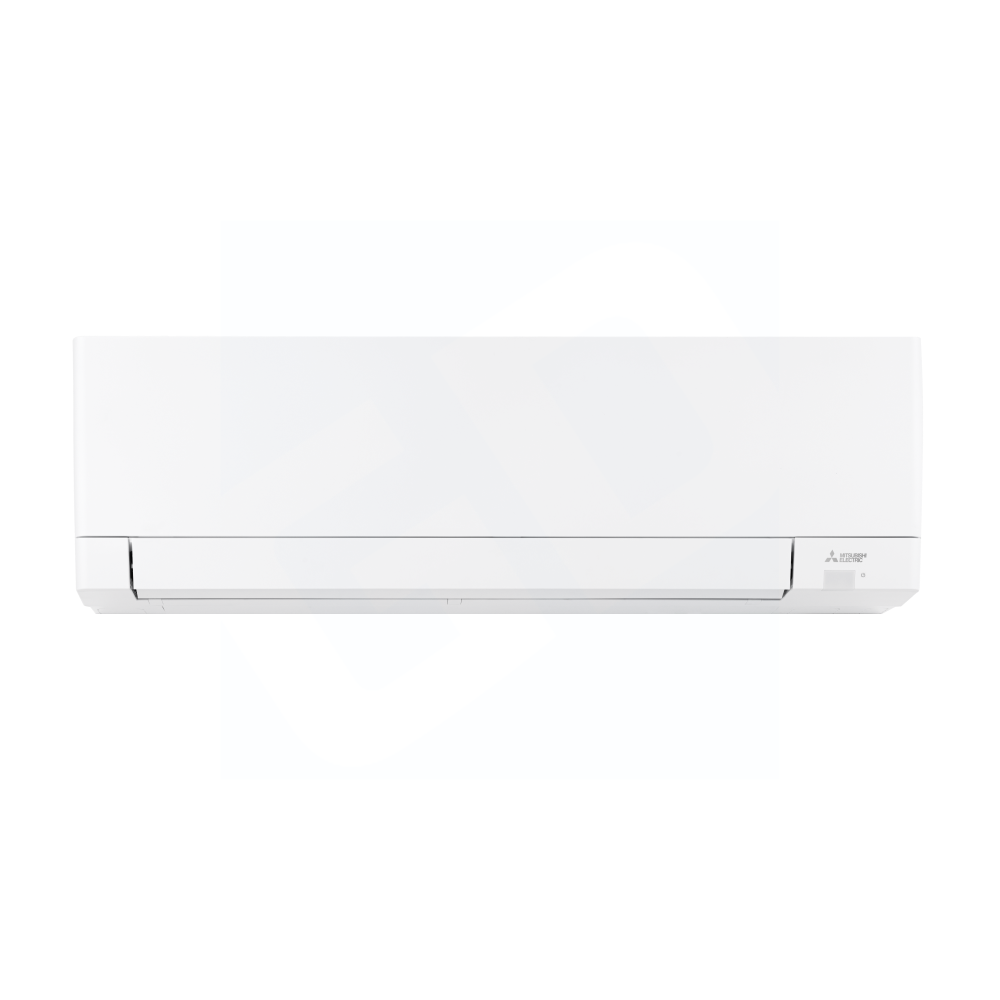

Mitsubishi Electric MSZ-GX06NL-U1 6,000 Btu Heat Pump Wall Mount Air Handler, R-454B

Product Description

The Mitsubishi Electric MSZ-GX06NL-U1 is a 6,000 Btu Heat Pump Wall Mount Air Handler that uses R-454B refrigerant. Designed for heating and cooling, this indoor unit is suitable for single-zone applications. It features multiple fan speed options and a dual barrier coating that reduces the collection of dust and other contaminants. It also has quiet operation.

• Dual Barrier Coating reduces dust and contaminant collection.
• Econo Cool adjusts airflow based on heat exchanger temperature to save energy.
• Wi-Fi enabled for control over temperature, fan speeds, and modes via the Comfort app.

Product Highlights

This Mitsubishi Electric air handler provides efficient heating and cooling with smart features for enhanced comfort and convenience.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-GX06NL-U1

Technical Specifications

• Energy Star Rated: Yes
• Application: Heating Cooling
• Cooling Capacity (BTU): 6000
• Product Type: Indoor Unit
• Number of Zones: 1
• Heating Capacity (BTU): 7600
• Mount: Wall
• Refrigerant Type: R454B
• Voltage: 208/230V
• Unit Type: Wall Mounted
• Product Line: M-Series (GX)
• Operating Mode: Heating and Cooling
• System Capacity: 6,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-GX06NL-U1
• Remote Controller: Included
• Cooling Capacity: up to 6,000 BTU
• Heating Capacity: up to 7,200 BTU
• Room Cooling/Heating Capacity: up to 250 sq ft
• Airflow Cooling CFM, Dry: 151-182-256-358-448
• Airflow Cooling CFM, Wet: 136-164-230-323-403
• Airflow Heating CFM, Dry: 151-182-256-358-459
• Noise Level dB(A), Cooling: 19-22-30-37-43
• Noise Level dB(A), Heating: 19-22-30-37-43
• Size W x D x H: 31-13/32" x 9-21/32" x 11-25/32"
• Weight: 23 lbs
