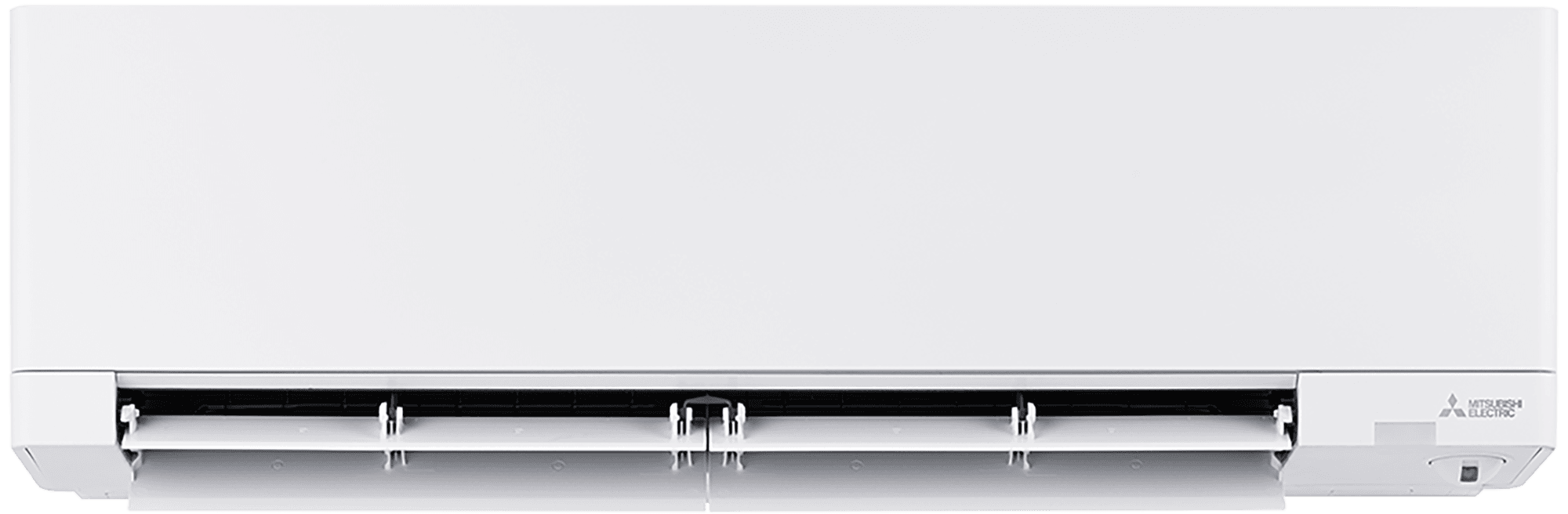

Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler

Product Description

The Mitsubishi Electric MSZ-FX18NL is an 18,000 BTU wall mounted heat pump mini split indoor unit for use in single-zone or multi-zone systems. The functional design ensures quiet operation. It features multiple operating modes, fan speeds and airflow directions. The MSZ-FX series uses Triple Action Filtration which combines enzyme, deodorizing and hybrid filters to capture allergens and neutralize odors.

• Features an advanced filtration system
• Has built-in Wi-Fi for smart device control
• Equipped with a dual barrier coating to prevent dirt build-up

Product Highlights

This wall-mounted unit provides efficient, user-friendly comfort with quiet operation and multiple fan speeds. Built-in Wi-Fi and advanced filtration enhance convenience and air quality.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-FX18NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Indoor Unit Size(s): 18
• Installation Location: Indoor
• Cooling BTU: 18000
• Cooling Capacity: 17200 BTU
• Heating Capacity: 17000 BTU
• Moisture Removal: 3.8 Pints/Hour
• Maximum Air Flow: 614 CFM
• Minimum Air Flow: 231 CFM
• Minimum Sound Level: 26 dB
• Maximum Sound Level: 46 dB
• Voltage: 208/230 V
• Phase: 1 ph
• Frequency: 60 Hz
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 39.27 Inches
• Product Depth: 9.75 Inches
• Shipping Weight: 36.4 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• System Capacity: 18,000 BTU
• Line Set Size: 1/4" x 1/2"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-FX18NL
• Remote Controller: Included
• Room Cooling/Heating Capacity: up to 750 sq ft
• Airflow Cooling CFM, Dry: 272-339-392-456-593
• Airflow Cooling CFM, Wet: 231-288-333-387-504
• Airflow Heating CFM, Dry: 272-311-378-456-614
• Noise Level dB(A), Cooling: 27-31-35-39-45
• Noise Level dB(A), Heating: 26-29-34-39-46
• Amperage: 1 A
• Cooling Wattage: 2360 W
• Heating Wattage: 2890 W
• Cooling BTU/hr: 3700 to 21500 Btu/hr
• Heating BTU/hr: 5150 to 30200 Btu/hr
• Cooling CFM: 272/339/392/456/593 cfm
• Heating CFM: 272/311/378/456/614 cfm
• EER Rating: 13.05
• SEER: 25.5
• HSPF: 11.1
• Connection: Flared Connection
• Refrigerant: R-454B Refrigerant
• Drive: Inverter Drive
• Cooling Sound Level: 27/31/35/39/45 dBA
• Heating Sound Level: 26/29/34/39/46 dBA
• Mounting: Wall Mounting
• Cooling Temperature: 67 to 90 deg F
• Heating Temperature: 70 to 80 deg F
• Overall Length: 9.75 in
• Overall Width: 39.27 in
• Overall Height: 12 in
• Number of Zones: 1
