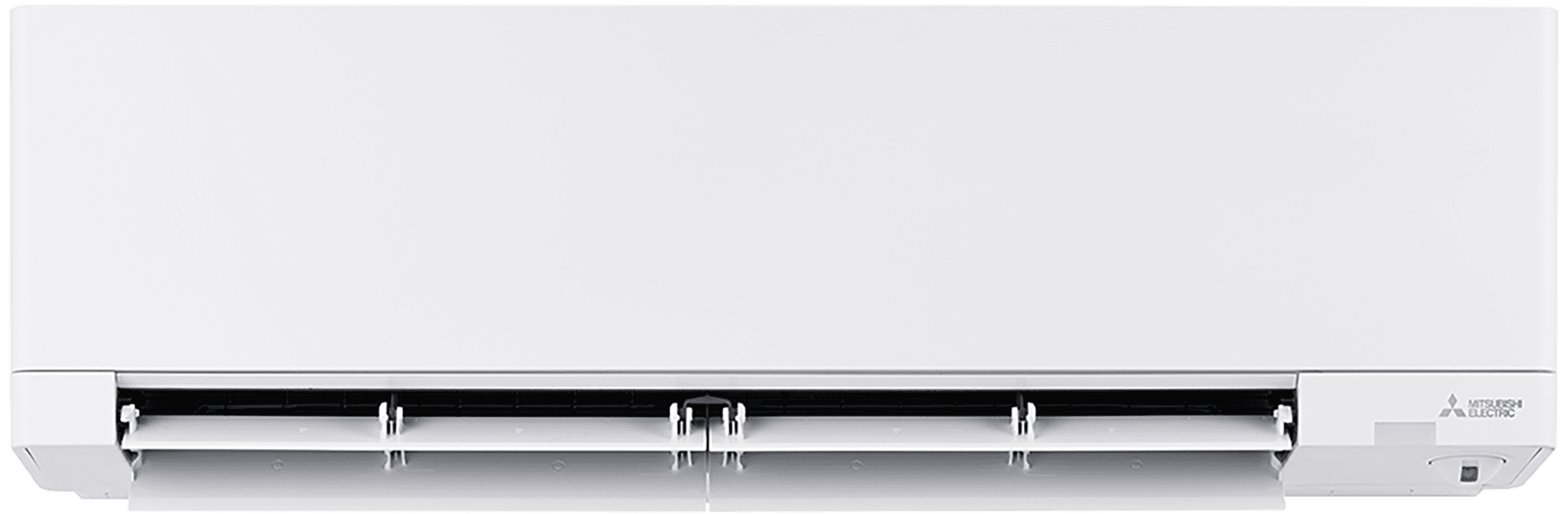

Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler

Product Description

The Mitsubishi Electric MSZ-FX12NL is an R454B: 12,000 BTU HI-SEER HYPER HEAT AIR HANDLER. Designed for single-zone or multi-zone systems, this wall-mounted unit ensures quiet operation and easy installation. It features multiple operating modes, fan speeds, and airflow directions to suit any room. Ideal as a primary or supplemental heating and cooling solution, it enhances comfort and efficiency.

• Features Triple Action Filtration with enzyme, deodorizing, and hybrid filters.
• Includes built-in Wi-Fi for control via smart devices.
• Employs a Dual Barrier Coating to prevent dirt build-up on the heat exchanger, vanes, and fan.

Product Highlights

This Mitsubishi Electric air handler offers advanced filtration, smart control, and a functional design for optimal comfort and air quality.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-FX12NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 13200 BTU
• Moisture Removal: 1.3 Pints/Hour
• Maximum Air Flow: 526 CFM
• Minimum Air Flow: 168 CFM
• Minimum Sound Level: 20 dB
• Maximum Sound Level: 44 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 39.27 Inches
• Product Depth: 9.75 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Series: M-Series
• Model: MSZ-FX
• SEER2: Up to 35
• HSPF2: Up to 13.3
• ENERGY STAR: Yes
• Mounting Style: Wall-mounted
• Nominal CFM: 168-526
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Nominal Tons: 1 Ton
