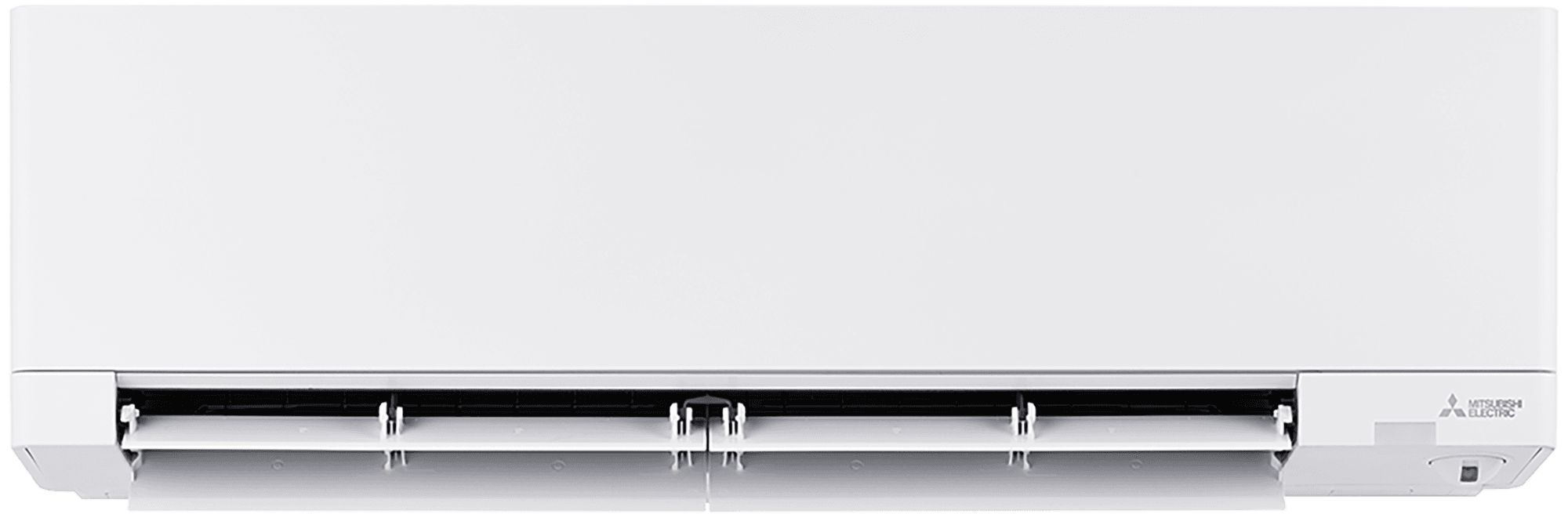

Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler

Product Description

The Mitsubishi Electric MSZ-FX09NL is a wall mounted heat pump mini split indoor unit for use in single-zone or multi-zone systems. The functional design ensures quiet operation. It features Triple Action Filtration which combines enzyme, deodorizing and hybrid filters to capture allergens and neutralize odors. Built-in Wi-Fi enables control with smart devices.

• Features an advanced filtration system.
• Offers built-in Wi-Fi for smart device control.
• Equipped with a dual barrier coating to prevent dirt build-up.

Product Highlights

This wall-mounted unit provides efficient heating and cooling with smart features and advanced air filtration for a comfortable indoor environment.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-FX09NL

Technical Specifications

• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Installation Location: Indoor
• Cooling BTU: 9000
• Cooling Capacity: 9000 BTU
• Heating Capacity: 12000 BTU
• Maximum Air Flow: 526 CFM
• Minimum Air Flow: 168 CFM
• Minimum Sound Level: 20 dB
• Maximum Sound Level: 44 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 39.27 Inches
• Product Depth: 9.75 Inches
• Shipping Weight: 36.4 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Number of Zones: 1
• System Capacity: 9,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MSZ-FX09NL
• Remote Controller: Included
• Room Cooling/Heating Capacity: up to 350 sq ft
• Airflow Cooling CFM, Dry: 198-233-311-406-526
• Airflow Cooling CFM, Wet: 168-198-264-345-447
• Airflow Heating CFM, Dry: 177-247-311-406-477
• Noise Level dB(A), Cooling: 20-23-29-36-44
• Noise Level dB(A), Heating: 20-24-29-36-42
• Refrigerant: R454B
• Indoor Style: Wall-mounted
