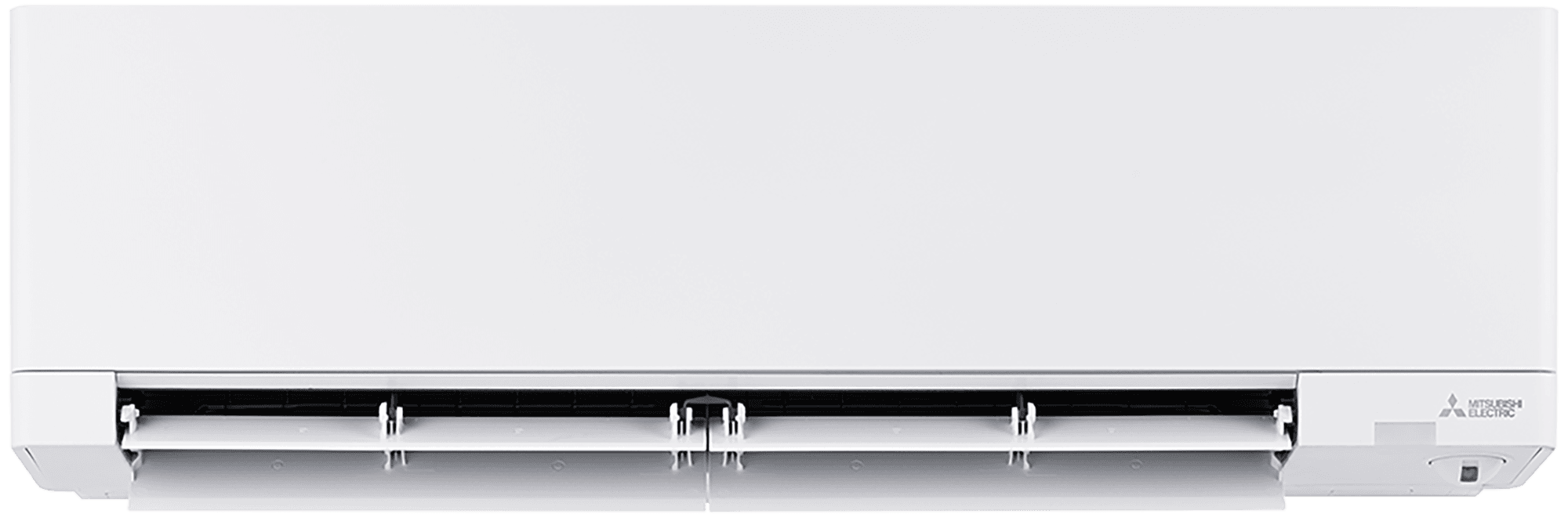

Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler

Product Description

The Mitsubishi Electric MSZ-FX06NL is a R454B: 6,000 BTU HI-SEER HYPER HEAT AIR HANDLER. This wall mounted heat pump mini split indoor unit is designed for use in single-zone or multi-zone systems. It features quiet operation and easy installation with a convenient mounting plate. With multiple operating modes, fan speeds and airflow directions, this unit fits the needs of nearly any room.

• Features an advanced filtration system
• Offers built-in Wi-Fi for smart device control
• Incorporates a dual barrier coating to prevent dirt build-up

Product Highlights

The MSZ-FX06NL offers efficient, user-friendly comfort with its advanced features and quiet operation, making it an excellent addition to any space.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSZ-FX06NL

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: M-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Remote Control: Wireless
• Installation Location: Indoor
• Cooling BTU: 6000
• Cooling Capacity: 6000 BTU
• Heating Capacity: 9000 BTU
• Maximum Air Flow: 477 CFM
• Minimum Air Flow: 150 CFM
• Minimum Sound Level: 20 dB
• Maximum Sound Level: 42 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 12 Inches
• Product Width: 39.27 Inches
• Product Depth: 9.75 Inches
• Shipping Weight: 36.4 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Number of Zones: 1
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Indoor Unit: MSZ-FX06NL
• Room Cooling/Heating Capacity: up to 250 sq ft
• Airflow Cooling CFM, Dry: 177-233-293-371-420
• Airflow Cooling CFM, Wet: 150-198-249-315-357
• Airflow Heating CFM, Dry: 177-247-311-406-477
• Noise Level dB(A), Cooling: 20-23-29-36-40
• Noise Level dB(A), Heating: 20-24-29-36-42
• Series: M-Series
• Model: MSZ-FX
• SEER2: Up to 35
• HSPF2: Up to 13.3
• ENERGY STAR: Yes
• Capacity: 6,000 BTU/H
• Service Ref: MSZ-FX06NL
• BTU/h: 6,000
