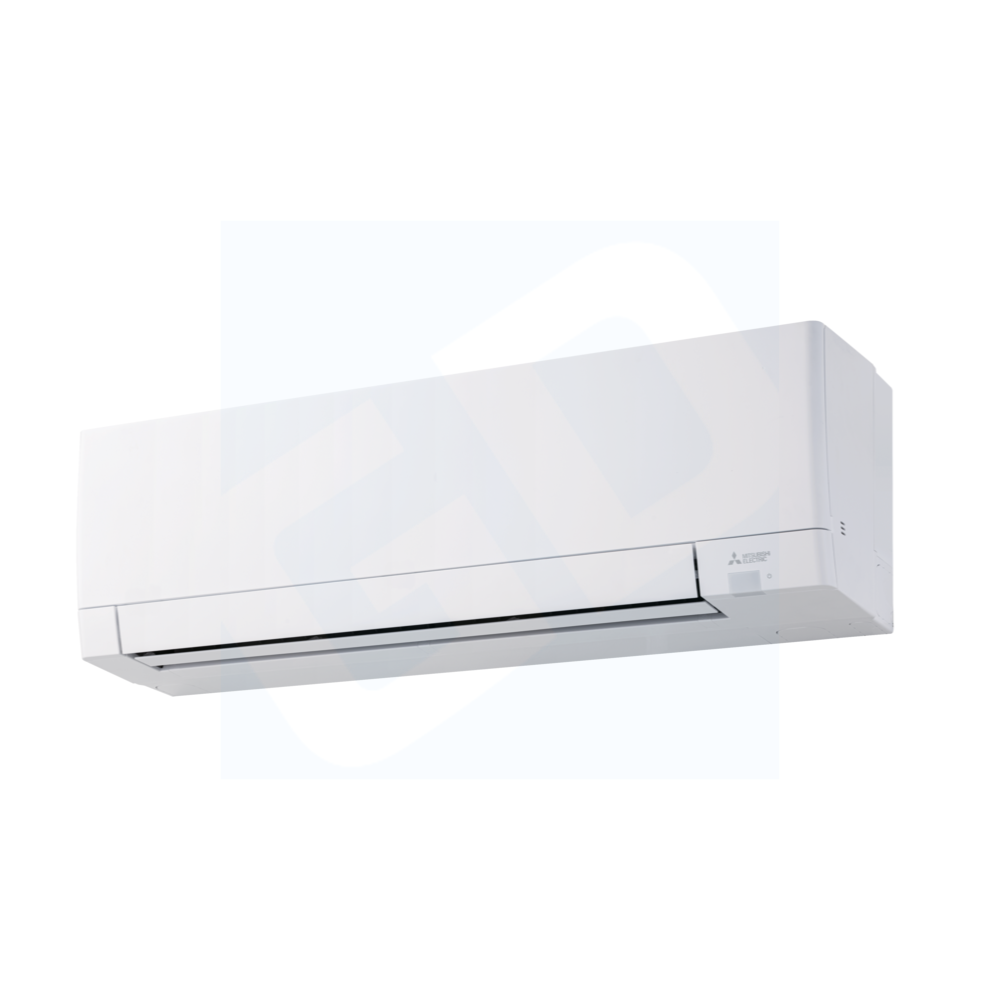

Mitsubishi Electric MSY-GX36NL Single Zone Mini Split Air Conditioning System

Product Description

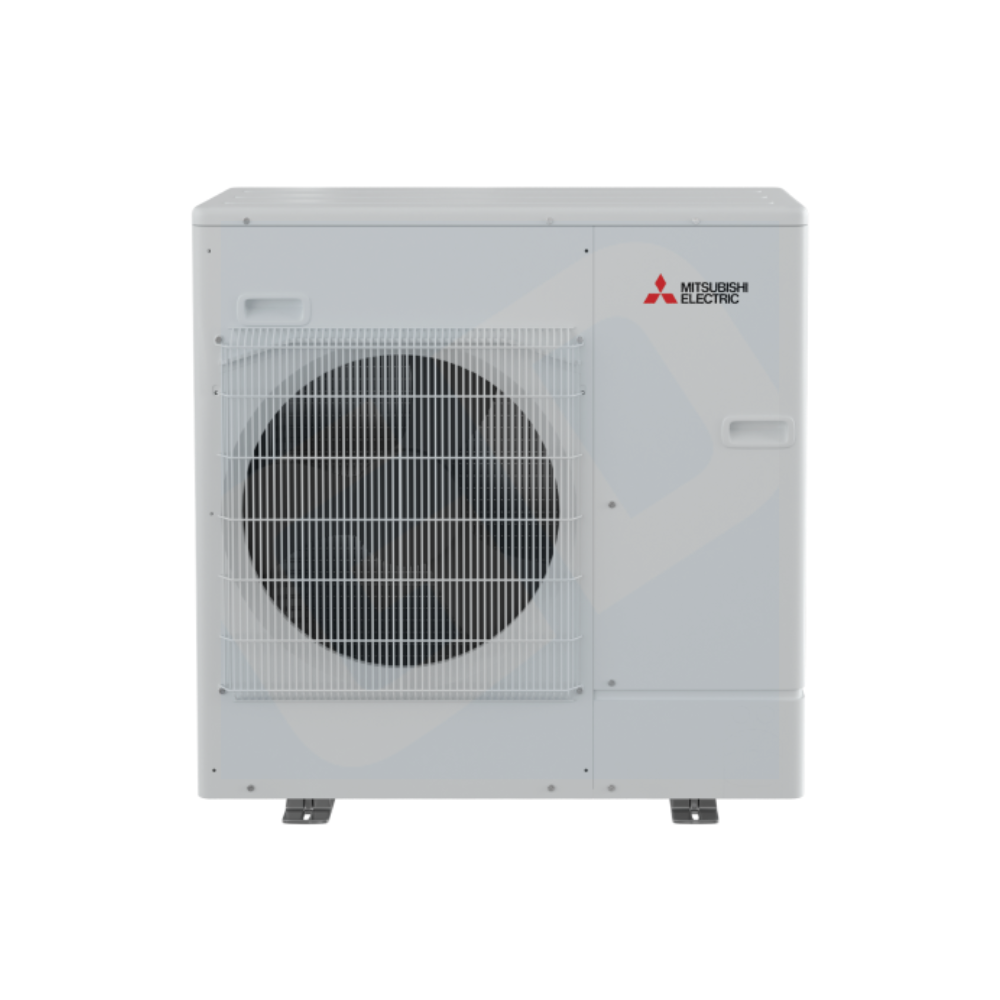

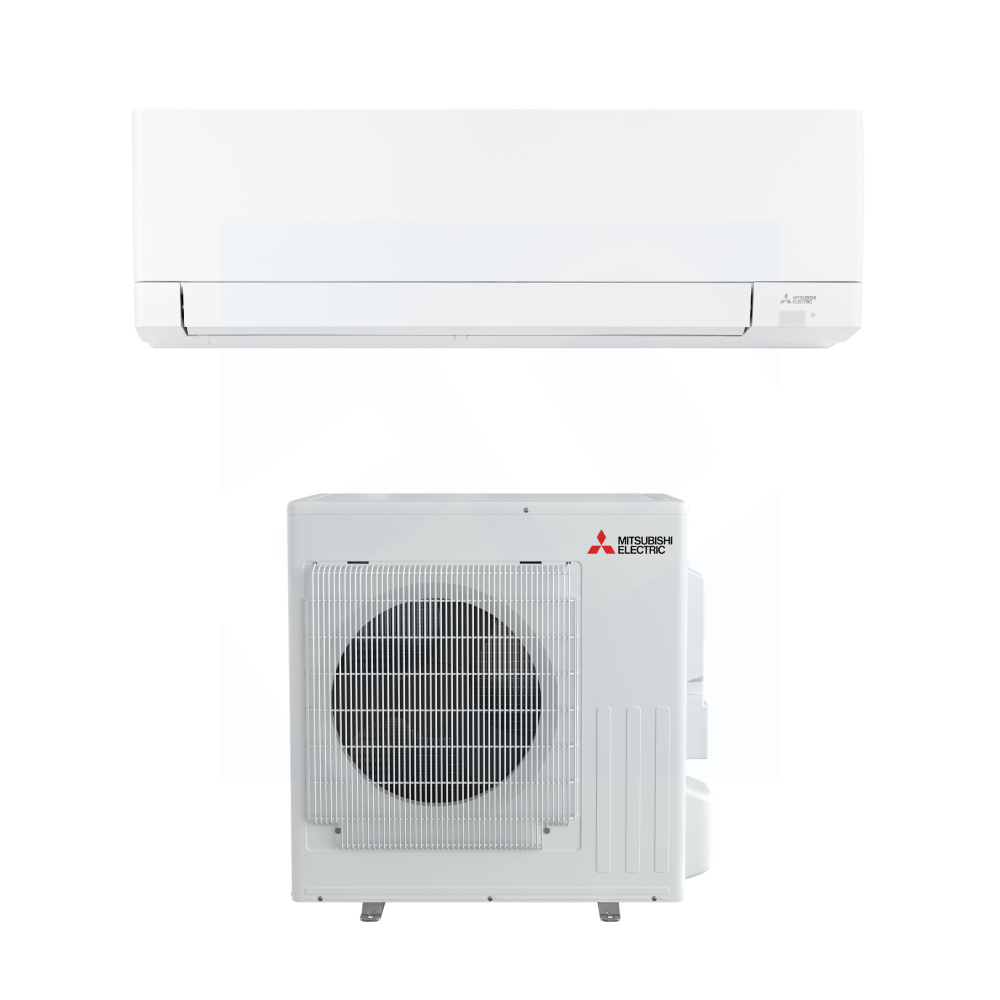

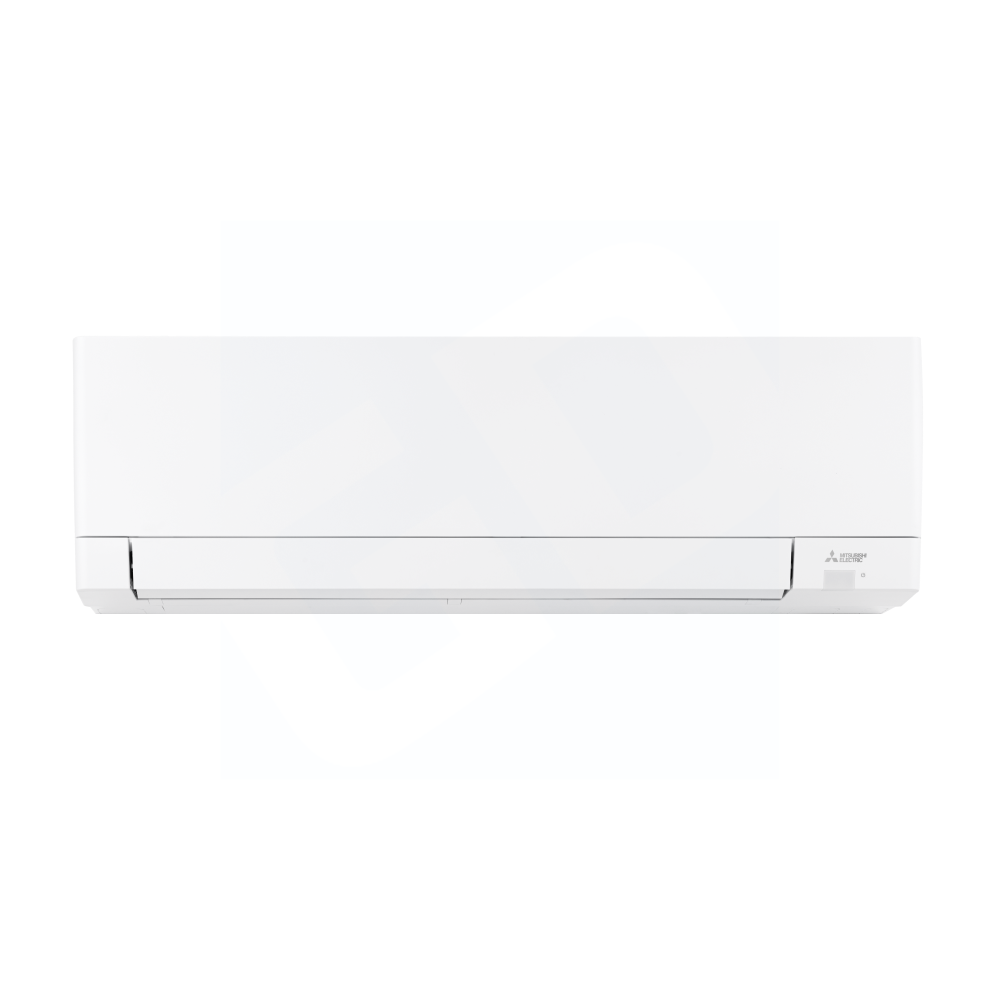

The Mitsubishi Electric MSY-GX36NL is a cooling-only mini-split system ideal for single-zone applications. The complete setup includes a wall-mounted indoor unit and an outdoor unit designed to efficiently cool spaces up to one thousand five hundred square feet. Utilizing INVERTER technology, this system maintains optimal temperatures while maximizing energy efficiency. The user-friendly design features a wireless remote control, allowing for easy adjustments from anywhere in the room.

• Cools areas up to one thousand five hundred square feet.
• Features INVERTER technology for precise cooling.
• Remote controller included for easy operation.

Product Highlights

This system is engineered for reliable performance with multiple fan speeds and quiet operation, making it suitable for residential and commercial settings.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSY-GX36NL

Technical Specifications

• Product Line: GX Series
• Operating Mode: Cooling Only
• Number of Zones: 1
• System Capacity: 36,000 BTU
• Cooling Capacity: 33,800 BTU
• SEER2: 18.5
• EER2: 8.4
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Airflow Cooling CFM, Dry: 324-765
• Airflow Cooling CFM, Wet: 292-688
• Noise Level dB(A), Cooling: 30-53
• Liquid Connection Size: 1/4 Inch
• Suction Connection Size: 5/8 Inch
• Moisture Removal: 10 Pints/Hour
• Cooling Minimum Temp: -1 F
• WiFi Enabled: Yes with Comfort App
• Energy Star Listed: Yes
• Product Weight: 153 Pounds
• Indoor Unit Dimensions: 43 5/16 x 9 x 12 13/16 Inches
• Outdoor Unit Dimensions: 33 1/16 x 13 x 34 5/8 Inches
