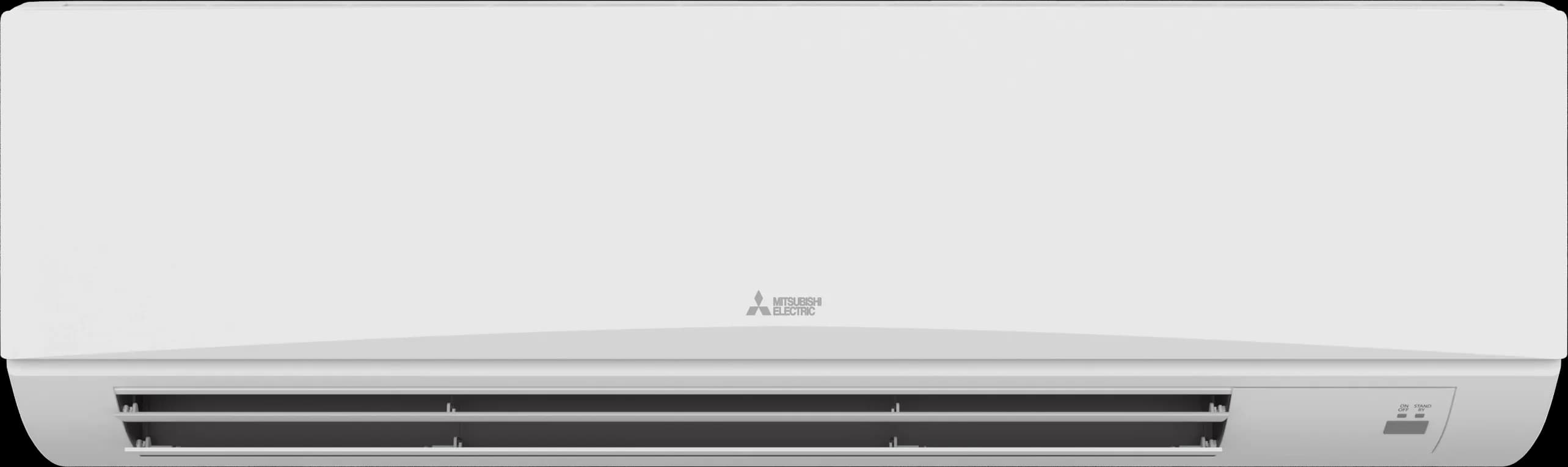

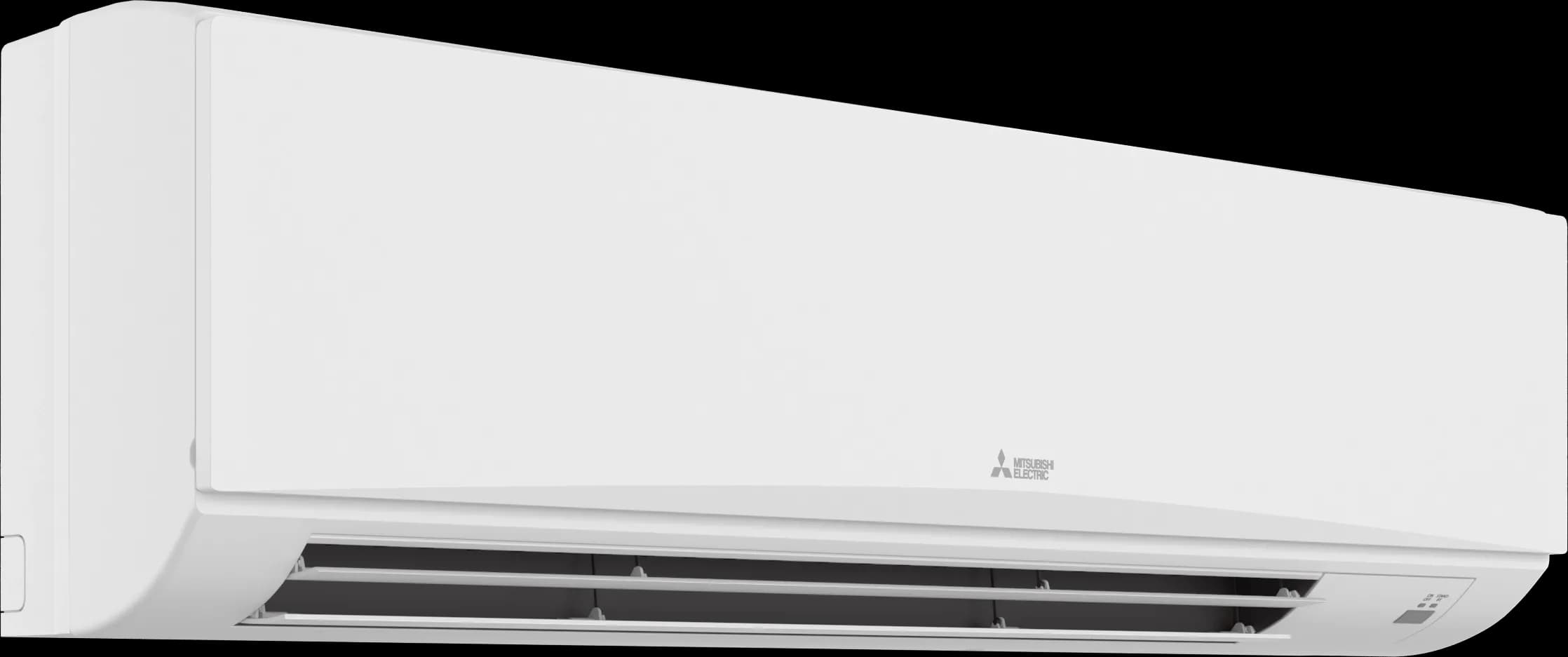

Mitsubishi Electric MSY-GS12NA-U1 M-Series Wall Mounted Air Conditioning System 12k BTU

Product Description

The Mitsubishi Electric MSY-GS12NA-U1 is a mini split system providing efficient, user-friendly comfort solutions. The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. It improves temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow. The MSY-GS features a Powerful Mode for rapidly cooling a space to the desired temperature.

• Precision Temperature Control Technology
• Blue Fin Condenser
• Advanced Filtration System

Product Highlights

This M-Series wall mounted air conditioning system is designed for cooling with a SEER2 rating of 25.6. Features include a hybrid catechin nano platinum filter for managing allergens and Kumo Cloud compatibility.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MSY-GS12NA-U1

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: M-Series
• Operating Mode: Cooling Only
• Number of Zones: 1
• Refrigerant Type: R-410A
• Indoor Unit Size(s): 12
• Outdoor Unit Size: 12000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Cooling BTU: 12000
• Cooling Capacity: 13600 BTU
• Moisture Removal: 2.5 Pints/Hour
• Cooling Power Input: 1450 Watts
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• SEER2: 25.6
• EER2: 13.05
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Recommended Breaker Size: 15 Amps
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 207679238
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Maximum Sound Level: 49 dB
• Minimum Circuit Ampacity: 10 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 11 5/8 Inches
• Product Width: 31 7/16 Inches
• Product Depth: 9 1/8 Inches
• Remote Control: Wireless
• Maximum Air Flow: 381 CFM
• Minimum Air Flow: 134 CFM
• Minimum Sound Level: 19 dB
• Maximum Sound Level (Indoor): 45 dB
• Series: M-Series
• Model: MSY-GS
• Voltage Rating: 208/230 V
• Refrigerant: R410A
• ENERGY STAR: Yes
• BTU Rating: 12000 Btu/hr
• CFM Rating: 134 to 390 cfm
