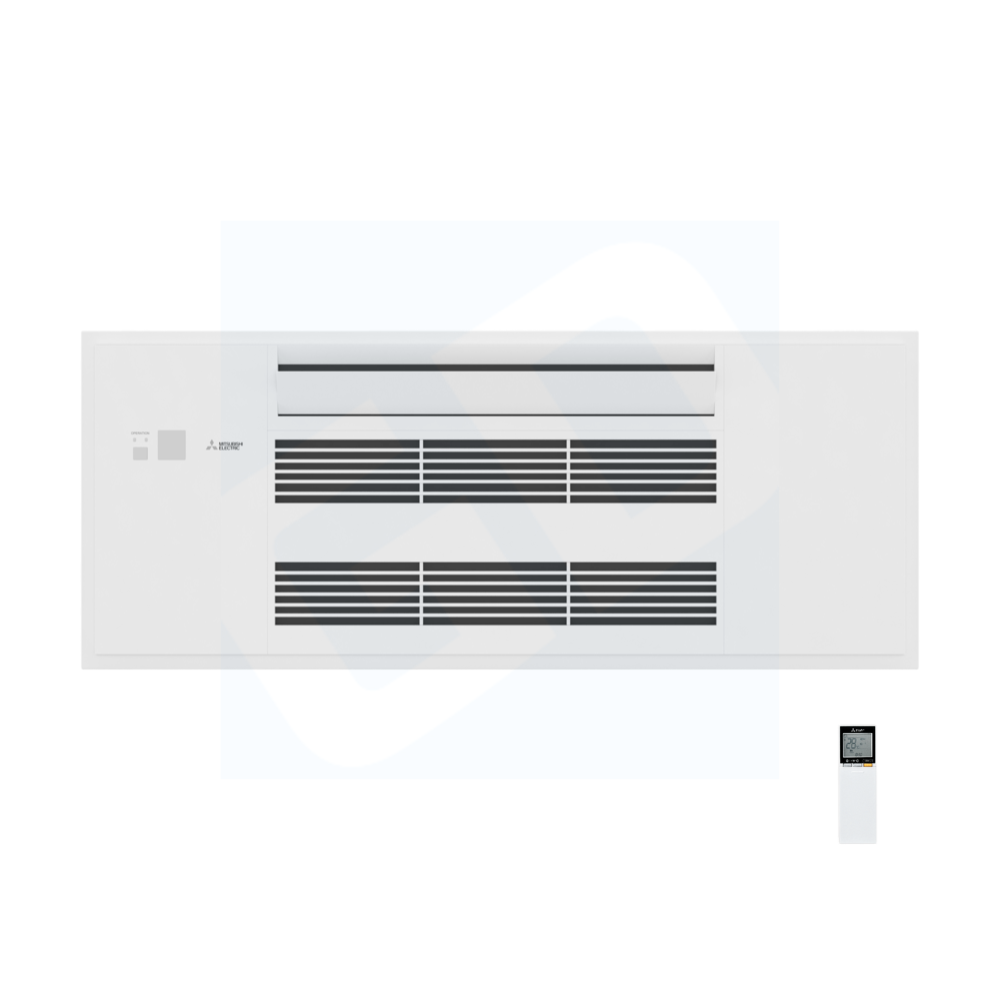

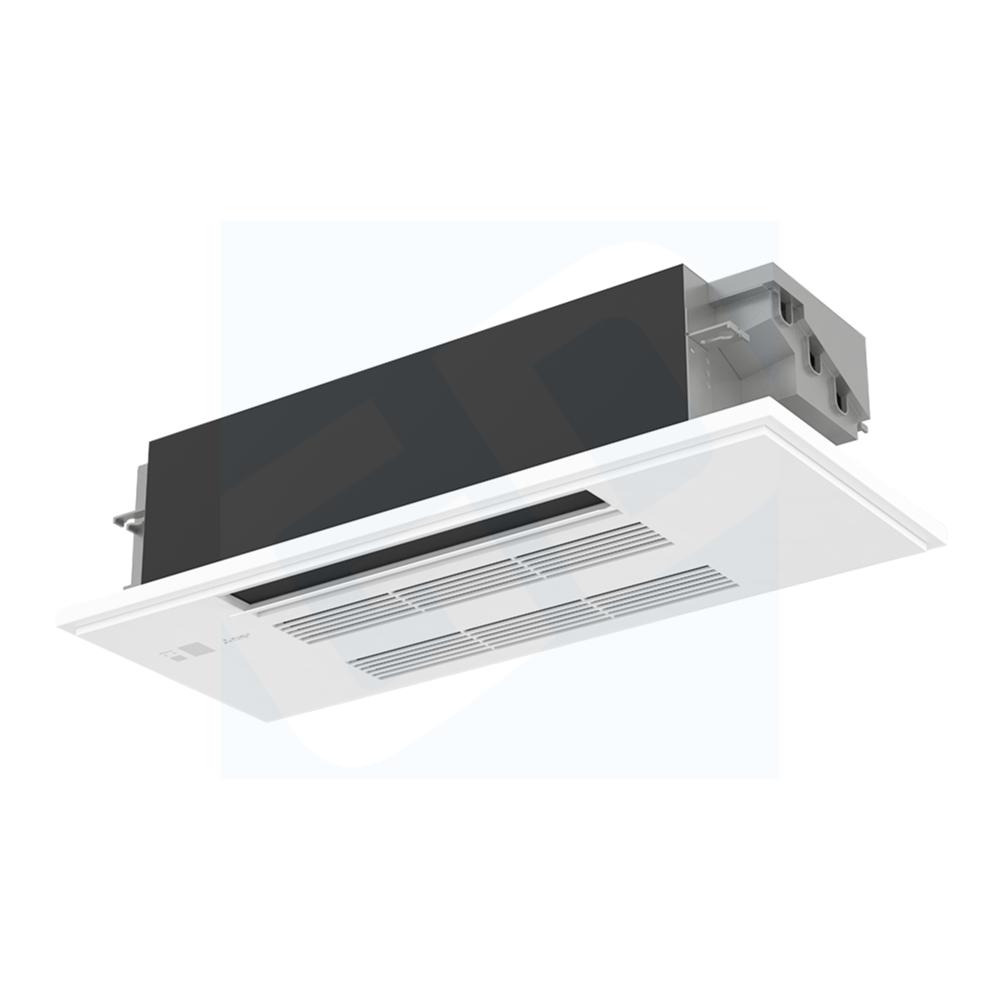

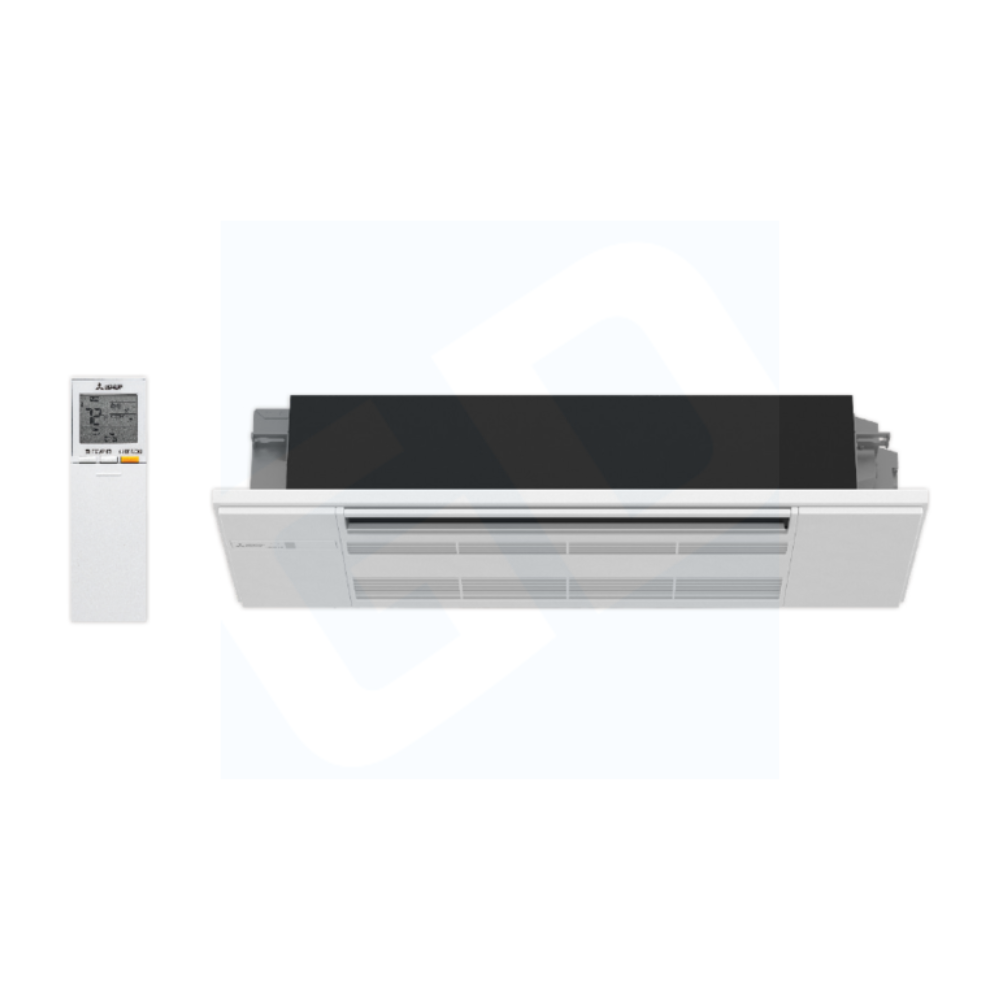

Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Grille not included - MLP-449WU)

Product Description

The Mitsubishi Electric MLZ-KX09NL is a ceiling cassette indoor unit designed for single or multi-zone systems. This unit operates with R454B refrigerant, providing both heating and cooling functions. It fits between standard sixteen inch joists and includes adjustable fan speeds and vane directions.

• Operates in heating and cooling modes.

• Includes a built-in condensate lift mechanism.

• Wi-Fi enabled with remote control functionality.

Product Highlights

This indoor unit is efficient and versatile, suitable for various indoor environments.

Product Information

Standard Information

• Brand: Mitsubishi Electric

• MPN: MLZ-KX09NL

Technical Specifications

• Not Included: Grille MLP-449WU

• Unit Type: Indoor Unit

• System Capacity: 9,000 BTU

• Refrigerant Type: R-454B

• Cooling Capacity: 9,000 BTU

• Heating Capacity: 12,000 BTU

• Room Capacity: Up to 350 sq ft

• Airflow Cooling CFM: 201-254-282-311

• Airflow Heating CFM: 212-247-290-325

• Noise Level dB(A), Cooling: 27-31-34-38

• Noise Level dB(A), Heating: 26-29-34-37

• Dimensions: 43-3/8 x 14-3/16 x 7-5/16 inches

• Weight: 34 pounds

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Gas Connection Size: 3/8 inch

• Liquid Connection Size: 1/4 inch

• Remote Control: Wireless

• Wi-Fi Enabled: Yes

• Moisture Removal: 1.6 pints/hour

• Maximum Air Flow: 325 CFM

• Minimum Air Flow: 201 CFM

• Minimum Sound Level: 26 dB

• Maximum Sound Level: 38 dB

• ETL Listed: Yes

• AHRI Certified: Yes
