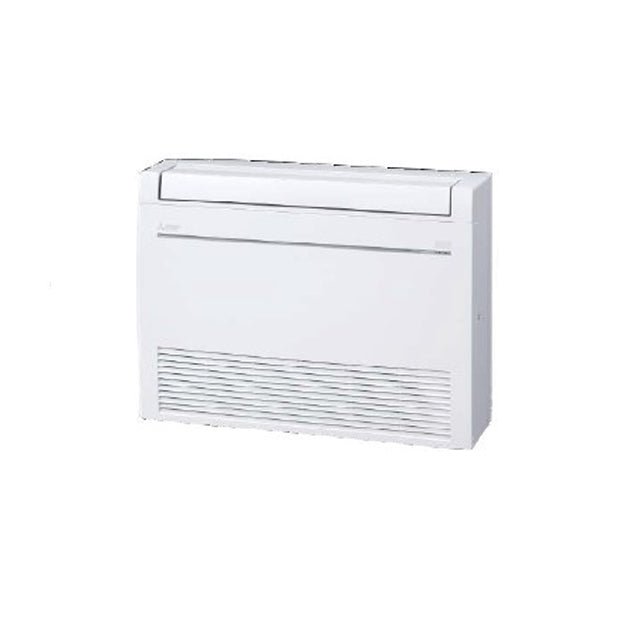

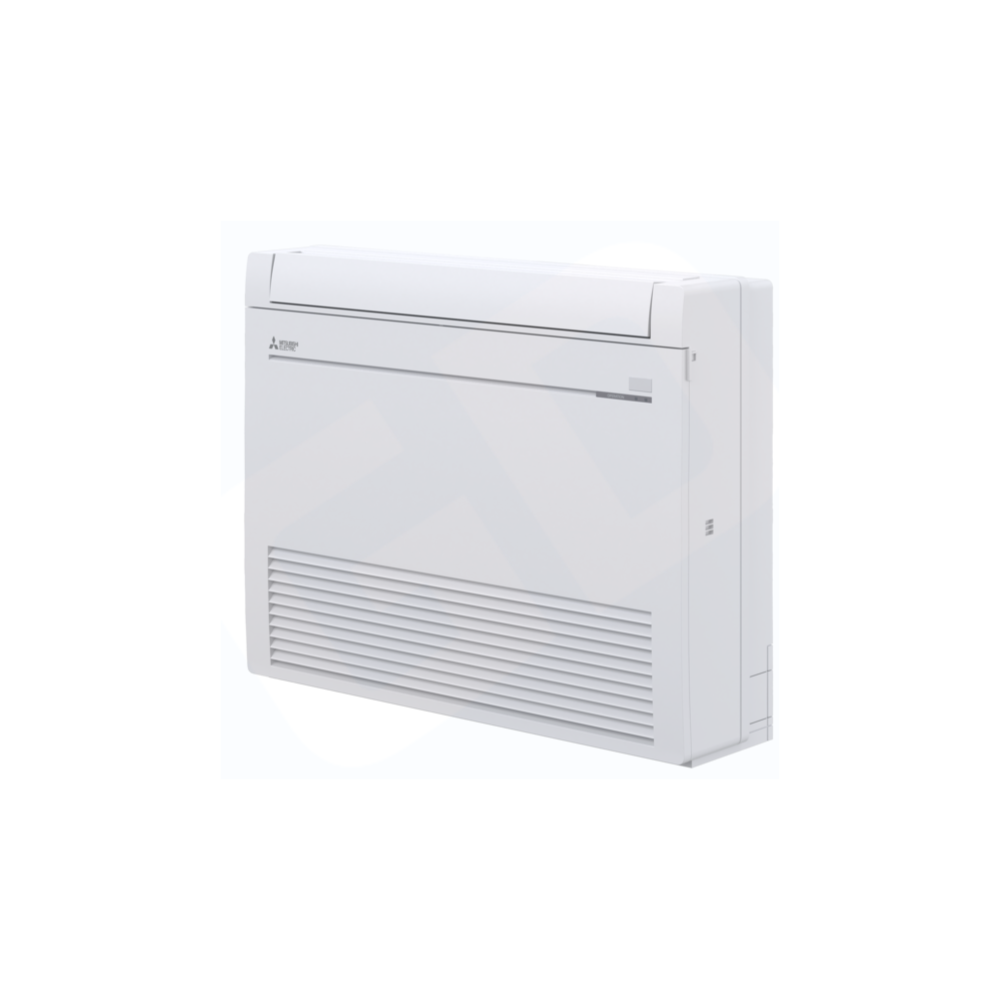

Mitsubishi Electric MFZ-KX15NL Floor Mounted Indoor Unit 15,000 BTU

Product Description

The Mitsubishi Electric MFZ-KX15NL is a 15,000 BTU floor-mounted indoor unit, delivering quiet, energy-efficient heating and cooling. Its design and multi-directional airflow provide comfort in medium to large rooms. It features multiple fan speed options and a Nano Platinum filter to reduce certain nonliving particles. Pairs with compatible outdoor units for climate control.

• Econo Cool adjusts airflow based on heat exchanger temperature to save energy.
• Floor front panel allows easy access to the filter for cleaning.
• Wi-Fi enabled for control over temperature, fan speeds, and modes via the Comfort app.

Product Highlights

The MFZ-KX15NL is perfect for spaces needing floor-mounted units, offering quiet operation and efficient climate control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: MFZ-KX15NL

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: M-Series
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 15,000 BTU
• Line Set Size: 1/4" x 3/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: Yes
• Indoor Unit: MFZ-KX15NL
• Remote Controller: INCLUDED
• Cooling Capacity: up to 15,000 BTU
• Heating Capacity: up to 19,000 - 20,400 BTU
• SEER2: 17.3 - 20.1
• EER2: 12.8 - 13
• HSPF2: 10 - 10.5
• Heating Minimum Temp: -22.5 F/-14 F
• Cooling Minimum Temp: -1 F
• Room Cooling/Heating Capacity: up to 650 sq ft
• Airflow CFM Cooling, Dry: 198-254-311-392-431
• Airflow CFM Cooling, Wet: 168-216-264-333-366
• Airflow CFM Heating, Dry: 212-268-328-399-470
• Noise Level dB(A), Cooling: 28-33-38-43-47
• Noise Level dB(A), Heating: 29-35-40-45-49
• Model Number (s): MFZ-KX15NL
• Brand: Mitsubishi
• Type: Heat Pump
• Cooling Btu: 15,000
• Compressor Stage: Inverter
• Electrical Phase(s): 1-Phase
• Refrigerant Type: R-454B
• Suction Valve Size (Inches): 1/2
• Liquid Valve Size (Inches): 1/4
• Heating Btu: 15,000
• Voltage: 208/230V
• Zones: 1 - Zone
• Additional Information: R-454B Refrigerant
• BTU Rating: 15000 Btu/hr Cooling, 18000 Btu/hr Heating
• CFM Rating: 431 cfm Cooling, 470 cfm Heating
• Connection Type: Flared
• EER Rating: 13
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• HSPF Rating: 10.5
• Mounting Type: Floor
• Phase: 1 ph
• Power Rating: 1150 W Cooling, 1360 W Heating
• SEER Rating: 20.1
• Size: 1/2 in Gas, 1/4 in Liquid
• Sound Level: 47 dBA Cooling, 49 dBA Heating
• Temperature Rating: 67 to 90 deg F
