Mitsubishi Electric M21EAM300 Motor Assy 40W E02897300

Product Description

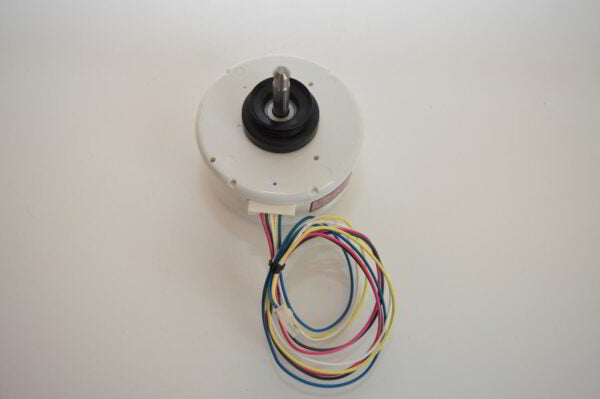

The MITSUBISHI ELECTRIC M21EAM300 Motor Assy is a fan motor assembly designed for specific Mitsubishi Electric indoor units. This 40W motor operates with an 8 mm shaft diameter and features a white connector with 5 wires, measuring 15.5 mm in width. It is compatible with various models, ensuring efficient air circulation. The motor is identified by inscriptions RC0J40-PA 8P 40W DC280V 380V SIC-41CVH-D840-1.

• Features an 8 mm shaft diameter and a 5-wire white connector with a 15.5 mm width.
• Compatible with Mitsubishi Electric MFZ-KJ50VE2-E1, MFZ-KJ50VE2-ER1, MFZ-KJ50VE-E1, MFZ-KJ50VE-ER1, MFZ-KT50VG-E2, and MFZ-KW60VG-E1 models.

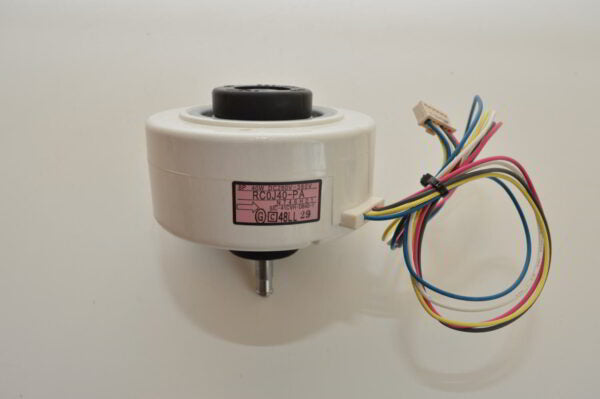

• Identified by motor inscriptions RC0J40-PA 8P 40W DC280V 380V SIC-41CVH-D840-1.

Product Highlights

This MITSUBISHI ELECTRIC M21EAM300 is a 40W fan motor assembly, featuring an 8 mm shaft and a 5-wire connector, suitable for various Mitsubishi Electric indoor units.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: M21EAM300

Technical Specifications

• MPN: M21EAM300
• Replaced By MPN: E02897300
• Part Type: Fan motor
• Motor Inscriptions: RC0J40-PA 8P 40W DC280V 380V SIC-41CVH-D840-1
• Shaft Diameter: 8 mm
• Connector Type: White with 5 wires
• Connector Width: 15.5 mm
• Compatible Models: MFZ-KJ50VE2-E1, MFZ-KJ50VE2-ER1, MFZ-KJ50VE-E1, MFZ-KJ50VE-ER1, MFZ-KT50VG-E2, MFZ-KW60VG-E1
