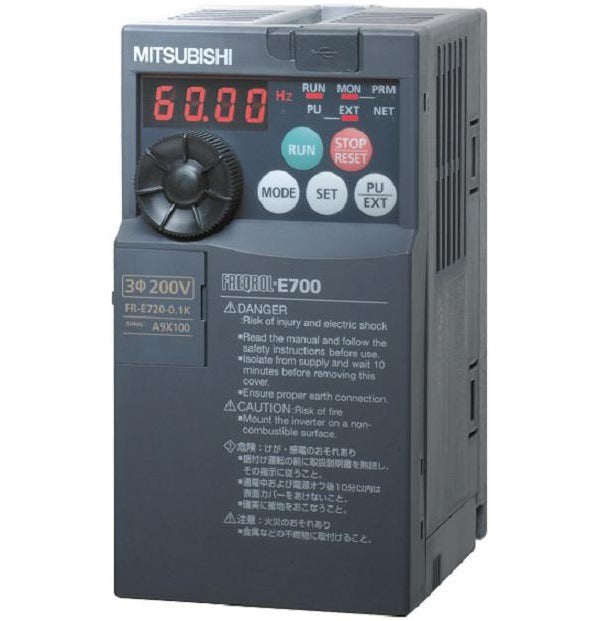

MITSUBISHI ELECTRIC Mitsubishi Electric FR-E720-470SC-NA Freqrol FR-E700 Variable Frequency Drive 11 kW (Equivalent FRE720470SCNA)
MITSUBISHI ELECTRIC Mitsubishi Electric FR-E720-470SC-NA Freqrol FR-E700 Variable Frequency Drive 11 kW (Equivalent FRE720470SCNA)

Mitsubishi Electric FR-E720-470SC-NA Freqrol FR-E700 Variable Frequency Drive 11 kW (Equivalent FRE720470SCNA)

MITSUBISHI ELECTRIC
Brand: MITSUBISHI ELECTRIC
SKU: FR-E720-470SC-NA
Availability: In Stock

Ships same day if ordered by 12 pm
$3,180.13
$3,180.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Mitsubishi Electric FR-E720-470SC-NA is a FREQROL FR-E700 series variable frequency drive (VFD) rated 11 kW (15 HP) for three-phase motors. It accepts 200-240 VAC three-phase input (nominal 220/230 VAC), delivers 0.2-400 Hz output and supplies up to 47 A. The drive supports Modbus RTU over RS-485, includes a safety stop function, features advanced magnetic flux vector control, and is enclosed to IP20.

  • 11 kW (15 HP) three-phase VFD with 200-240 VAC input and 47 A rated current
  • Output frequency range 0.2-400 Hz with advanced magnetic flux vector control and overload rating 150% for 60 s / 200% for 3 s
  • Modbus RTU communication via RS-485, safety stop function, IP20 enclosure, and multiple digital/analog I/O options

Product Highlights

11 kW three-phase VFD; 200-240 VAC input; 0.2-400 Hz output; Modbus RTU; IP20; safety stop; discontinued FREQROL FR-E700 model.

Product Information

Standard Information

  • Brand: MITSUBISHI ELECTRIC
  • Manufacturer Part Number: FR-E720-470SC-NA
Technical Specifications
Brand
Mitsubishi Electric
Manufacturer Part Number
FR-E720-470SC-NA
Equivalent MPN
FRE720470SCNA
Product Series
FREQROL FR-E700 series
Product Type
Variable speed/frequency drive (VSD/VFD) / Inverter
Region Specification
US/CA/MX
Input Voltage
200-240 VAC (220/230 VAC nominal)
Input Frequency
50/60 Hz
Phase
Three-phase
Output Frequency
0.2-400 Hz
Rated Power (kW)
11 kW
Rated Power (HP)
15 HP
Rated Current (A)
47 A
Rated Apparent Power
18.7 kVA
IP Rating
IP20
Communication Protocol
Modbus RTU (RS-485)
Control Method
Advanced magnetic flux vector control
Digital Inputs
Multiple source/sink digital inputs including safety stop channels
Digital Outputs
SPDT fault contact; open collector transistor outputs (RUN, FU, PTO)
Analog Inputs
0-5 VDC / 0-10 VDC and 4-20 mA options
Overload Rating
150% In for 60 s; 200% In for 3 s
Protection Functions
Overcurrent, overvoltage, thermal, stall prevention, short circuit, phase failure, CPU fault, communication error and others
Ambient Operating Temperature
-10 to +50 degrees C
Mounting/Design Notes
Backwards-compatible mounting dimensions with FR-E500; spring clamp terminals; plug-in expandability
Manufacturer Product Status
Discontinued
Standards/Compliance
EN/ISO13849-1 Cat.3; EN62061; IEC61508; UL; cUL; CE; KC; EAC; RoHS; SIL2; PLd
Applications
Transfer, lift, machine tool, press
