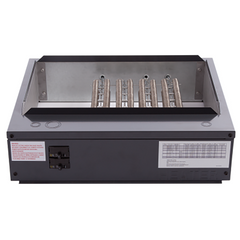

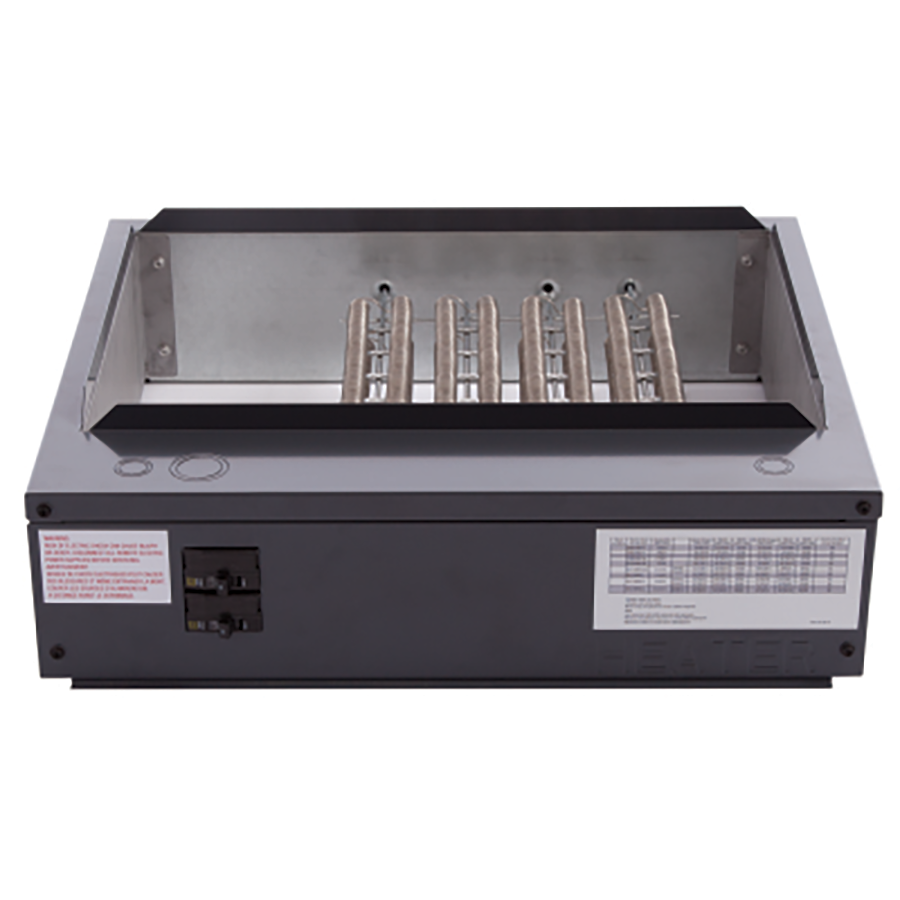

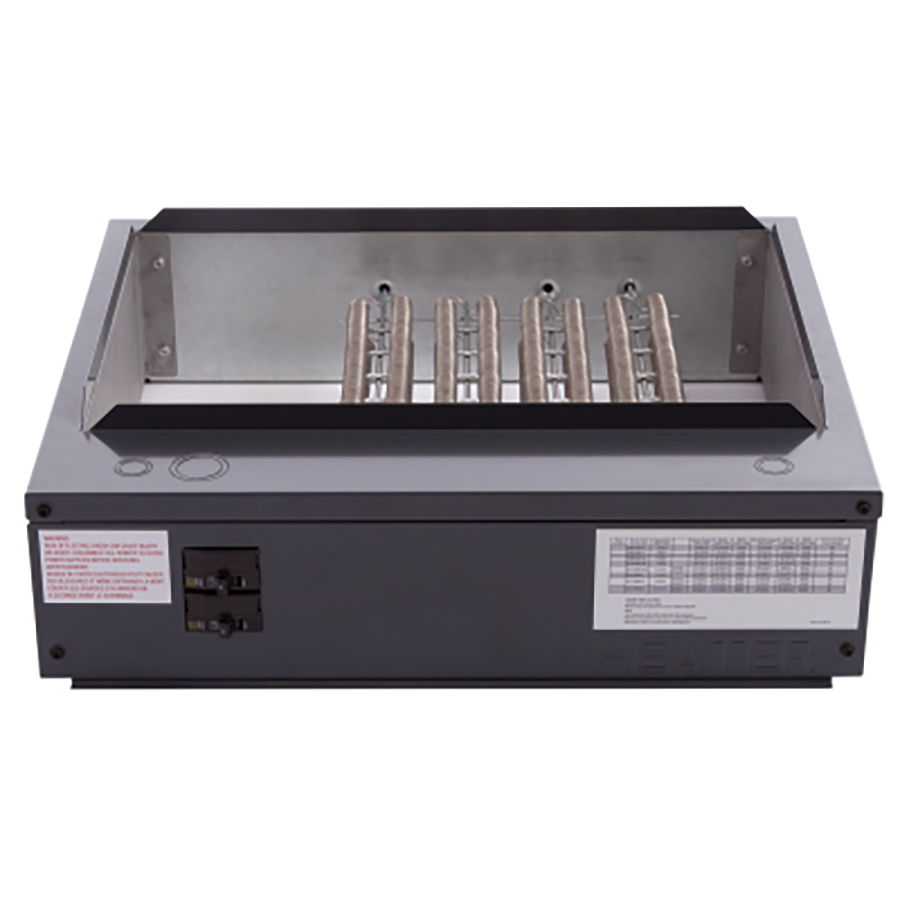

Mitsubishi Electric EH05-MPA-MB Heat Kit 5 Kw Pva

Product Description

The MITSUBISHI ELECTRIC EH05-MPA-MB is a 5 kW electric heat kit designed for use with PVA multi-position air handlers. It provides supplemental or backup electric heat within a ductless or ducted mini-split system. Rated for 208 to 240 volts AC, this heat kit installs directly into compatible air handler cabinets and allows the system to deliver electric resistance heat when the heat pump alone cannot meet demand. Licensed HVAC technicians handle installation as part of a complete system commissioning or retrofit.

This heat kit is intended for residential and light commercial applications where a PVA series multi-position air handler is already installed. It is well suited for climates that require electric auxiliary or emergency heat capacity during low outdoor ambient conditions. The kit integrates with the existing air handler controls and does not require a separate enclosure or standalone wiring cabinet.

Key Features

• 5 kW electric resistance heating capacity for supplemental or auxiliary heat
• Rated for 208 to 240 volts AC operation
• Designed for direct installation into PVA multi-position air handler cabinets
• Supports auxiliary and emergency heat modes in mini-split system configurations
• OEM-style fit eliminates need for field fabrication or adapter components

Compatibility

Designed for use with MITSUBISHI ELECTRIC PVA multi-position air handlers, including PVA 24 and PVA 30 series units.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and the NEC. Disconnect all power to the air handler before opening the cabinet or making any electrical connections. Verify that the circuit supplying the heat kit is properly sized for 208 to 240 volt AC operation at the rated amperage. Follow the manufacturer installation instructions for proper mounting, wiring termination, and control integration before restoring power.

Technical Specifications

• Voltage: 208 to 240 volts AC
• Heating Capacity: 5 kW
• Item Type: Heat Kit

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: EH05-MPA-MB
