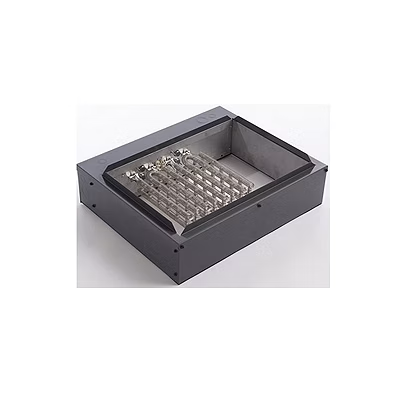

Mitsubishi Electric EH03-SVZ-S Electric Heater Module 3kW (Small)

Product Description

The MITSUBISHI ELECTRIC EH03-SVZ-S is a 3kW electric heater module designed for small cabinets. This optional electric heat kit is designed for Mitsubishi multi-position air handlers and requires a separate electric line. It mounts directly to the air outlet connection of the Multi-position Air Handler. It is suitable for use with SVZ-KP Multi-Position Air Handlers.

• Optional electric heat kit
• For Mitsubishi multi-position air handlers
• Requires separate electric line

Product Highlights

The MITSUBISHI ELECTRIC EH03-SVZ-S electric heater module provides supplemental heat for compatible Mitsubishi air handlers.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: EH03-SVZ-S

Technical Specifications

• Manufacturer: Mitsubishi
• Manufacturer #: EH03-SVZ-S
• Parts Town #: MITEH03-SVZ-S
• Power Rating: 3 kW
• Suitable For Use With: SVZ-KP Multi-Position Air Handlers
• Brand: Mitsubishi Electric HVAC
• Item: Electric Heater Kit
• Used On Item: Residential Multi-Position Heat Pump Air Handler Unit
• Used On Item Part No: SVZ-KP12NA/SVZ-KP18NA/SVZ-KP24NA
• Used On Model/Brand: SVZ-KP
• Voltage Rating: 208/240 Volt AC 60 Hertz
• Current Rating: 10.8 Amp at 208 Volt/12.5 Amp at 240 Volt (Heater), 13.5 Amp at 208 Volt/15.6 Amp at 240 Volt (MCA), 15 Amp at 208 Volt/20 Amp at 240 Volt (MOP)
• Static Pressure Rating: 0.6 Inch WC
• Outlet Air Temperature Rating: 200 Deg F
