Mitsubishi 109166 WNMG432 Carbide Turning Insert

Product Description

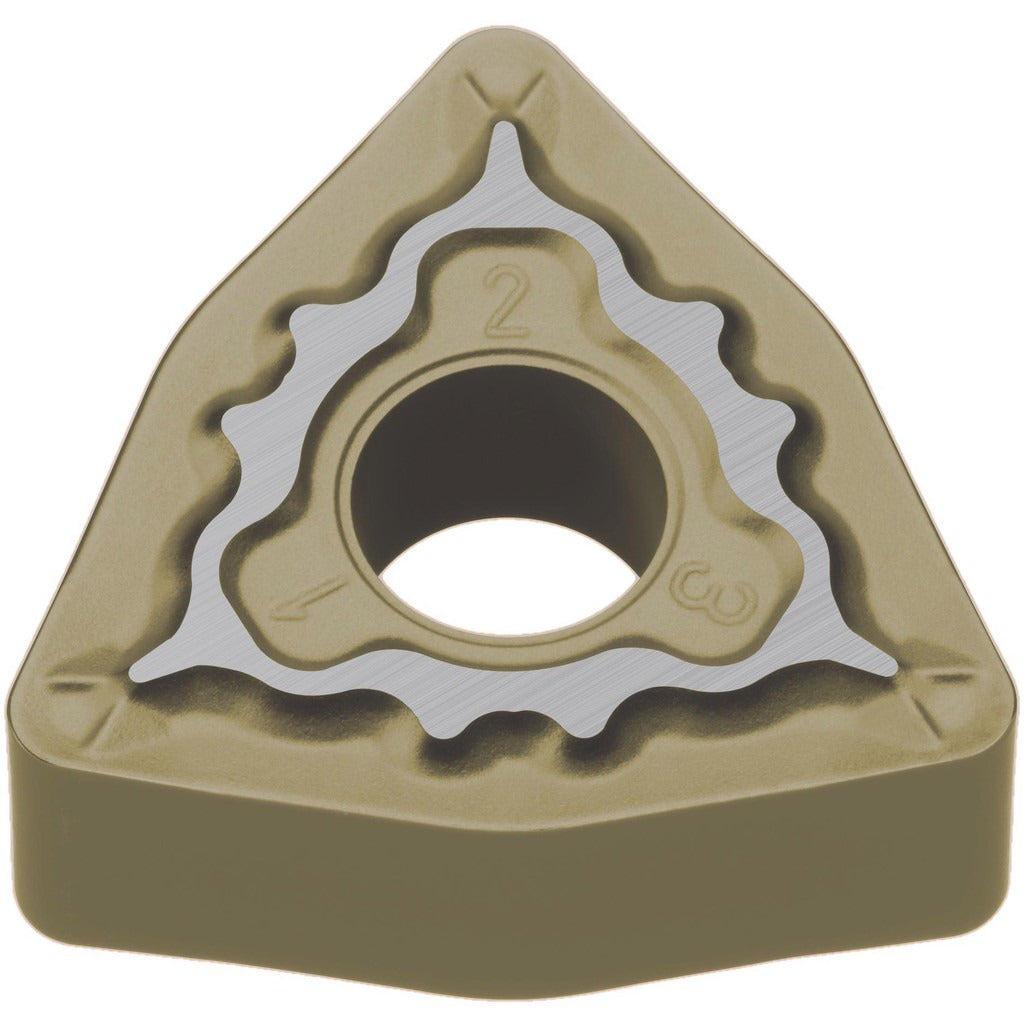

The MITSUBISHI 109166 is a WNMG432 indexable carbide turning insert designed for precision metal cutting on CNC and manual lathes. It carries the ISO designation WNMG080402 and is manufactured in grade US735 with a CVD coating. The insert features a trigon W-shape with an 80-degree included angle, a 0 degree relief angle (negative side clearance), and a 0.80 mm (1/32 inch) corner radius. With six available cutting edges, this insert delivers consistent performance in medium machining operations on stainless steel and other ISO M-class workpiece materials. It is intended for installation and use by machinists and CNC operators working in production or job-shop environments.

This insert is suited for medium machining of stainless steel and ISO M-class materials where a balance of wear resistance and toughness is required. The MS chip breaker geometry is optimized for moderate cutting conditions on austenitic and other stainless alloys. It fits standard WNMG-style toolholders with a 1/2 inch inscribed circle and is appropriate for both roughing passes and semi-finish turning where controlled chip breaking is a priority. Typical applications include shaft turning, facing, and contour operations on stainless components in aerospace, medical, and industrial manufacturing.

Key Features

• WNMG432 (ISO WNMG080402) geometry with 80-degree included angle for strong cutting edge
• CVD coating on US735 carbide grade for wear resistance and toughness on stainless steel
• MS chip breaker optimized for medium machining of ISO M-class materials
• Six cutting edges per insert for extended tool life and lower per-edge cost
• 0.80 mm (1/32 inch) corner radius for a balance of edge strength and surface finish
• Neutral hand insert compatible with standard WNMG toolholder systems

Compatibility

Designed as a direct-fit replacement for standard WNMG432 indexable insert seats. Compatible with any WNMG-style toolholder accepting a 1/2 inch inscribed circle, 3/16 inch thick insert with a negative clearance (N) and medium tolerance (M) seat. Verify toolholder pocket specifications before installation.

Installation Notes
