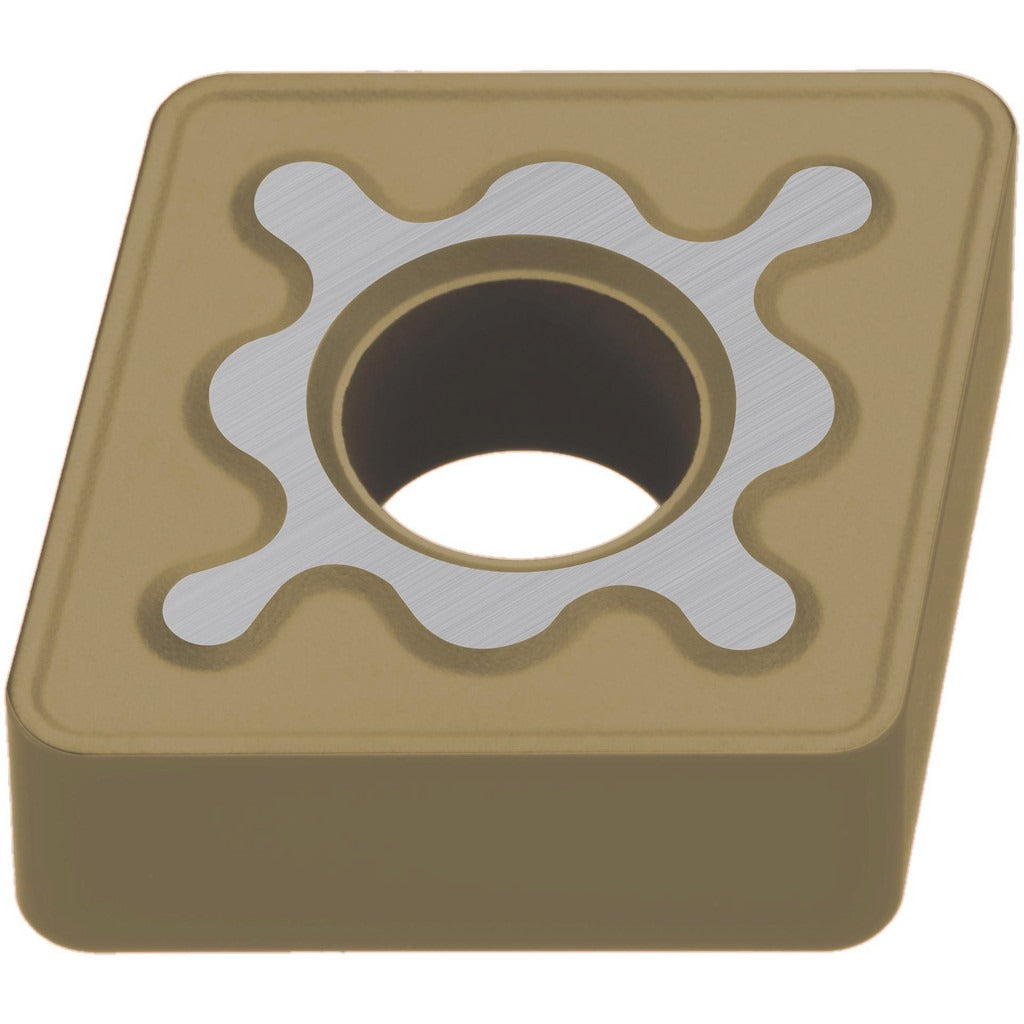

Mitsubishi 10636930 Cnmg Turning Insert Carbide

Product Description

The MITSUBISHI 10636930 is a CNMG-style indexable turning insert designed for external and internal turning operations on CNC lathes and turning centers. It features a rhombic insert shape with an 80-degree included angle, a 0.0469 inch (3/64 inch) corner radius, and a neutral hand orientation. The insert is manufactured from carbide substrate with a CVD coating in MITSUBISHI grade MC6125, making it well suited for general-purpose steel and cast iron turning. With four usable cutting edges per insert, it delivers consistent performance across multiple indexing cycles.

This insert is used in moderate to high-production turning environments, including both roughing and finishing passes depending on feed and depth of cut selection. It fits standard CNMG toolholders and is appropriate for shops running CNC turning centers in job shop or production settings. The chip breaker designation is GH, which is intended for general-purpose cutting across a range of workpiece materials. Installation and indexing are performed by licensed machinists or CNC operators following standard toolholder torque and seating procedures.

Key Features

• CNMG insert style with 80-degree rhombic shape for versatile turning applications
• CVD coating in MC6125 grade for extended tool life on steel and cast iron
• 0.0469 inch corner radius for general-purpose profiling and finishing
• Four cutting edges per insert to maximize value per unit
• Neutral hand orientation fits standard right- and left-hand CNMG toolholders
• GH chip breaker geometry for broad material compatibility

Compatibility

Designed as a direct-fit replacement for standard CNMG-style indexable turning toolholders accepting a 0.5000 inch inscribed circle insert with a 3/16 inch thickness.

Installation Notes

Indexable turning inserts are seated and secured by qualified machinists or CNC operators using the appropriate CNMG toolholder and insert clamping hardware. Power down and lock out the machine spindle before indexing or replacing the insert. Ensure the insert pocket is clean and free of chips or debris before seating to prevent improper clamping and premature edge failure. Follow the toolholder manufacturer torque specifications for the clamping screw.
