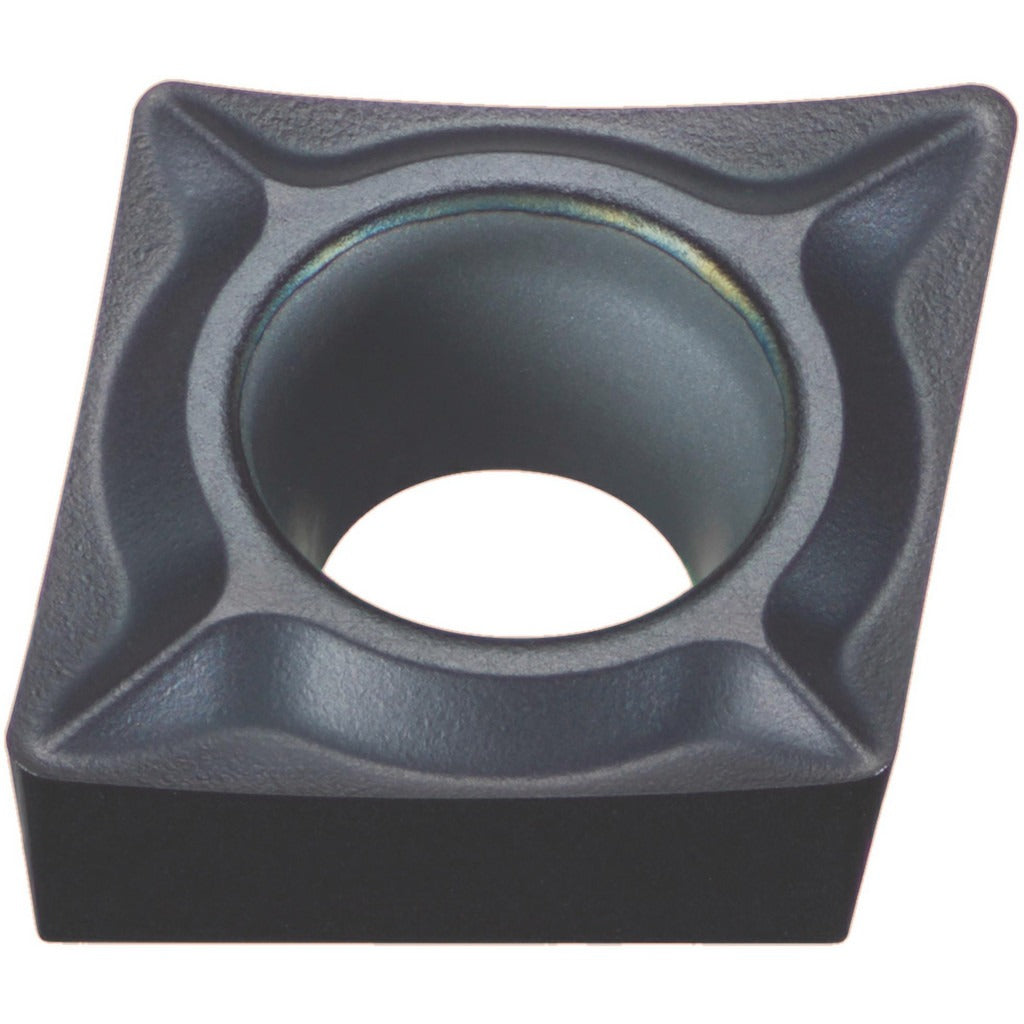

Mitsubishi 10576281 Ccgt Turning Insert MP9015 Carbide

Product Description

The MITSUBISHI 10576281 is a CCGT-style carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. Built to the CCGT insert standard, it features an 80-degree rhombic shape with a 7-degree relief angle and a 0.20 mm (0.0079 inch) corner radius. The insert grade is MP9015 with a PVD coating applied for wear resistance and edge retention during finishing and semi-finishing operations. Neutral hand orientation makes it compatible with a wide range of standard CCGT toolholders. Machinists and CNC operators install this insert as part of indexable tooling setups in production turning applications.

This insert is suited for light to moderate turning operations where tight tolerances and fine surface finishes are required. The CCGT geometry with the FS chip breaker designation supports controlled chip flow in finishing cuts. The 3/8-inch inscribed circle and 5/32-inch insert thickness conform to standard CCGT sizing, making it a direct fit in toolholders built to those dimensions. It is commonly used in job shops, production facilities, and aerospace or precision component manufacturing environments where carbide insert performance is critical.

Key Features

• CCGT insert style with 80-degree rhombic shape and neutral hand orientation
• MP9015 grade with PVD coating for extended tool life in finishing applications
• 0.20 mm corner radius for fine surface finish requirements
• 7-degree relief angle (clearance code C) for reduced cutting forces
• FS chip breaker for controlled chip evacuation during finishing cuts
• 2 usable cutting edges per insert for cost-effective indexing

Compatibility

Designed as a direct-fit replacement for CCGT-style indexable turning insert seats with a 3/8-inch inscribed circle and 5/32-inch insert thickness conforming to standard CCGT toolholder specifications.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench and manufacturer-specified clamping hardware when seating the insert to avoid chipping the cutting edge. Inspect the insert pocket and clamping components for wear or debris before installing a new insert.
