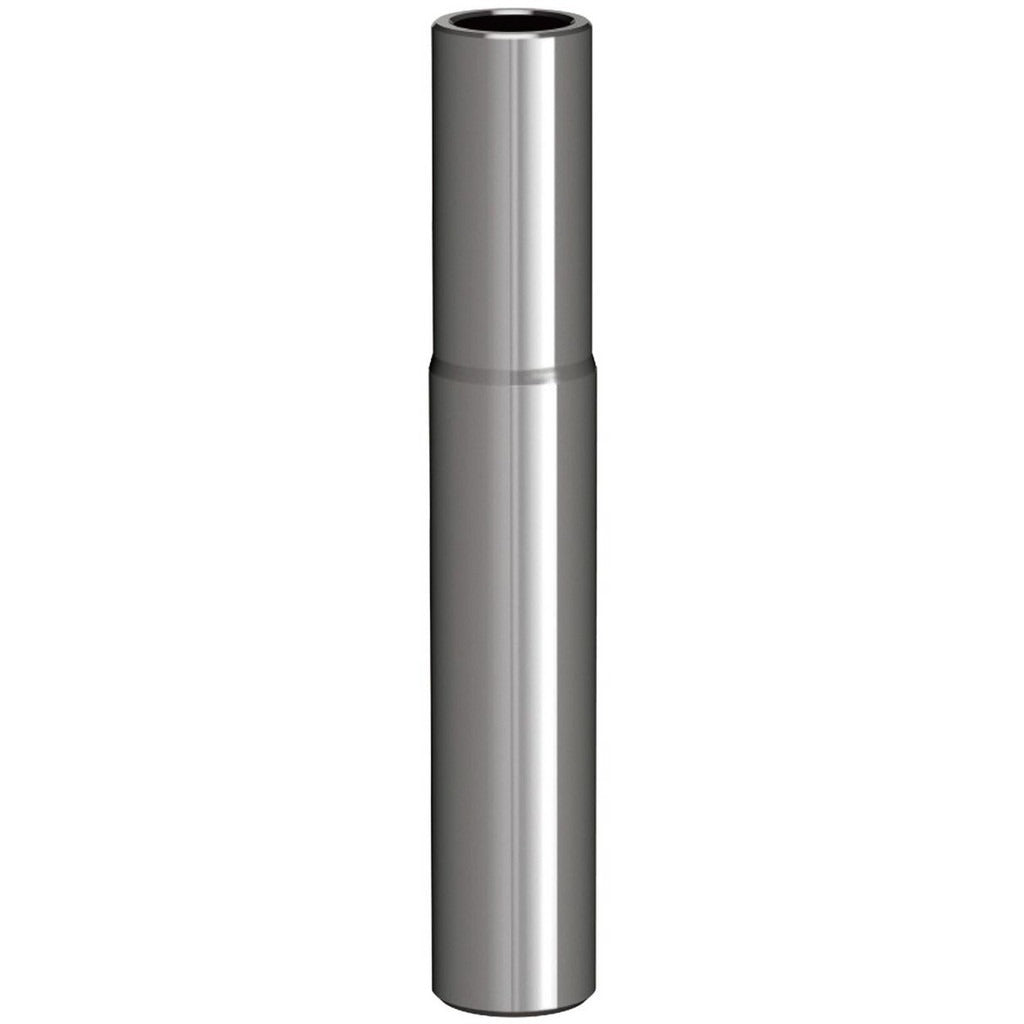

Mitsubishi 10532850 End Mill Holder Adapter 0.6250in Straight

Product Description

The MITSUBISHI 10532850 is a straight-shank end mill holder adapter designed for use in CNC machining applications requiring precise tool retention and minimal runout. Part of the iMX series, this holder features a 0.6250-inch shank diameter and an overall length of 3.1490 inches, making it a compact yet capable tooling interface for end mill heads. Internal through-coolant capability is built in, supporting high-efficiency cutting operations. With a maximum rated speed of 10,000 RPM and a TIR of 0.0002 inches (0.0050 mm), this holder is suited for applications where concentricity and surface finish are critical. Machinists and CNC setup technicians working in job shops, production facilities, or toolroom environments are the typical end users.

This holder is designed for use with the iMX16 end mill head and iMX16 end mill holder system. The straight machine-side connection interfaces with 15.88 mm bores, and the tooling side uses a threaded connection type. A clamping depth of 1.2500 inches (1-1/4 inches) provides secure engagement. The projection from the nose measures 1.8984 inches (48.22 mm), which determines tool stick-out in the setup. This adapter is appropriate for both roughing and finishing operations where stable, repeatable tool holding is required in vertical or horizontal machining centers.

Key Features

• 0.6250-inch straight shank diameter with 15.88 mm hole diameter for consistent fit
• Maximum speed rating of 10,000 RPM for high-speed machining compatibility
• TIR of 0.0002 inches (0.0050 mm) for tight concentricity control
• Internal through-coolant support for improved chip evacuation and tool life
• Threaded tooling-side connection type for positive engagement with iMX16 end mill heads
• Clamping depth of 1.2500 inches for secure tool retention

Compatibility

Designed for use with the iMX16 end mill head as part of the MITSUBISHI iMX series modular tooling system.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling setup technician. Ensure the machine spindle is fully stopped and the controller is in a safe state before mounting or removing tooling. Verify that the threaded connection is fully engaged and torqued according to the machine tool builder and tooling system guidelines before operation. Confirm through-coolant passages are clear and unobstructed prior to running the spindle.
