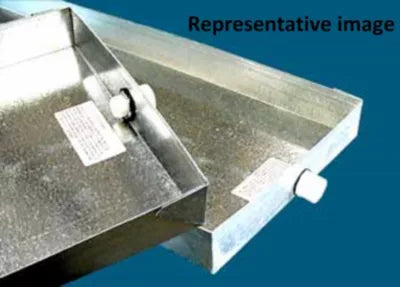

Mitek dp-s3030 Seamless Drain Pan 30x30 26 Gauge

Product Description

The MITEK dp-s3030 is a one-piece seamless drain pan designed for HVAC condensate management in residential and light commercial applications. Constructed from 26-gauge galvanized steel with formed corners, it eliminates the failure points associated with caulked or soldered seams. The pan measures 30 inches by 30 inches and ships with a PVC fitting included but not pre-installed. The stackable profile reduces storage space by approximately 85 percent compared to non-nesting designs, making it practical for distributors, wholesalers, and service contractors managing inventory. Licensed HVAC technicians and mechanical contractors are the primary installers of this product.

This drain pan is suited for installation beneath air handlers, fan coils, and similar HVAC equipment where condensate collection is required. The 30-inch by 30-inch footprint accommodates a wide range of residential and light commercial air handler sizes. The galvanized single-piece construction is appropriate for attic, closet, utility room, and mechanical room installations where a secondary containment pan is required by code or best practice.

Key Features

• One-piece 26-gauge galvanized steel construction with no seams at corners
• Formed corners eliminate the risk of leaks from caulked or soldered joints
• Stackable nested design reduces storage space by approximately 85 percent
• PVC drain fitting included with each pan (not pre-installed)
• Protects edges during storage and handling through nested stacking

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for residential and light commercial HVAC air handlers and fan coil units requiring a 30-inch by 30-inch secondary condensate containment pan.

Installation Notes

Installation is typically performed by a licensed HVAC technician or mechanical contractor. Disconnect and lock out power to the air handler before positioning the drain pan. Install the included PVC fitting to the pan knockout before setting equipment in place, and verify the fitting connects to a proper condensate drain line per local mechanical code requirements. Do not use the pan as a primary structural support for equipment unless the installation design specifies it.

Technical Specifications

• Gauge: 26 gauge
• Material: Galvanized steel
• Length: 30 inches
• Width: 30 inches
• Construction: One-piece seamless
• Drain Fitting: PVC fitting included, not pre-installed
• Unit of Measure: Each

Standard Information

• Brand: MITEK
• Manufacturer Part Number: dp-s3030
