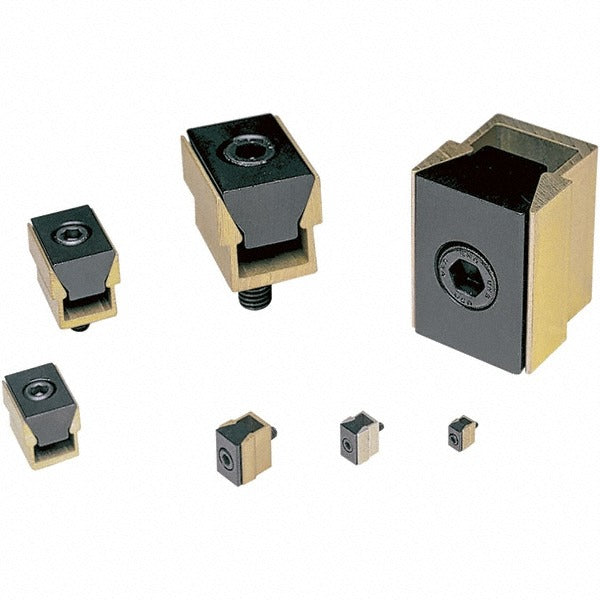

Mitee-bite 60750 Single T-slot Wedge Clamp 1500 Lb

Product Description

The MITEE-BITE 60750 is a single wedge-style T-slot clamp rated at 1,500 pounds of holding force, designed for workholding applications on machining centers and milling machines. The clamp base measures 0.635 inches wide by 0.94 inches deep by 0.75 inches high, with a jaw spread range of 0.735 to 0.785 inches and a drive torque spec of 10.8 pound-feet using a 1/4-20 screw thread. It is installed by machinists and CNC setup technicians who need compact, reliable workholding in tight fixture layouts.

This clamp is suited for machine shop environments where T-slot tables require secure part fixturing without large footprint clamping hardware. Its compact profile is particularly useful in multi-part fixture setups and tombstone or pallet configurations where minimizing clamping envelope is a priority. The wedge engagement design allows for positive holding force with minimal vertical height, keeping the clamping assembly below the cutting plane in many setups.

Key Features

• 1,500 pounds of holding force from a single wedge engagement
• Compact base profile — 0.635 inches wide by 0.94 inches deep by 0.75 inches high
• Jaw spread range of 0.735 to 0.785 inches for T-slot engagement
• 1/4-20 screw thread drive for standard tooling compatibility
• 10.8 pound-feet actuation torque — achievable with standard hand tools
• Single wedge style reduces fixture height and minimizes tool clearance conflicts

Compatibility

Designed for use in standard T-slot tables and fixture plates where the T-slot dimensions are compatible with a 0.735 to 0.785 inch jaw spread range.

Installation Notes

Installation is performed by machinists or CNC setup technicians during fixture buildout. Power down and lock out the machine spindle before adjusting or repositioning any workholding components. Use a calibrated torque wrench or driver to apply the specified 10.8 pound-feet of torque to the 1/4-20 drive screw — do not overtorque, as this can damage the wedge or T-slot. Verify part seating and clamp engagement before initiating any cutting operation.
