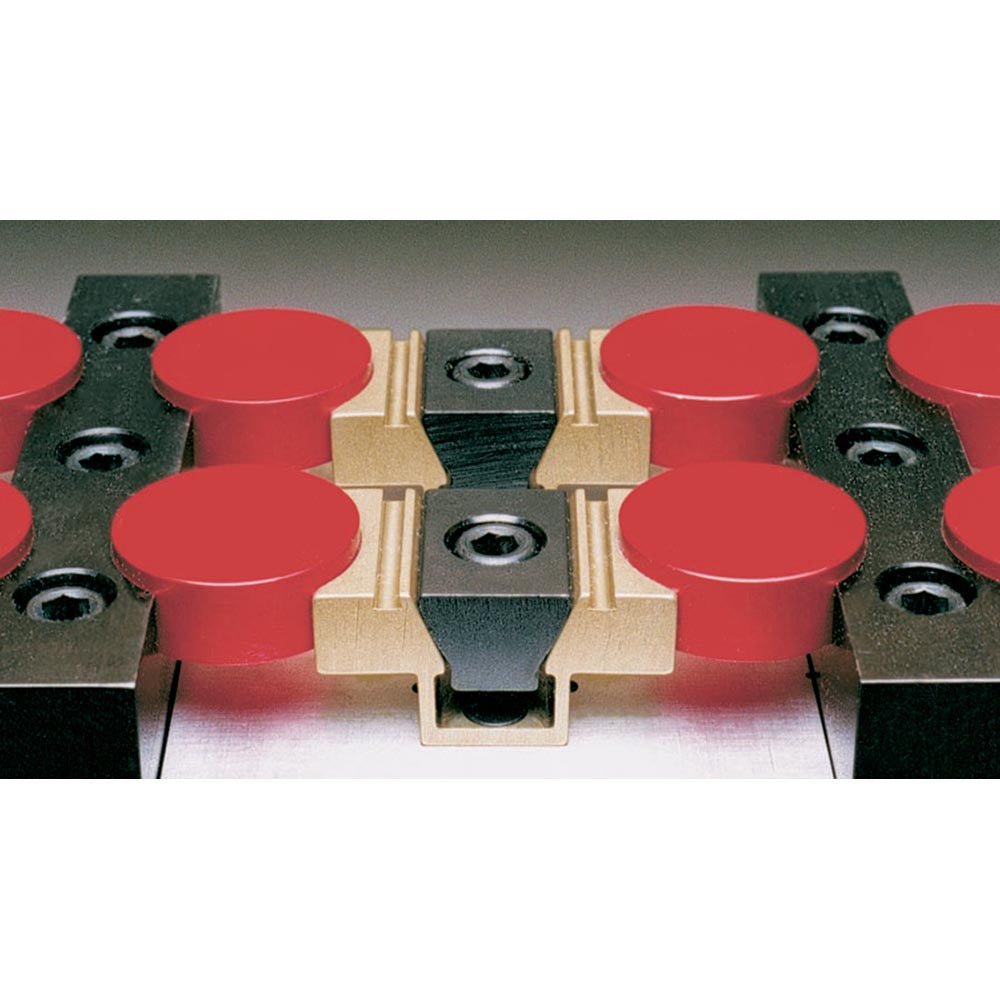

Mitee-bite 60075 Single T-slot Machinable Wedge Clamp

Product Description

The MITEE-BITE 60075 is a single-style machinable wedge clamp designed for T-slot workholding applications on milling machines, machining centers, and similar CNC or manual machine tool setups. It delivers 1,500 pounds of holding force at 10.8 ft/lb of torque, making it a reliable choice for securing workpieces during heavy cutting operations. The base measures 1.5 inches wide by 0.632 inches deep by 0.75 inches high, with a 1/4-20 screw thread. The machinable body allows the clamp to be customized to match specific workpiece profiles when standard geometry is not sufficient. Licensed machinists and toolroom technicians are the primary installers.

This clamp is suited for use in T-slots on machine tool tables in both production and job-shop environments. Its compact profile keeps it out of the way of cutting tools and fixtures while still generating substantial clamping force. The single-wedge design is appropriate for applications where one-sided clamping is preferred or where space constraints limit the use of larger clamp assemblies. Each unit ships with a locking plate and mounting screw included, so no additional hardware is required for basic installation.

Key Features

• 1,500 lb holding force with 10.8 ft/lb applied torque
• Machinable body allows field modification to fit custom workpiece profiles
• Single-wedge design for compact, one-sided T-slot clamping
• 1/4-20 screw thread for standard toolroom hardware compatibility
• Includes locking plate and mounting screw — no additional hardware needed
• Base clearance width of 1.5 inches suits common T-slot table configurations

Compatibility

Designed for use in standard T-slot machine tool tables where the T-slot width accommodates a 1.5-inch clearance width clamp body. Confirm table slot dimensions before installation.

Installation Notes

Installation is typically performed by machinists or toolroom technicians. Power down and lock out the machine before placing or adjusting any workholding component. Torque the 1/4-20 clamping screw to the specified 10.8 ft/lb using a calibrated torque wrench — do not exceed this value, as over-torquing can damage the wedge body or distort the T-slot. Verify that the locking plate is fully seated in the slot before applying clamping force.
