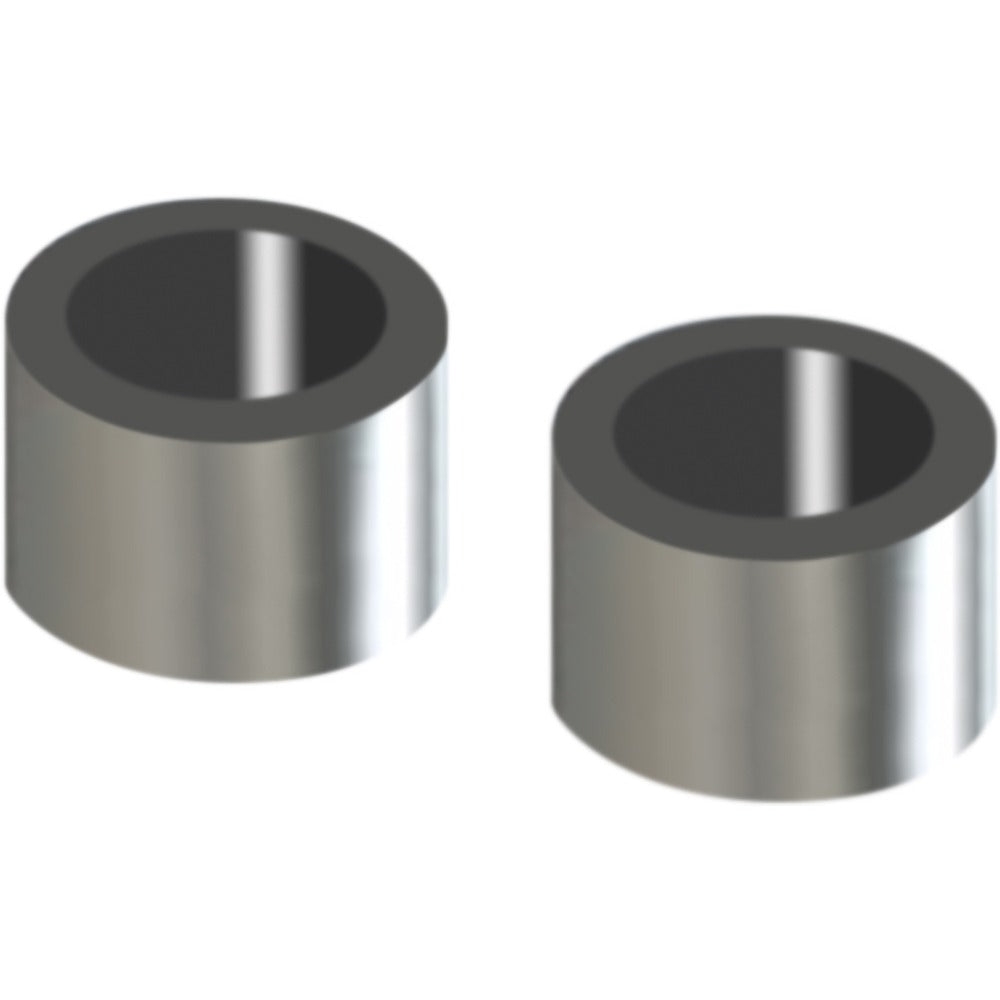

Mitee-bite 45070 Locating Bushing 0.4727 in Id Pack of 2

Product Description

The MITEE-BITE 45070 is a locating bushing designed to provide precise positioning and alignment in machining fixtures, jigs, and workholding setups. With a maximum inside diameter of 0.4727 inches (11.99 mm) and a maximum outside diameter of 0.7102 inches (18.03 mm), this bushing delivers close-tolerance fitment where repeatable part location is required. Sold in a pack of two, the 45070 suits production environments where spare or paired bushings are needed on a single fixture. Machinists, toolmakers, and fixture builders are the primary installers of this component.

This locating bushing is suited for use in precision machining fixtures, drill jigs, and modular workholding systems where accurate and repeatable part registration is critical. It is applicable in both low-volume prototype tooling and higher-volume production fixture builds. The compact outer diameter makes it compatible with standard bushing-plate layouts and close-centerline fixture designs. MITEE-BITE components are commonly specified in CNC machining and milling environments where tight positional tolerances must be maintained across multiple setups.

Key Features

• Maximum inside diameter of 0.4727 inches (11.99 mm) for close-tolerance bore fitment
• Maximum outside diameter of 0.7102 inches (18.03 mm) for standard bushing-plate installation
• Pack of 2 units per package, supporting paired or replacement applications
• Lightweight at 0.06 pounds per package, minimizing fixture mass impact
• UNSPSC Code 31162900, consistent with precision locating and positioning hardware classifications

Compatibility

Designed as an OEM-style replacement or direct-fit locating bushing for precision machining fixtures and jigs requiring a 0.4727 inch ID and 0.7102 inch OD bushing interface.

Installation Notes

Installation of locating bushings is typically performed by toolmakers or machinists during fixture assembly or maintenance. Press-fit or slip-fit installation methods should be confirmed against the mating bore tolerance before assembly. Always verify that the fixture plate or receiver bore is clean and free of burrs before inserting the bushing. Do not force the bushing into an undersized bore without confirming the intended fit class, as damage to the bushing or fixture plate may result.
