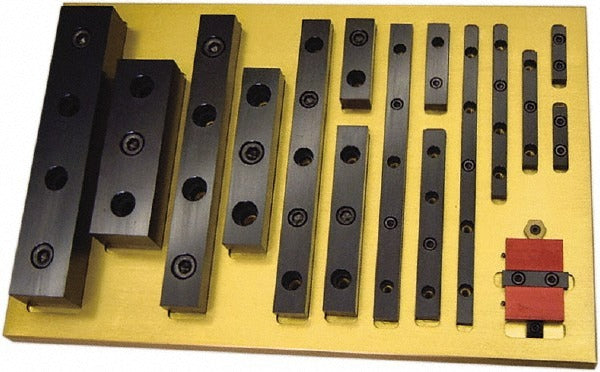

Mitee-bite 33280 Locating Positioning Rail 3 Hole Low Carbon Steel

Product Description

The MITEE-BITE 33280 is a 3-hole locating and positioning rail used to accurately register and secure workpieces during machining, fixturing, and tooling setup operations. Manufactured from low carbon steel, this rail measures 6 inches long, 0.98 inches wide, and 0.73 inches high. The 3/8-16 thread size provides a standard threaded interface for clamping and securing the rail to fixture plates or machine tables. Machinists, toolmakers, and fixture builders install this component as part of precision workholding setups on CNC and manual machining equipment. A tungsten carbide coating can be added to the rail surface to increase holding force when required by the application.

This rail is suited for use in machine shops, tool rooms, and production fixturing environments where precise part location is critical. It functions as a reference edge or stop in both dedicated fixtures and modular workholding systems. The 3/8-16 thread size is a common standard in American fixturing and tooling systems, making this rail a straightforward fit for existing setups. Applications include milling fixture bases, drill jigs, and modular tooling plates used in both prototype and production runs.

Key Features

• Low carbon steel construction provides durability in machining and fixturing environments
• 3-hole configuration allows for multiple mounting and registration points along the rail length
• 3/8-16 thread size aligns with common American fixturing standards
• Compatible with optional tungsten carbide coating to increase holding force
• Compact profile at 0.98 inches wide and 0.73 inches high reduces interference in tight fixture layouts

Compatibility

Designed as an OEM-style component for use in modular workholding and precision fixturing systems that accept 3/8-16 threaded rail hardware.

Installation Notes

Installation is typically performed by machinists or toolmakers using standard hand tools. Secure the rail to the fixture plate or machine table using the appropriate 3/8-16 fasteners, ensuring all mounting surfaces are clean and free of chips or burrs before assembly. Power down and lock out any associated machine before working in the fixturing zone. Verify proper seating and alignment against a reference edge before final torque is applied to fasteners.
