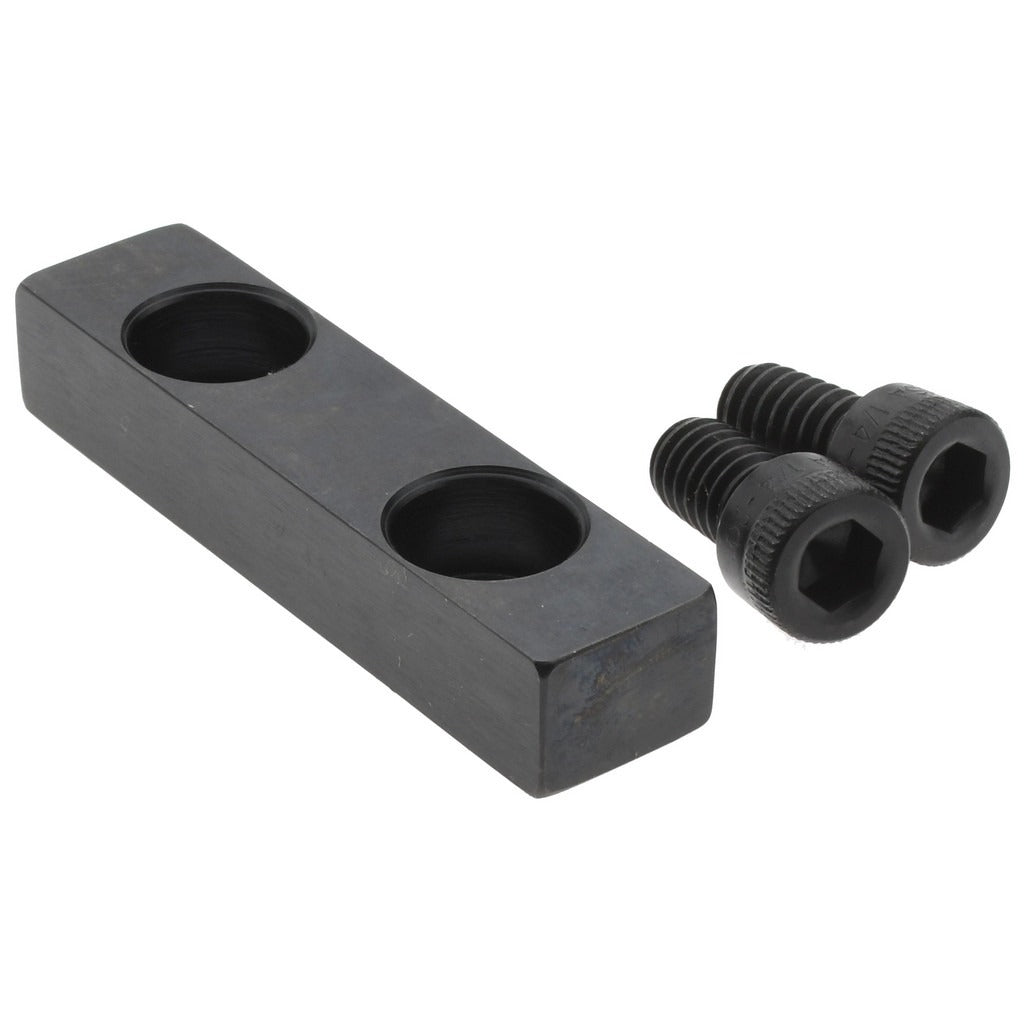

Mitee-bite 33120 2 Hole Locating Positioning Rail

Product Description

The MITEE-BITE 33120 is a two-hole locating and positioning rail used in precision workholding and fixturing applications. Machined from low-carbon steel, this rail measures 2 inches long, 0.48 inches wide, and 0.35 inches high. It features a 1/4-20 thread with a thread length of 0.38 inches. The part is designed to accurately locate and hold workpieces in place during machining, assembly, or inspection operations. A tungsten carbide coating can be added to increase holding force when higher clamping performance is required. This component is typically installed by machinists, tool and die makers, and fixturing specialists working in manufacturing environments.

The 33120 positioning rail is suited for use in machine tool fixtures, jigs, and workholding setups where consistent part location is critical. It is appropriate for light-duty to medium-duty fixturing on CNC machining centers, manual mills, and inspection fixtures. The two-hole configuration allows secure fastening to fixture plates or tooling bases using 1/4-20 fasteners. This rail is sold individually and is a direct replacement or supplemental component for fixturing systems that require low-carbon steel locating rails.

Key Features

• Low-carbon steel construction provides reliable strength for standard fixturing loads
• Two-hole design allows secure fastening to fixture plates or tooling bases
• 1/4-20 thread size with 0.38 inch thread length for compatibility with standard fixturing hardware
• Compact profile at 2 inches long, 0.48 inches wide, and 0.35 inches high fits tight fixture layouts
• Optional tungsten carbide coating available to increase holding force on high-demand applications

Compatibility

Designed as an OEM-style replacement or supplemental locating rail for precision fixturing systems that accept 1/4-20 low-carbon steel positioning rails.

Installation Notes

Installation is typically performed by machinists or fixturing technicians using standard hand tools. Ensure the mounting surface is clean and flat before seating the rail to maintain accurate part location. Torque fasteners evenly and verify rail alignment with a dial indicator or gauge pin before locking down. If adding a tungsten carbide coating, consult the coating provider for surface preparation requirements prior to installation.
