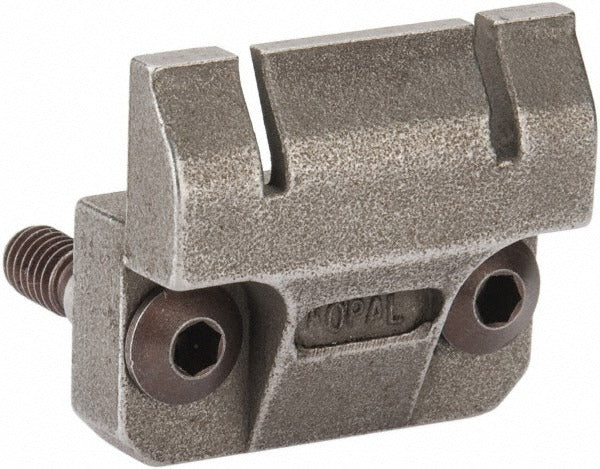

Mitee-bite 25120 Double Stop Positioning Stop 880 Lb

Product Description

The MITEE-BITE 25120 is a raised-height double stop positioning stop from the Mitee-Bite Kopal Mini Clamp series, designed for precision workholding in machining and fixturing applications. Built from spring steel, it delivers 880 pounds (3,914.44 N) of clamping pressure at a jaw height of 0.3 inches (7.5mm). The double stop configuration provides repeatable part positioning, making it suitable for CNC milling setups and production fixtures where consistent part location is critical. Machinists and tooling engineers rely on this style of stop for high-repeatability workholding in tight-tolerance environments.

The 25120 is suited for use in precision machining environments, including CNC machining centers and manual milling setups. The raised-height design accommodates workpieces that require elevated stop engagement, and the compact form factor fits within the Kopal Mini Clamp system footprint. Typical applications include production fixture plates, tombstone setups, and modular tooling systems where repeatable part registration is required across multiple setups or shifts.

Key Features

• Double stop configuration for two-point part registration and repeatable positioning
• Raised height style accommodates elevated workpiece engagement
• 880 lb (3,914.44 N) clamping pressure for secure workholding under cutting loads
• 0.3 inch (7.5mm) jaw height suits low-profile fixture plates
• Spring steel construction provides durability and consistent clamp force
• Part of the Mitee-Bite Kopal Mini Clamp series for modular compatibility

Compatibility

Designed for use within the Mitee-Bite Kopal Mini Clamp series as stated by the manufacturer. Consult the Kopal Mini Clamp system documentation to confirm fixture plate and mounting hole compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling engineer familiar with workholding fixtures and precision clamping systems. Ensure the fixture plate and mounting hardware are rated for the clamping forces involved before assembly. Verify all clamp components are clean and free of chips or debris prior to seating the stop. Follow the machine tool builder and fixture manufacturer torque and setup guidelines applicable to the Kopal Mini Clamp system.
