Mitee-bite 24188 T-slot Toe Clamp 4000 Lb Steel

Product Description

The MITEE-BITE 24188 is a steel T-slot toe clamp designed for securing workpieces to machine table T-slots in milling, drilling, and machining operations. It delivers a holding force of 4000 pounds (17,792.89 N) and is engineered for use in 3/4 inch T-slots. Overall length is 1.94 inches with a 1.12 inch width and an overall height of 1.0 inch. The compact, low-profile body height of 0.62 inches keeps the clamp clear of cutting tool paths in tight setups. Machinist and CNC operators install this clamp as part of a workholding configuration on manual mills and CNC machining centers.

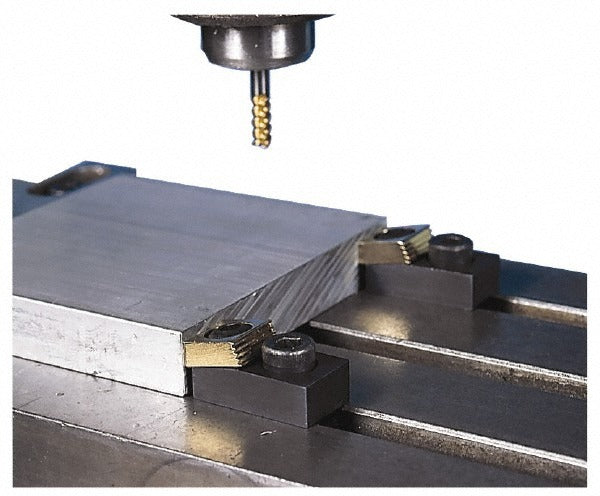

This toe clamp is suited for horizontal machine table T-slot applications in both manual machining and CNC environments. The jaw measures 1.0 inch wide by 0.38 inches high, providing a positive contact surface on the workpiece. It is a single-piece steel unit intended for production and job-shop workholding where a repeatable, rigid clamp position is required. Each package contains one clamp, making it easy to order the exact quantity needed for a fixturing job.

Key Features

• 4000 lb (17,792.89 N) holding force for secure workpiece retention
• Fits 3/4 inch machine table T-slots
• Low-profile 0.62 inch body height reduces interference with cutting tools
• 1.0 inch jaw width delivers broad contact area on the workpiece
• Steel construction for durability in machine shop environments
• Compact 1.94 inch overall length suits tight fixturing layouts

Compatibility

Designed for use with machine table T-slots sized at 3/4 inch, as found on standard manual mills and CNC machining center worktables.

Installation Notes

A licensed machinist or CNC operator installs this clamp as part of a workholding setup. Torque the clamp bolt to 65 ft-lb as specified. Ensure the machine table T-slot is clean and free of chips before seating the clamp. Power down and lock out the machine before adjusting or removing workholding hardware.
