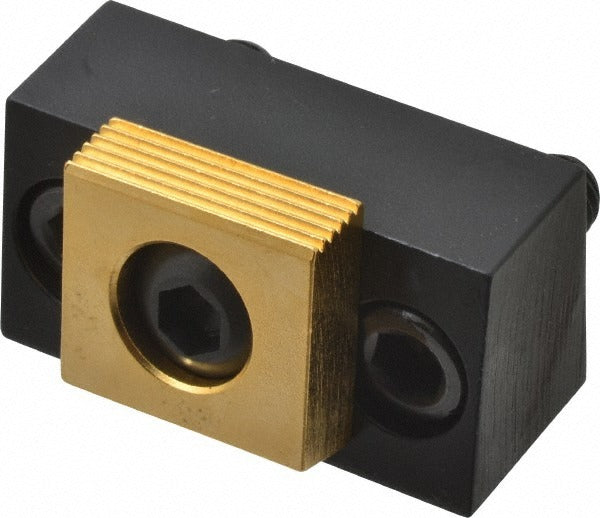

Mitee-bite 24110 Compact Screw Mount Toe Clamp Steel

Product Description

The MITEE-BITE 24110 is a compact screw mount toe clamp designed for precision workholding applications in machining and manufacturing environments. Built from steel with a serrated edge surface, this clamp delivers 6,000 pounds of holding force when torqued to 100 foot-pounds, making it well-suited for securing workpieces during milling, drilling, and fixture operations. At 1.5 inches wide and 0.99 inches high, the low-profile compact body fits tight setups where standard clamps would interfere with toolpaths or adjacent fixtures. Machining professionals and toolroom technicians rely on this style of toe clamp for repeatable, rigid workpiece retention on manual and CNC machine tables.

The 24110 is intended for use on milling machine tables, CNC machining centers, and fixture plates where T-slot or screw-mount clamping is required. The 1/2-13 screw thread size is a common standard that fits widely available socket head cap screws and T-slot hardware. The serrated clamping face bites into the workpiece edge to resist lateral movement under cutting loads. This clamp suits production environments and job shop settings where compact clamp height is critical to avoiding tool collision and maintaining clearance around the part.

Key Features

• 6,000 pounds holding force for secure, rigid workpiece retention under heavy cutting loads
• Serrated edge surface grips workpiece faces to resist lateral shifting
• Compact profile at 0.99 inches high minimizes interference with toolpaths and adjacent clamps
• 1/2-13 screw thread size compatible with standard T-slot hardware and socket head cap screws
• Steel construction provides durability in demanding machining environments
• 0.1-inch travel allows adjustment to accommodate slight workpiece size variation

Compatibility

Designed as an OEM-style screw mount toe clamp for use on milling machine tables, machining center fixtures, and tooling plates that accept 1/2-13 threaded fasteners.

Installation Notes

Toe clamps of this type are installed by machining technicians on machine tool tables or fixture plates. Power down and lock out the machine before positioning or adjusting clamps. Tighten the screw to the specified torque using a calibrated torque wrench and an appropriate socket head key. Verify that the serrated face is fully seated against the workpiece edge and that clamp position does not intrude into the tool cutting path before resuming operation.
