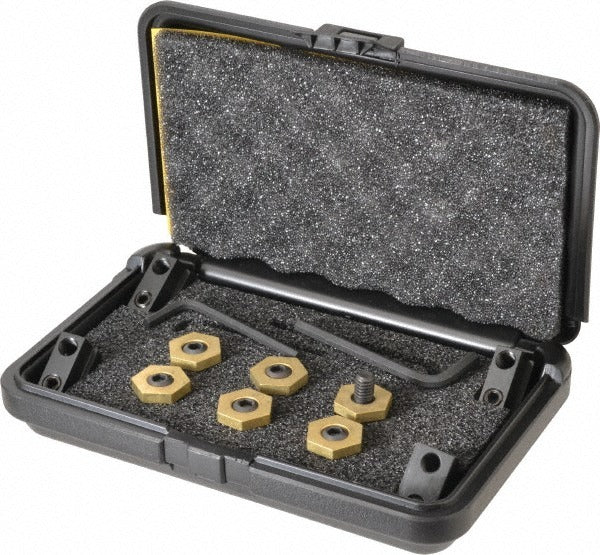

Mitee-bite 10641 T-slot Fixture Clamp Set 12 Pc Brass

Product Description

The MITEE-BITE 10641 is a 12-piece T-slot fixture clamp set designed for workholding applications on milling machines, machining centers, and other equipment with T-slotted tables. Built from brass, the set is used to secure workpieces or fixtures during cutting operations. The 5/16-18 stud thread and 7/16 inch T-slot sizing are standard dimensions suited to a wide range of machine tool tables. The step block width of 0.625 inches and T-slot nut width of 0.19 inches allow precise, low-profile clamping. This set is typically installed by machinists and tooling technicians in production and job shop environments.

The 10641 is intended for use on machine tables with 7/16 inch T-slots, including those found on vertical milling machines and fixture plates. The brass construction resists galling and provides reliable holding force without damaging precision ground table surfaces. The included T-nuts and fixture clamps are matched components, making this a self-contained setup kit for workholding configurations. It is well-suited for fixturing small to mid-size workpieces where compact, accurate clamping is required.

Key Features

• Brass construction resists galling and protects machine table surfaces
• 5/16-18 stud thread size compatible with standard T-slot hardware
• 7/16 inch T-slot sizing fits a wide range of milling machine tables
• 0.625 inch step block width enables low-profile, compact workholding
• Set includes 6 MITEE-BITE fixture clamps, 4 MITEE-BITE T-nuts, and 2 hex keys for a complete out-of-box setup
• 12-piece matched component set reduces sourcing and assembly time

Compatibility

Designed for machine tables and fixture plates with 7/16 inch T-slots and 5/16-18 stud thread hardware. Consult machine documentation to confirm T-slot dimensions before installation.

Installation Notes

Installation is performed by machinists or tooling technicians. Before placing or repositioning clamps, ensure the machine is powered down and all moving axes are locked or at rest. Use the included hex keys to tighten the stud hardware to a snug, even hold — do not over-tighten brass T-nuts, as the material can deform under excessive force. Verify clamp contact is flush and stable against the workpiece or fixture before initiating any cutting operation.
