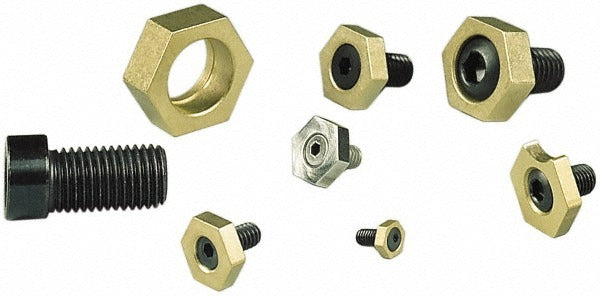

Mitee-bite 10592 Hex Clamp Washer 1-3/16 in Brass

Product Description

The MITEE-BITE 10592 is a brass hex clamp washer designed for use in clamping and workholding applications. The hexagonal washer shape provides positive engagement and resistance to rotation during tightening, making it well suited for fixture setups, machine tool mounting, and precision clamping assemblies. Measuring 1-3/16 inches across with an overall height of 1/2 inch, this washer is machined from brass, offering corrosion resistance and reliable performance in both ferrous and non-ferrous clamping environments. Machinists, toolroom technicians, and fixture builders are the typical installers of this component.

This hex clamp washer is intended for use in workholding and fixturing setups found in machine shops and manufacturing environments. Its compact hex profile allows for wrench engagement and consistent clamping force distribution across a mounted workpiece or fixture plate. The brass construction makes it appropriate for applications where galling or contamination from steel hardware is a concern.

Key Features

• Hexagonal washer shape provides wrench engagement and prevents rotation during clamping
• Brass construction offers corrosion resistance and non-galling contact surfaces
• 1-3/16 inch diameter suits standard workholding and fixture plate applications
• 1/2 inch overall height provides defined standoff and clamping geometry
• Compact single-piece design for straightforward integration into clamping assemblies

Compatibility

Designed as an OEM-style replacement or standard component for hex clamp washer positions in workholding fixtures and machine tool clamping setups.

Installation Notes

Installation is typically performed by machinists or toolroom technicians using standard hand tools or wrenches sized for the hex profile. Power down and de-energize any machine tool before servicing or reconfiguring clamping assemblies. Ensure mating surfaces are clean and free of chips or debris before seating the washer. Do not over-torque, as brass hardware has lower yield strength than steel equivalents.
