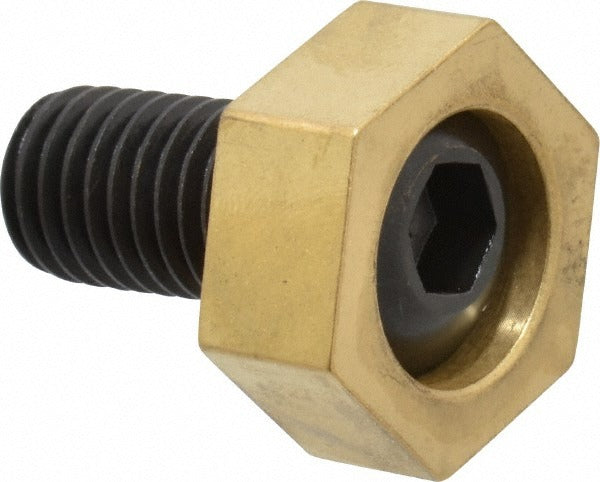

Mitee-bite 10210 Symmetrical Hex Clamp 1-3/16 in Brass 4 Pack

Product Description

The MITEE-BITE 10210 is a symmetrical hex clamp designed for secure workholding applications in machining and fixture setups. The clamp features a 1-3/16 inch brass hex head and a hardened steel stud with a 5/8-11 thread. It delivers 6,000 pounds of holding force at a rated torque of 100 foot-pounds, making it a reliable choice for high-load clamping operations. The 0.5 inch hex height and 1.125 inch thread length provide a low-profile, rigid grip. Each package contains 4 clamps. This product is installed and used by machinists and tooling professionals working with T-slot tables, fixture plates, and similar workholding systems.

The MITEE-BITE 10210 is suited for use on CNC machining centers, manual milling machines, and fixture plates where consistent, repeatable clamping force is required. The brass hex head resists galling against softer fixture materials, and the hardened steel stud maintains thread integrity under repeated high-torque cycling. This clamp is appropriate for both production and prototype setups where a low-profile hex clamp is needed to accommodate tight part geometries or close tool clearances.

Key Features

• 6,000 pound holding force per clamp for high-load workholding
• Brass hex head resists galling and corrosion on fixture surfaces
• Hardened steel stud maintains thread integrity under repeated use
• Symmetrical hex design allows repositioning without re-torquing from a specific orientation
• Low 0.5 inch hex height suits tight clearance setups
• Packaged as a set of 4 clamps

Compatibility

Designed for use with standard 5/8-11 threaded T-slot studs and fixture plate systems. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by machining professionals using standard hand or power torque tools. Apply torque evenly and do not exceed the rated 100 foot-pounds to avoid damaging the brass hex head or stud threads. Ensure the T-slot or fixture plate thread is clean and free of debris before installing the stud. Always secure the workpiece and verify clamp engagement before initiating any machining operation.
