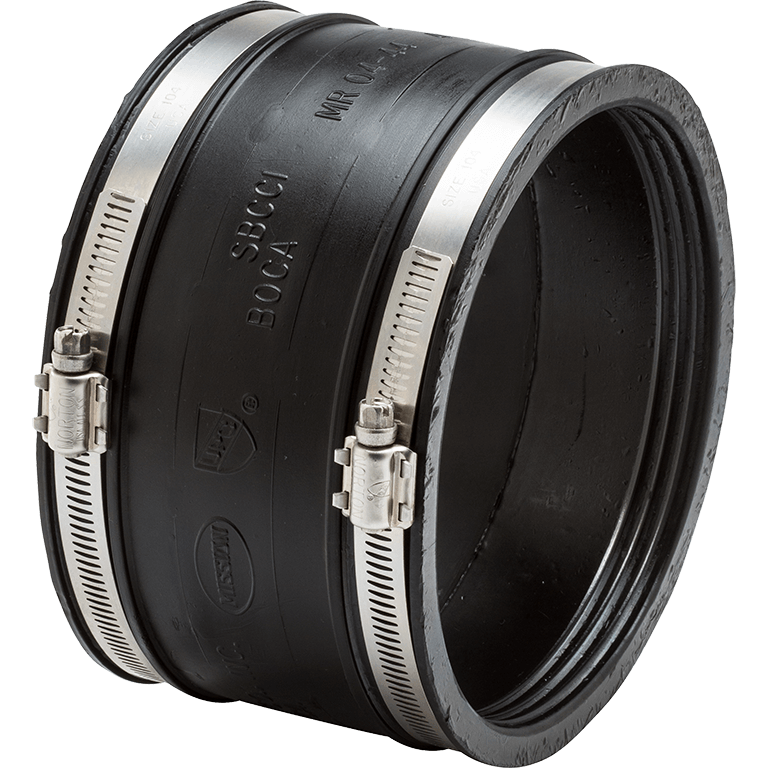

Mission Rubber MR56 1010 Calder Coupling 10 Inches

Product Description

The MISSION RUBBER MR56 1010 is a 10-inch Calder-style shielded coupling designed to join plastic or cast iron pipe to plastic or cast iron pipe in no-hub drain, waste, and vent (DWV) piping systems. This coupling uses a stainless steel shield and clamp band assembly to compress a rubber gasket against both pipe ends, creating a secure, leak-resistant joint without the need for solvent cement or lead-and-oakum packing. Licensed plumbers and journeymen installers use this type of coupling on new construction and repair work where a mechanical no-hub connection is required at the 10-inch diameter range.

This coupling is suited for underground and above-grade DWV installations in residential and commercial plumbing systems. The Calder coupling design is commonly specified where connecting dissimilar pipe materials is required, such as transitioning from older cast iron drain lines to modern PVC or ABS plastic pipe. It is appropriate for sanitary drain, storm drain, and vent applications within the pipe size it covers.

Key Features

• 10-inch diameter no-hub Calder coupling for plastic or cast iron to plastic or cast iron connections
• Mechanical compression design eliminates the need for solvent weld or caulked joints
• Accommodates transitions between cast iron and plastic pipe materials at the same nominal size
• Stainless steel shield and clamp band provide corrosion resistance and long-term joint integrity
• Suitable for DWV drain, waste, vent, and storm drain applications

Compatibility

Designed as an OEM-style mechanical coupling for 10-inch nominal no-hub plastic and cast iron DWV piping systems.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC or local plumbing code requirements. Before installation, shut off flow and depressurize or drain the line as appropriate. Pipe ends should be cut square, deburred, and cleaned before the gasket and shield are seated. Clamp torque should be set according to the coupling manufacturer specifications found on the product packaging or installation sheet.

Technical Specifications

• Pipe Diameter: 10 inches
• Connection Type: Plastic or Cast Iron x Plastic or Cast Iron
• Coupling Style: Calder No-Hub Shielded Coupling
• Weight: 4.97 pounds
• UPC: 70288705686

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: MR56 1010
