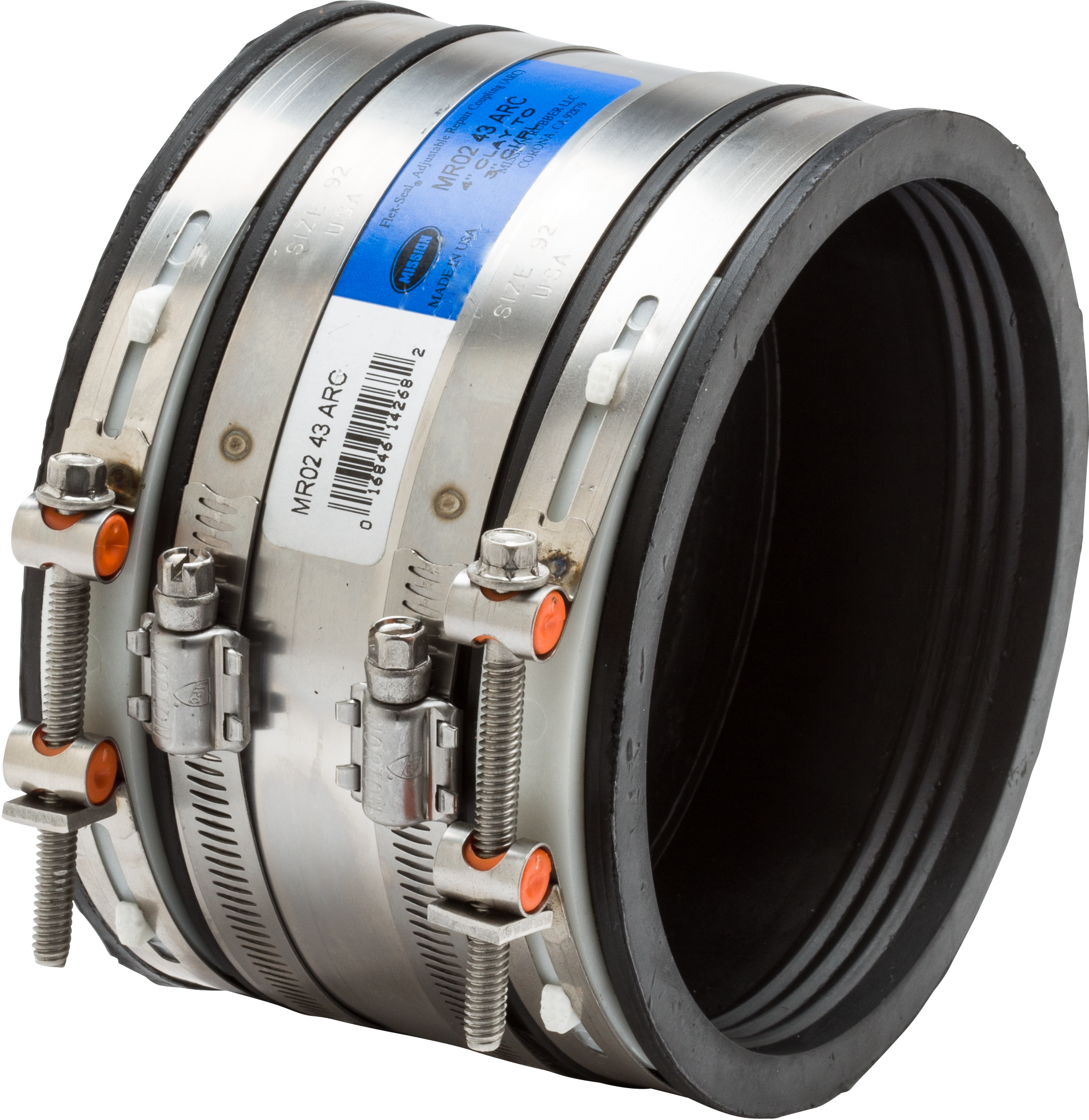

Mission Rubber MR02 44 ARC WD Flex-Seal® Arc Shielded Adjustable Sewer Repair Couplings

Product Description

The MISSION RUBBER MR02 44 ARC WD Flex-Seal® Arc Shielded Adjustable Sewer Repair Couplings connect 4" Clay pipe to 4" Cast Iron or Plastic pipe. These high-performance sewer repair couplings are for non-pressure, gravity flow applications only and are recommended for underground installations. They are easy to install and reuse.

• Easy to install and reuse.
• Increased band tension secures pipe ends, forming a watertight, root-proof seal, impervious to infiltration and exfiltration.
• Thick, stainless steel shield controls load bearing between coupling and pipe surface, opposing shear forces while maintaining pipe alignment.

Product Highlights

These couplings provide a watertight, root-proof seal, resisting corrosion and soil erosion, making them ideal for sewer repair applications.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: MR02 44 ARC WD
• Country of Origin: Domestic

Technical Specifications

• Clamps: Surgical Grade 316 Stainless Steel, Nut & Bolt (2 or 4)
• Shield: Heavy-Duty, 301 Series Stainless Steel (6/500" thick) with 300 Series Stainless Steel, Worm Drive Clamps (2)
• Gasket: Molded, One-Piece, Elastomeric Sealing Gasket
• Connects: 4" CL to 4" CI, PL
• A-MIN (IN): 5
• A-MAX (IN): 5.4
• B-MIN (IN): 4.21
• B-MAX (IN): 4.5
• C-WIDTH (IN): 4
• ASTM: ASTM A-240, ASTM A-240M, ASTM C-1173, ASTM C-1173-06, ASTM C-425, ASTM D-1149, ASTM D-2240, ASTM D-395, ASTM D-412, ASTM D-471, ASTM D-573
• Collection: Flex-Seal MR02 ARC Series
• End Connection 1: Clamp
• End Connection 2: Clamp
• End Connections: Clamp
• FM Approved: No
• Fitting Size 1: 4
• Fitting Size 2: 4
• Fitting Sizes: 4 in
• Fitting Type: Coupling, Straight
• Length: 1-22/25
• Material: Cast Iron, Clay, Rubber, Stainless Steel
• Material Type: 301, 316, Elastomer
• NSF Certified: No
• Origin: Domestic
• UPC: 016846142507
• Recommended Tools: Seekonk Torque Wrench - Pre-Set 60 in/lbs. with 5/16" hex head screw
