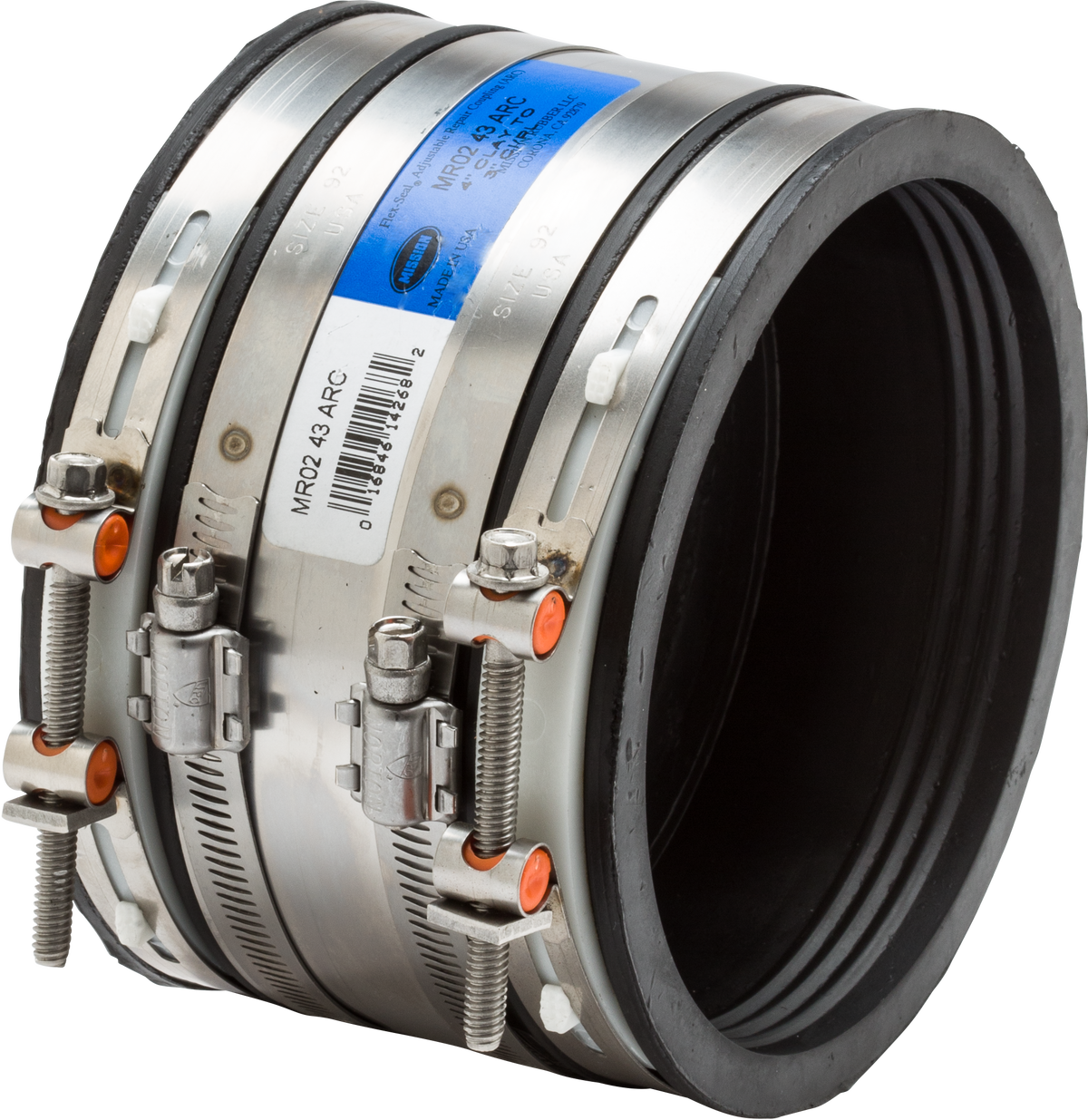

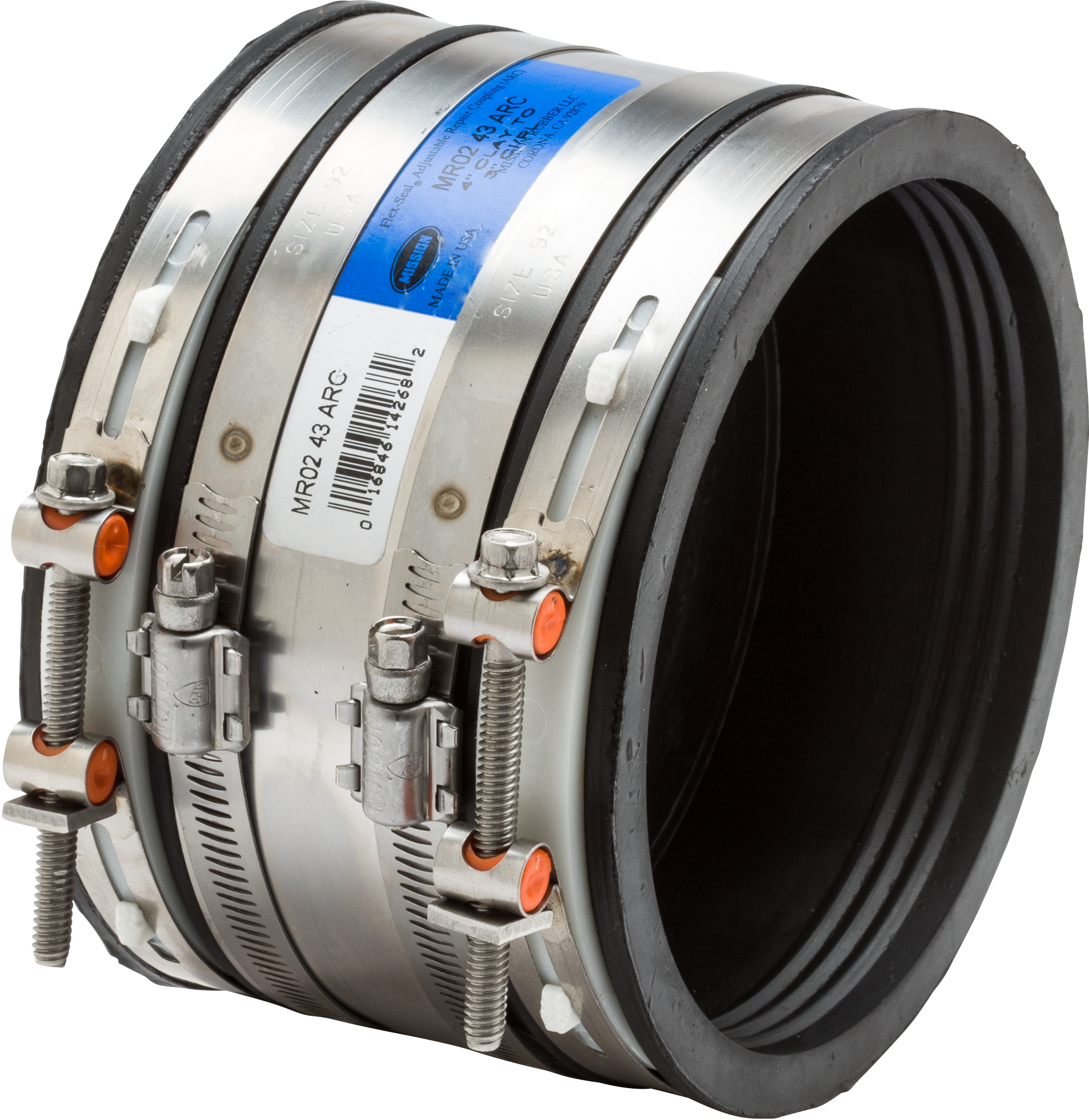

Mission Rubber MR01-86-ARC Flex-Seal Arc Shielded Adjustable Sewer Repair Couplings

Product Description

MISSION RUBBER MR01-86-ARC Flex-Seal Arc Shielded Adjustable Sewer Repair Couplings connect Clay pipe to Clay pipe. These shielded, high performance sewer repair couplings are for non-pressure, gravity flow applications only and are recommended for underground installations. They are easy to install and reuse.

• Easy to install and reuse.
• Increased band tension secures pipe ends, forming a watertight, root-proof seal, impervious to infiltration and exfiltration.
• Thick, stainless steel shield controls load bearing between coupling and pipe surface, opposing shear forces while maintaining pipe alignment.

Product Highlights

The couplings provide resistance to heavy earth loads, shear forces, and deflection. They are suitable for connecting similar and dissimilar pipe materials.

Product Information

Standard Information

• Brand: MISSION RUBBER
• Manufacturer Part Number: MR01-86-ARC

Technical Specifications

• Clamps: Surgical Grade 316 Stainless Steel, Nut & Bolt (2 or 4)
• Shield: Heavy-Duty, 301 Series Stainless Steel ( 6 / 500 " thick) with 300 Series Stainless Steel, Worm Drive Clamps (2)
• Gasket: Molded, One-piece, Elastomeric Sealing Gasket
• ASTM Standards: ASTM A240/A240M-06, ASTM C425-04, ASTM C1173-06
• CSA Standard: CSA CLASS 7021-02 (B602)
• IAPMO: IAPMO FILE 4224 LISTED
• ISO: ISO 9001:2008
• Brand: MISSION RUBBER
• MPN: MR01-86-ARC
